RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU)

RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU)

RAP-B-202-AP-MAG-1-W2MU

$119.00
$119.00
Tax included.

Not what you need? See all RAM® Products here.

Features

  • Wireless charger and form-fit ball adapter compatible with any RAM® B size ball and socket components
  • 15W Qi2 fast charging for efficient power delivery
  • Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Tech Specs

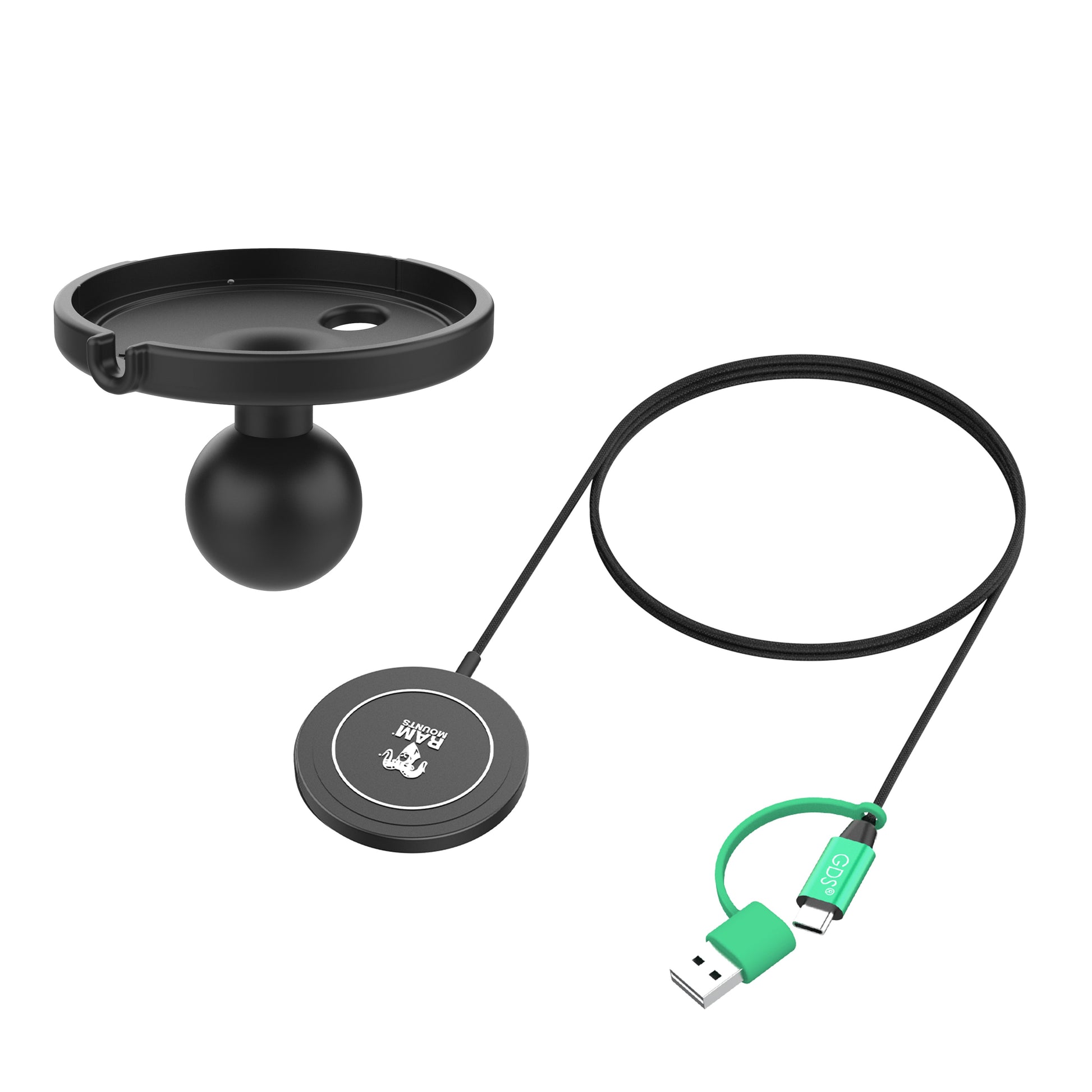

  • Hardware Included:
    • (1) Ball Adapter
    • (1) RAM® Qi2 Wireless Charging Puck
  • Ball Size: B Size (1")
  • Weight Capacity:
    • Standard Use: 2 lbs
    • Heavy-Duty Use: 1 lb
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Power Specifications:
    • Operating Frequency: 360KHZ
    • Stand-by Consumption ~ 0.008A / 8mA @5VDC
    • 80% Wireless Power Transfer Efficiency or Greater
    • Supports USB 2.0 BC1.2 Power Supply (5V)
    • Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
  • Input Voltage:
    • USB 5V @ 3A
    • QC2.0 9V @ 2.22A
    • USB PD 2.0 5-15V @ 2A
  • Power Output:
    • BPP - 5W
    • EPP - 7.5W
    • MPP - 15W

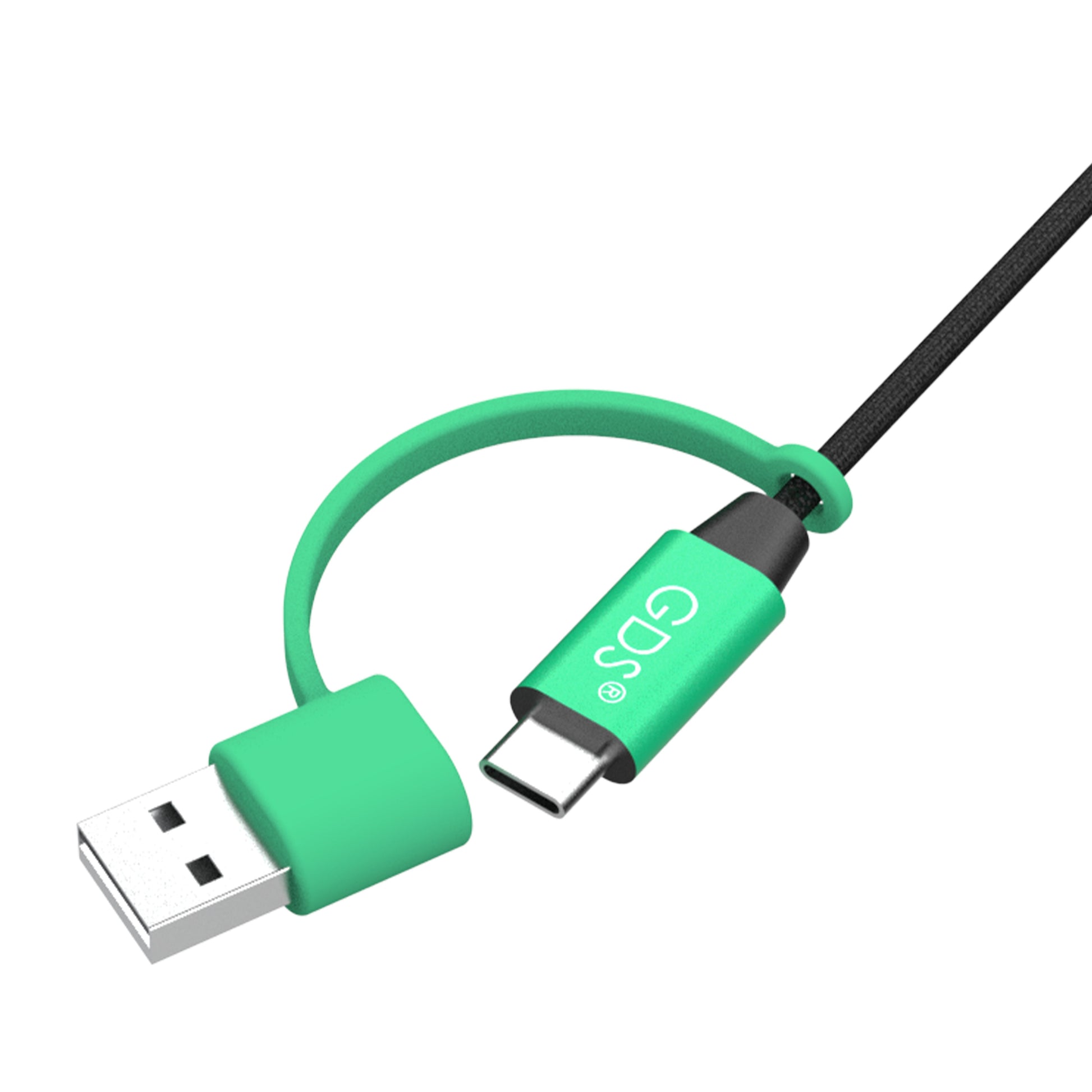

  • Output Connector: USB Type-C Male with USB-A Adapter
  • Output Cable Length: 1 Meter
  • Operating Temperature: 0°C to +40°C
  • Storage Temperature: -20°C to +80°C
  • Regulatory:
    • Over Current Protection
    • Short circuit Protection
    • Over Temperature Protection
    • RoHS Compliance
    • WEEE Compliance
  • Certifications:
    • IP67
    • SAE J1455
    • FCC Certification
    • CE Certification
    • E-Mark Certification
    • RCM Certification
  • Weight: 0.15 lb
  • Additional Information: The included wireless charger will support up to 8mm charging distance between puck and device.

Package Contents

  • 1 x RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU)
View full details

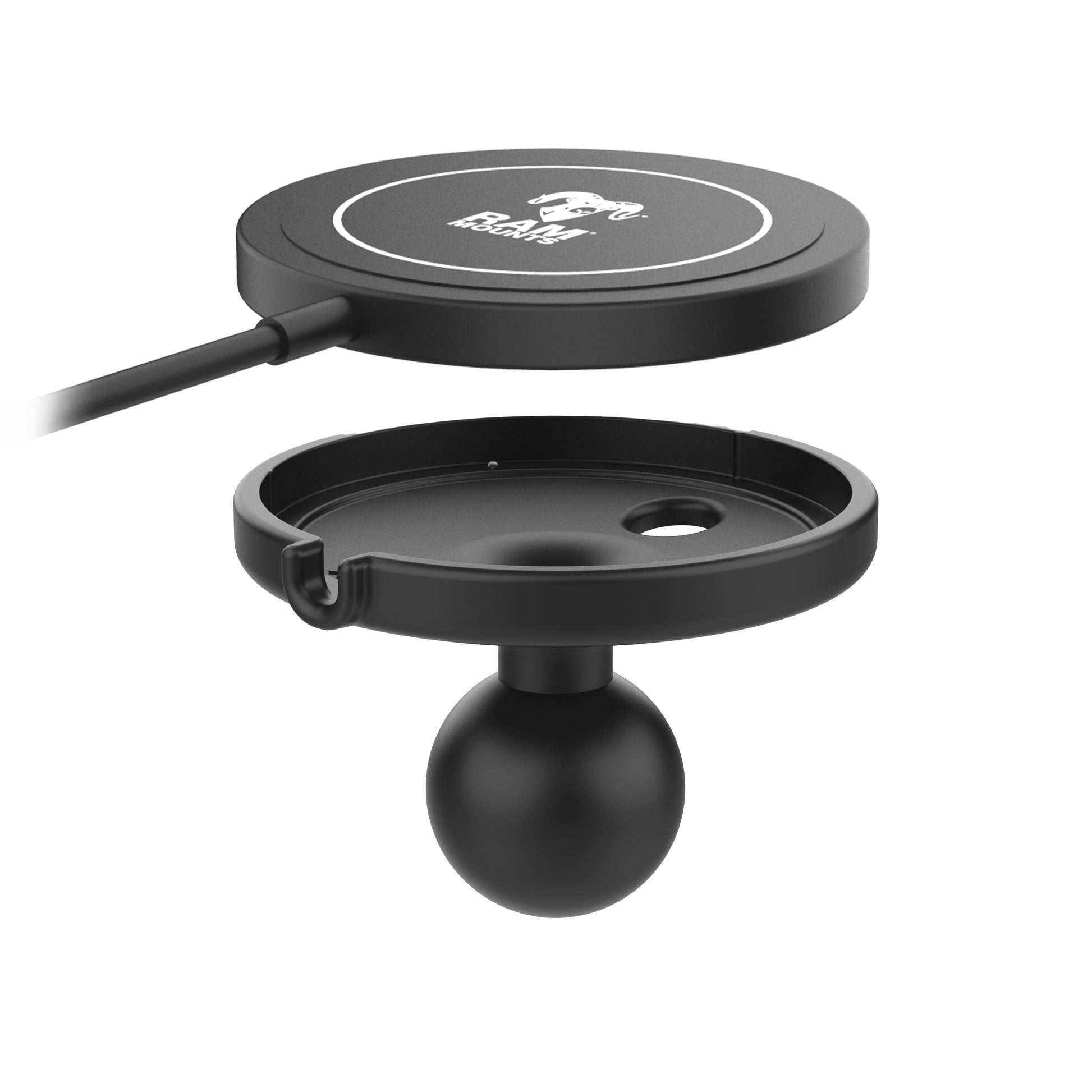

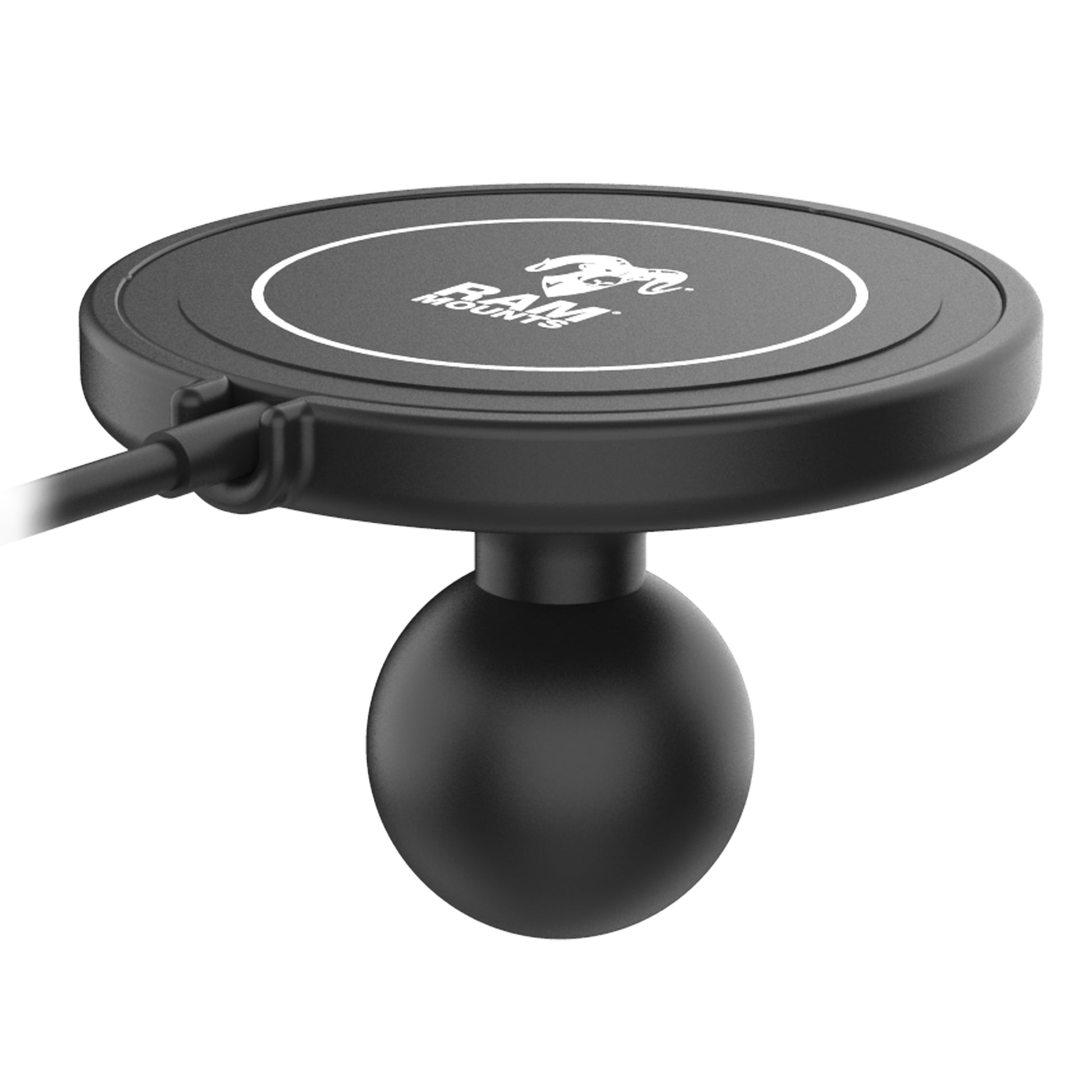

The RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU) makes it easy to add wireless charging to your existing RAM® Mount setup - or build a custom one from scratch. The ball adapter securely holds the Qi2 15W Wireless Charger, giving your iPhone 12, 13, 14, 15, 16 (Plus, Pro, Pro Max, and later) a snap-on magnetic connection for effortless MagSafe® charging. Compatible with RAM® B size socket arms, this bundle gives you the flexibility to mount your phone in virtually any vehicle location with the right base. A simple, reliable way to keep your device powered while you're on the move.
