RAM® X-Grip® 12"-13" Tablet Mount with No-Drill™ Universal Base (RAM-VB-196-UN11)
RAM® X-Grip® 12"-13" Tablet Mount with No-Drill™ Universal Base (RAM-VB-196-UN11)
RAM-VB-196-UN11
Not what you need? See all RAM® Products here.
Features
Features
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" - 13" tablets
- RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

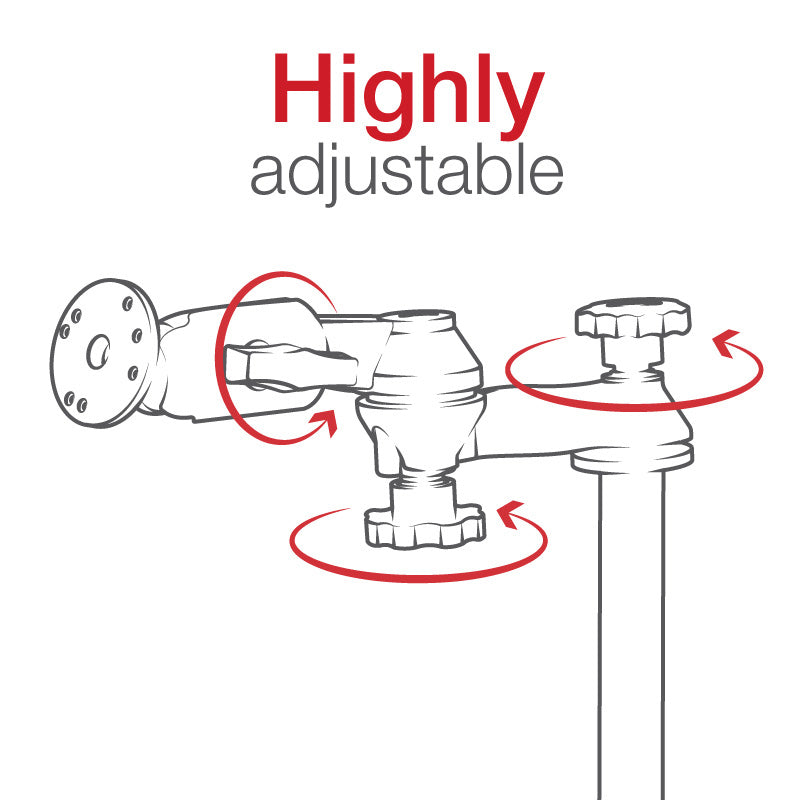

- Dual articulating swing arm allows for ideal device placement
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Hardware Included:
- Assembly Hardware
- Stabilizer Foot

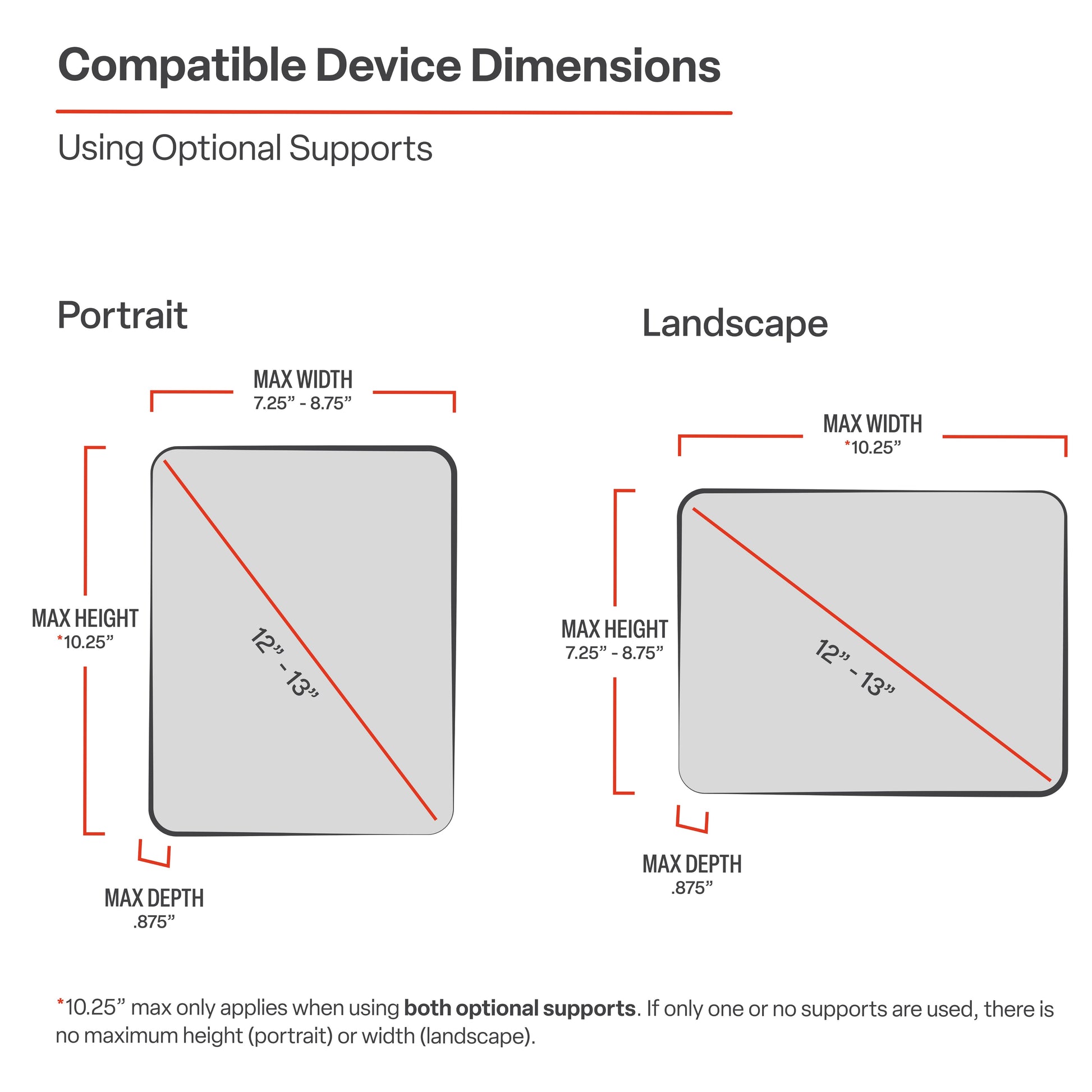

- Holder Dimensions:

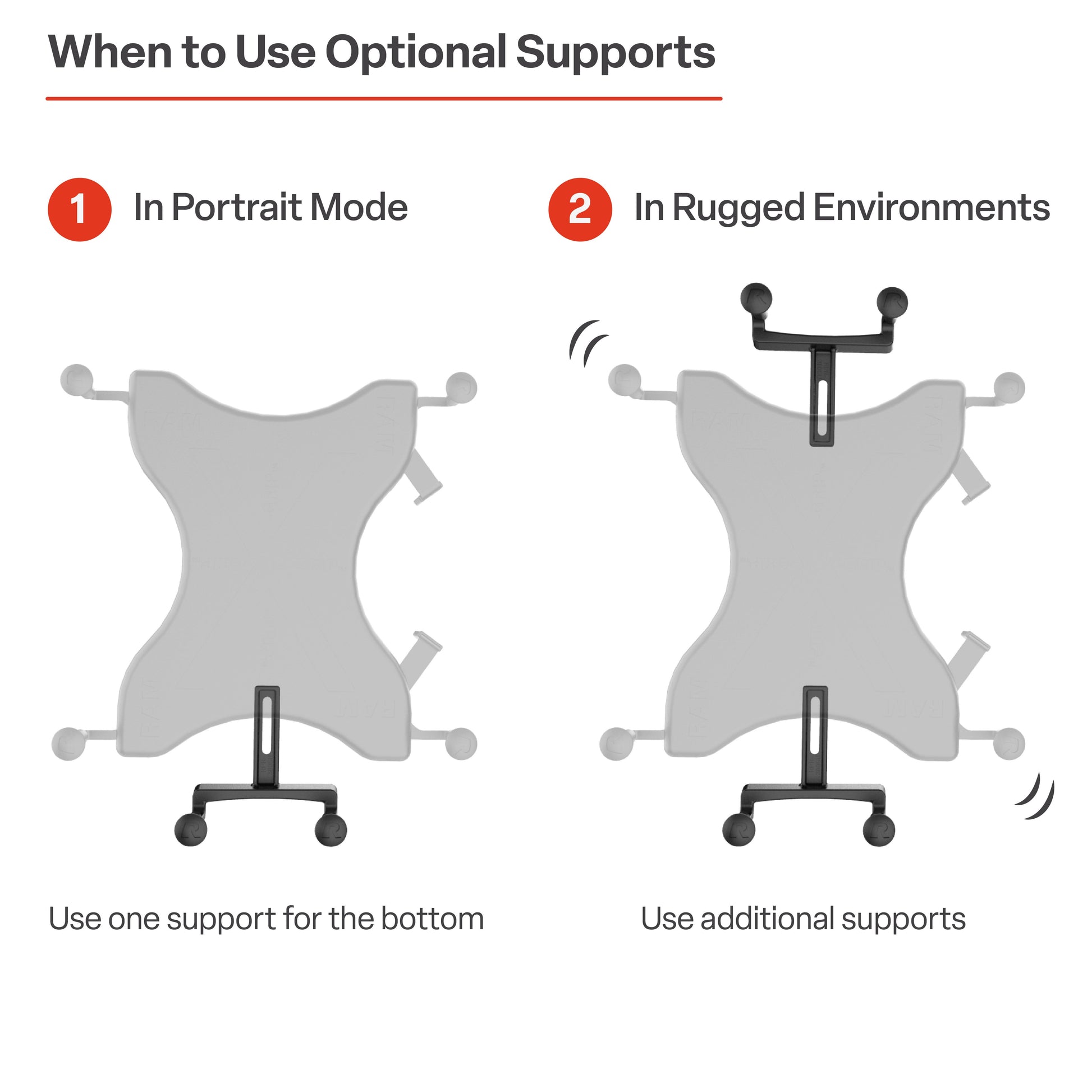

- Max Height: 10.25" (using optional supports)
- Width Range: 7.25" - 8.75"
- Max Depth: .875"
- Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
- Seat Bolt Distance: 9"-18.875" center to center
- Ball Size: C Size (1.5")
- Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
- Materials:
- Powder coated steel
- Marine grade-aluminum
- High strength composite
- Packaging Type: Box
- Weight: 12.18 lb
- Additional Information:
- Vehicles In This Compatibility List Have Been Tested And Confirmed With This Base. For All Other Vehicles, To Determine Fitment Please Review The Steps In This Document:
- Universal Vehicle Laptop Mount Compatibility Guide
- Depending on your vehicle, some installations may limit the adjustability of the passenger seat.
Package Contents
Package Contents
- 1 x RAM® X-Grip® 12"-13" Tablet Mount with No-Drill™ Universal Base (RAM-VB-196-UN11)
This vehicle bundle consists of the RAM® No-Drill™ mounting system and the RAM® X-Grip® universal holder for 12" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12"� to 18"�. Dual swing arms provide articulation and 12"� of reach for passenger and driver access to the mounted device. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device - even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM® X-Grip® holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.
