RAM® Vertical Drill-Down Laptop Mount (RAM-VB-181-SW3)
RAM® Vertical Drill-Down Laptop Mount (RAM-VB-181-SW3)
RAM-VB-181-SW3
Not what you need? See all RAM® Products here.
Features
Features
- Custom laptop vehicle mount installs directly to flat, vertical surface; drilling required
- Dual articulating swing arm provides a high-level of adjustability
- Universal laptop tray accommodates most laptops
- Made of powder-coated steel and marine-grade aluminum
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Hardware Included:
- Assembly Hardware

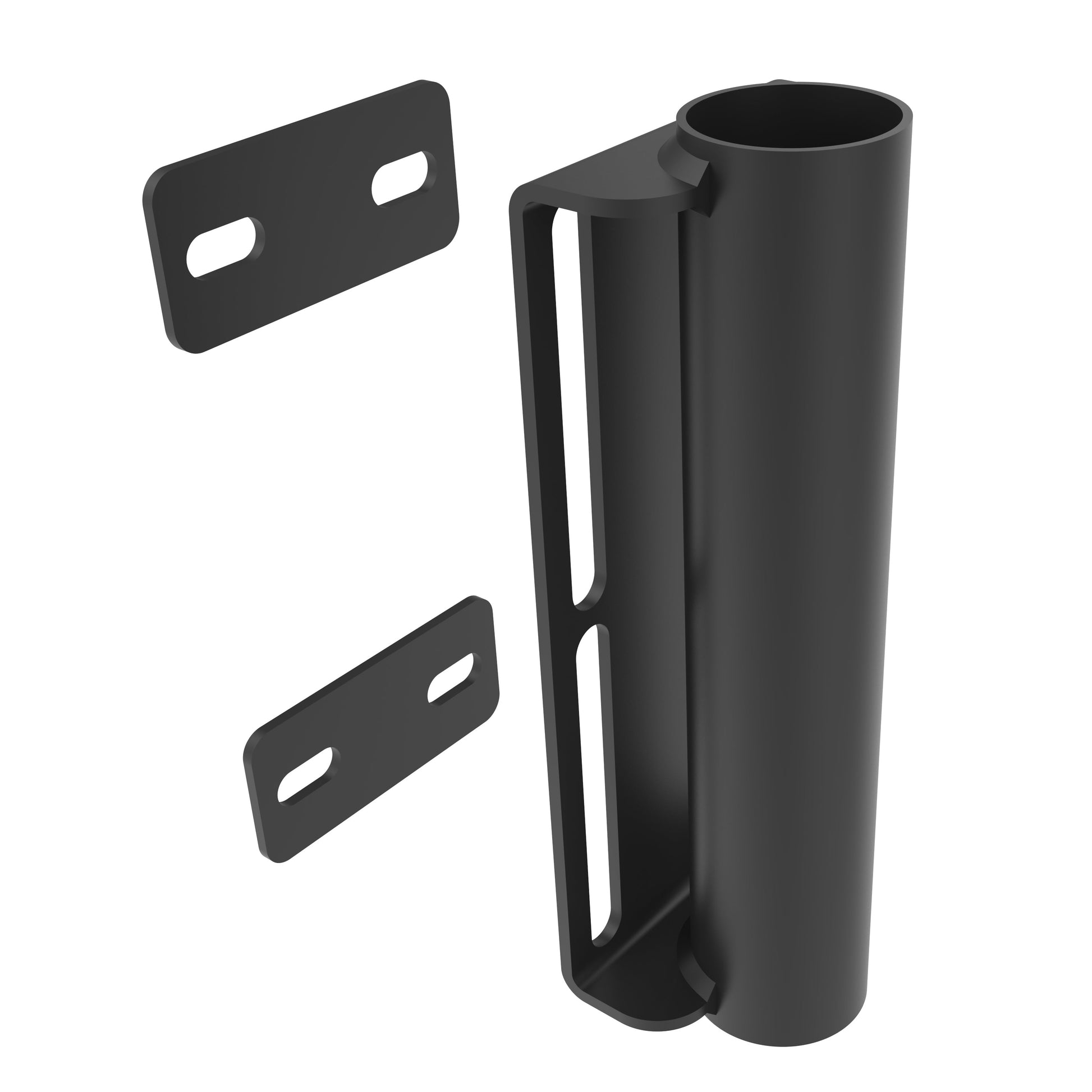

- (2) Backing Plates
- (4) 1/4"-20 x 1" Hex Bolts
- (4) 1/4"-20 Hex Nuts
- (8) 1/4" Flat Washers
- (4) 1/4" Lock Washers
- (2) #10-24 x 3/4" Machine Screws
- (2) #10 Fender Washers
- (1) 1/4"20 x 3/4" Machine Screw
- Tray Dimensions:
- Width Range: 10" - 15.25"
- Side Arm Clamp Height: 0" - 1.875"
- Depth Range: 7.625" - 10.625"
- Tray Thickness: 1.26"
- Hole Pattern: See Drawing
- Ball Size: C Size (1.5")
- Materials:
- Powder coated steel
- Marine grade-aluminum
- High strength composite
- Packaging Type: Box
- Weight: 10.23 lb
Package Contents
Package Contents
- 1 x RAM® Vertical Drill-Down Laptop Mount (RAM-VB-181-SW3)

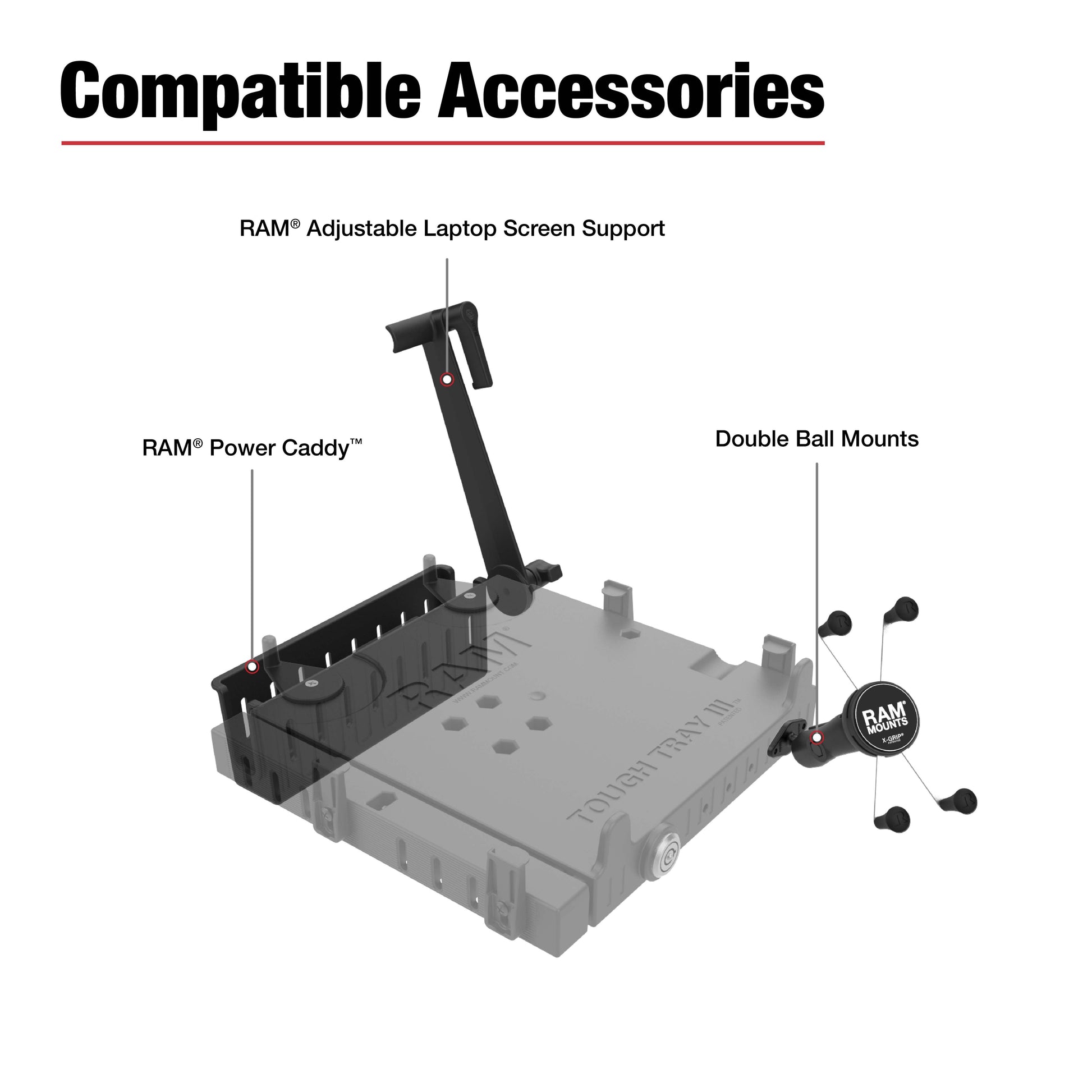

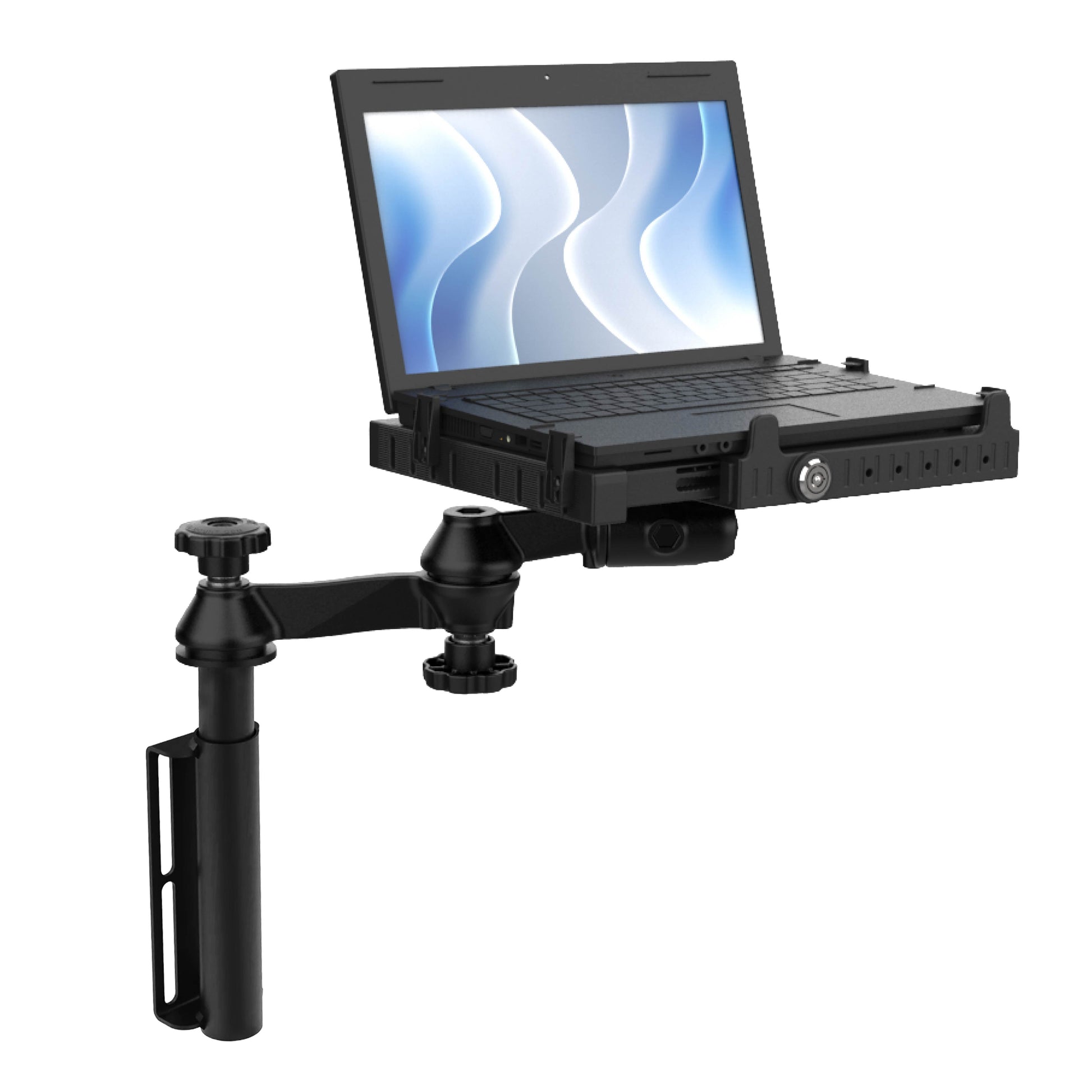

The RAM® Vertical Drill-Down Laptop Mount (RAM-VB-181-SW3) can be installed into any vehicle with a flat, vertical surface or directly to the RAM® Tough-Box™ console. This laptop mounting kits is telescoping, allowing users to adjust the height. Dual swing arms provide articulation and 12"� of reach for passenger or driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners.
