RAM® Tough-Mag™ 48MM 4-Point Pivoting Magnetic Mounting Base (RAM-MAG48-4S-PIV1U)
RAM® Tough-Mag™ 48MM 4-Point Pivoting Magnetic Mounting Base (RAM-MAG48-4S-PIV1U)
RAM-MAG48-4S-PIV1U
Not what you need? See all RAM® Products here.
Features
Features
- Four-point aluminum plate with 2 sets of 4 rubber coated external magnets for attaching to windows up to 6mm in thickness

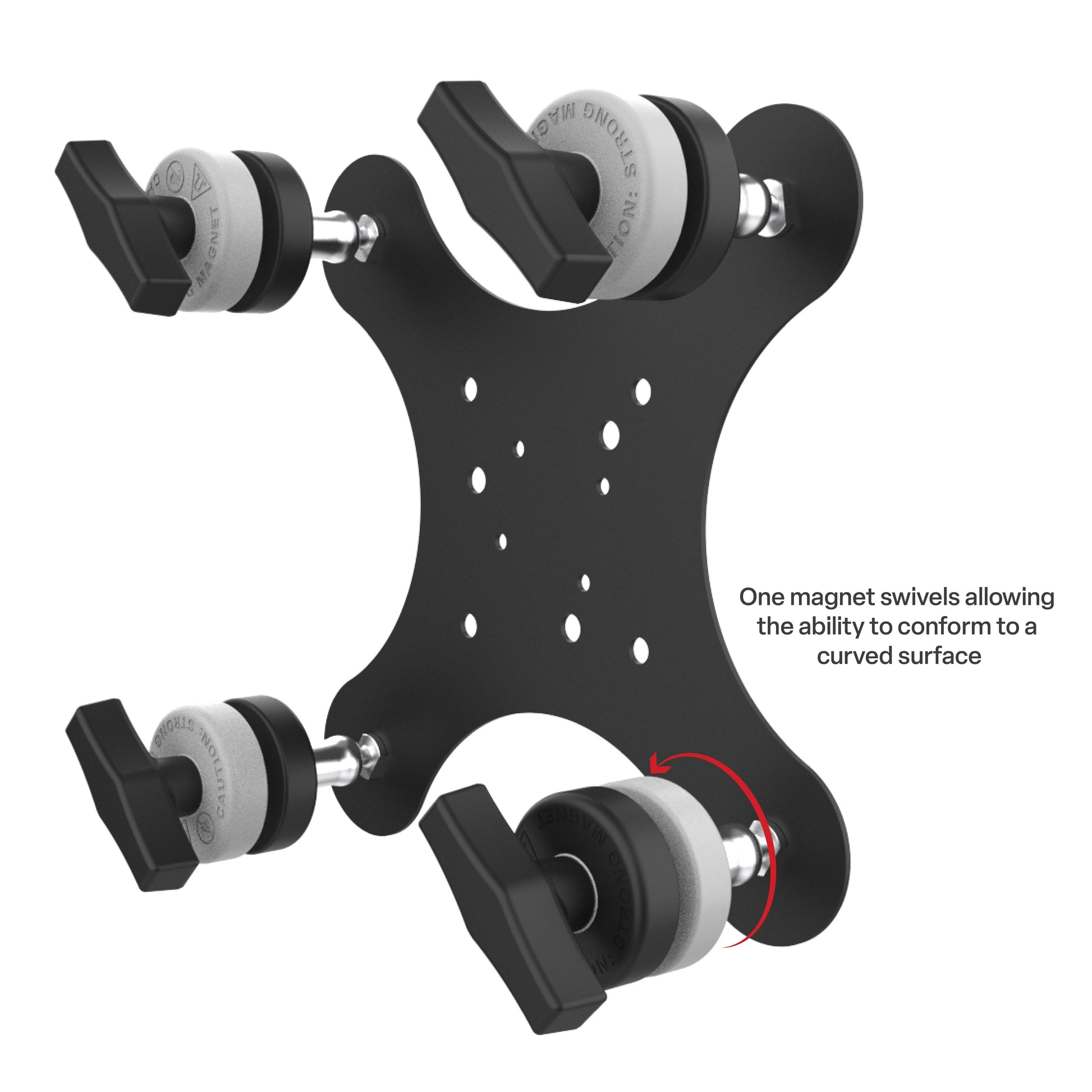

- Single corner with pivoting hardware allows base to confirm to a curved surface

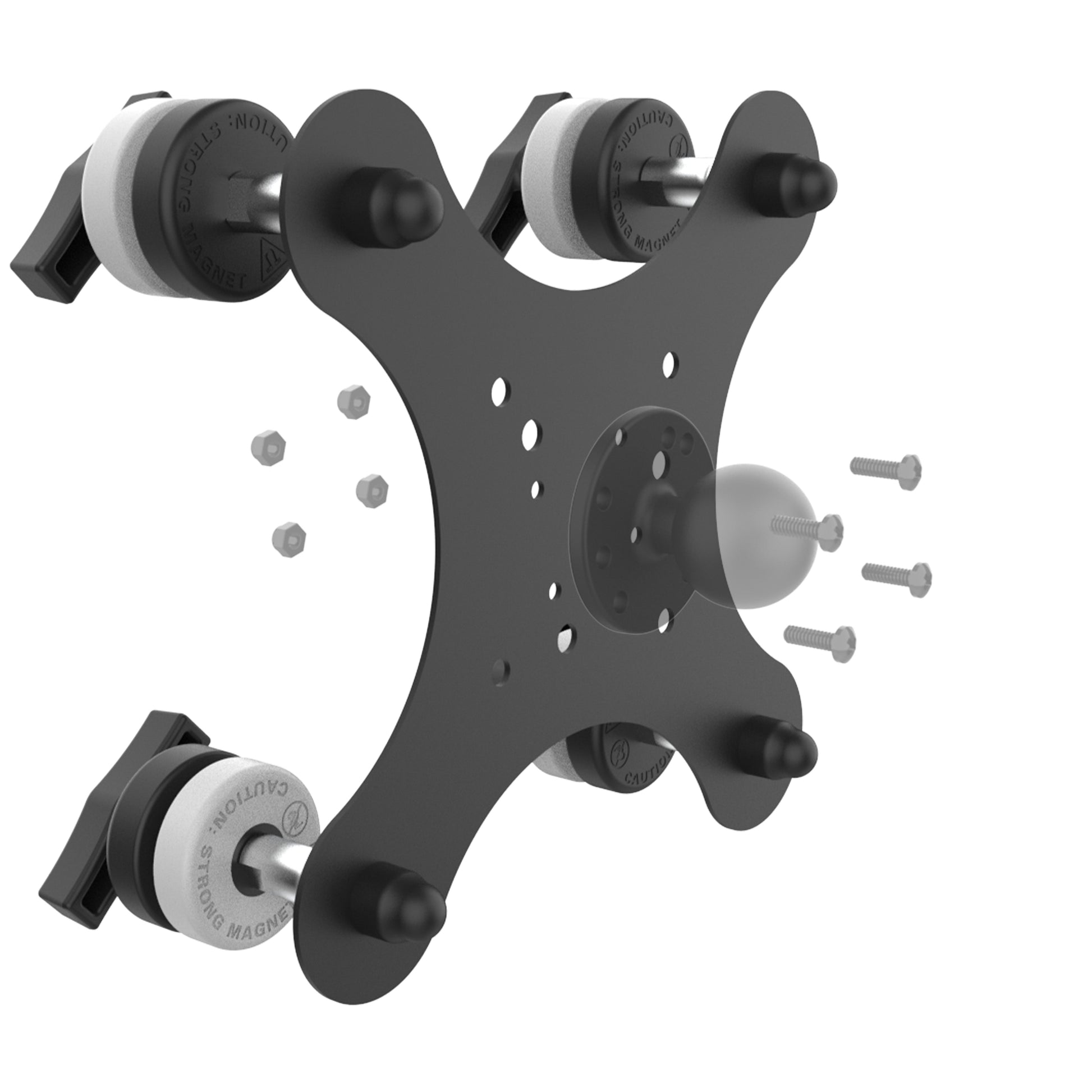

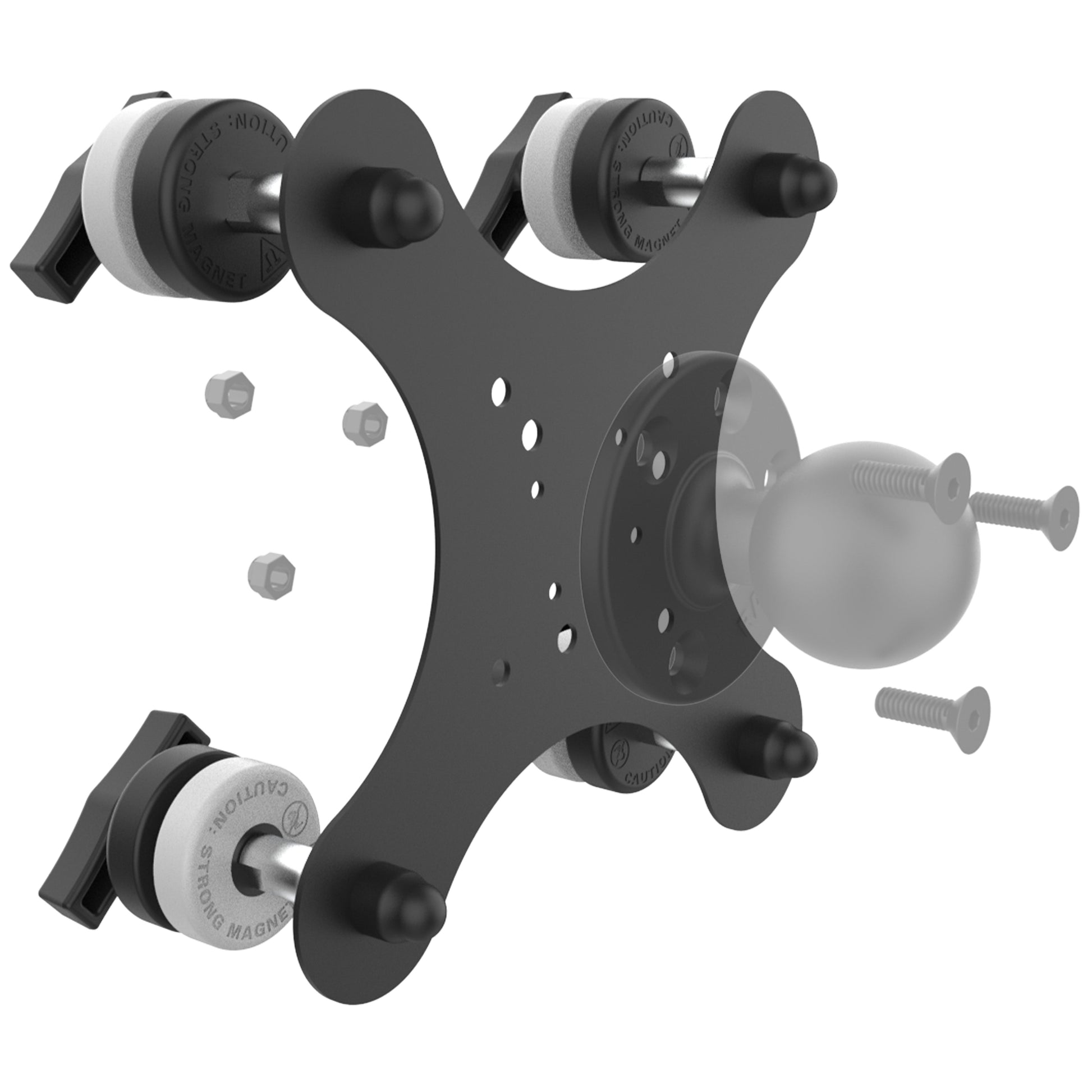

- 4-hole AMPS and VESA patterns for attaching C or D size RAM® drill-down ball bases
- External magnets include handles for ease of install
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Hardware Included:
- Assembly Hardware
- (4) #10-24 x 5/8" Machine Screws
- (4) #10-24 Nylock Nuts
- (3) 5/16"-18 x 1" Machine Screws
- (3) 5/16" Nylock Nuts
- Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 75 x 75mm VESA
- Packaging Type: Poly Bag
- Weight: 4.94 lb
Package Contents
Package Contents

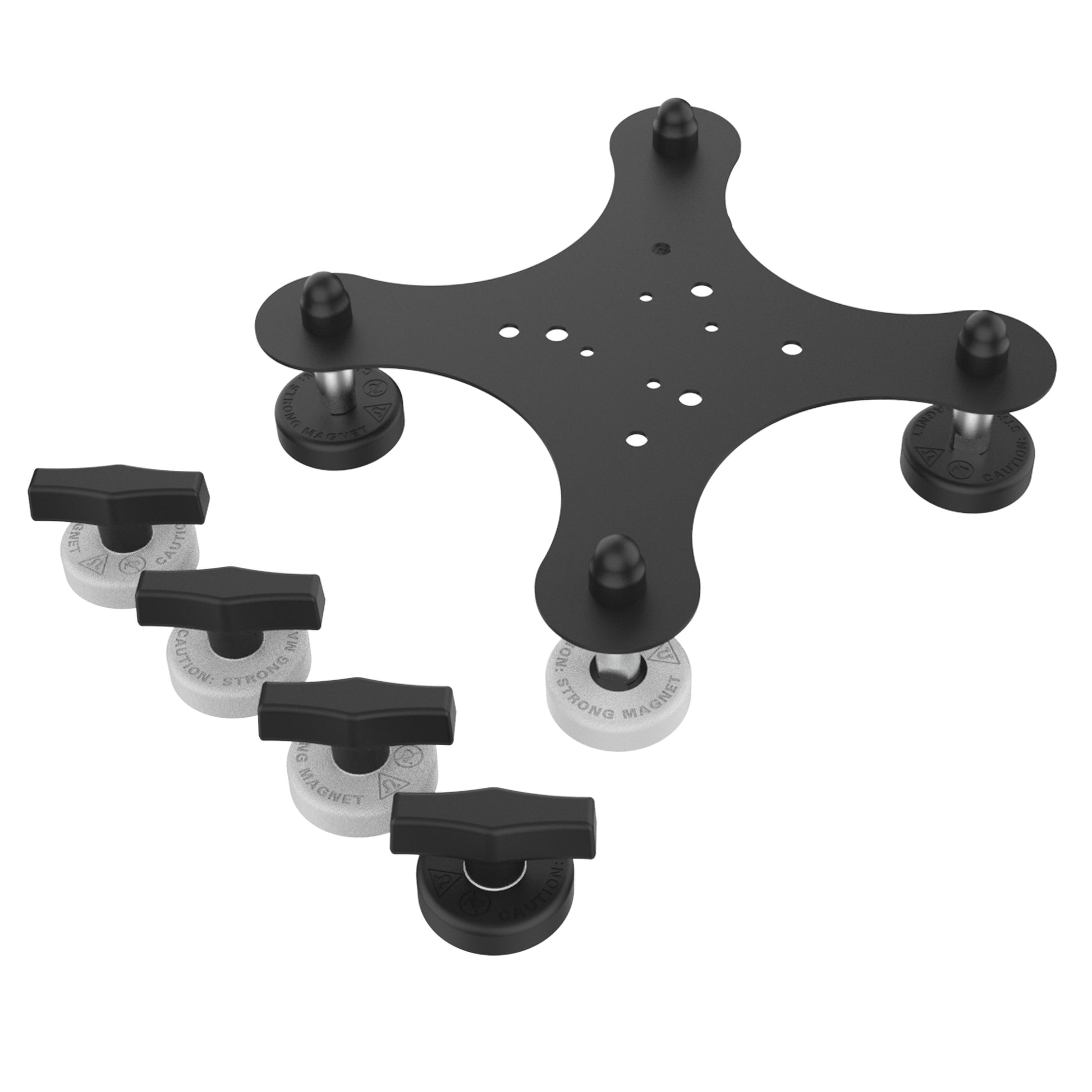

- 1 x RAM® Tough-Mag™ 48MM 4-Point Pivoting Magnetic Mounting Base (RAM-MAG48-4S-PIV1U)

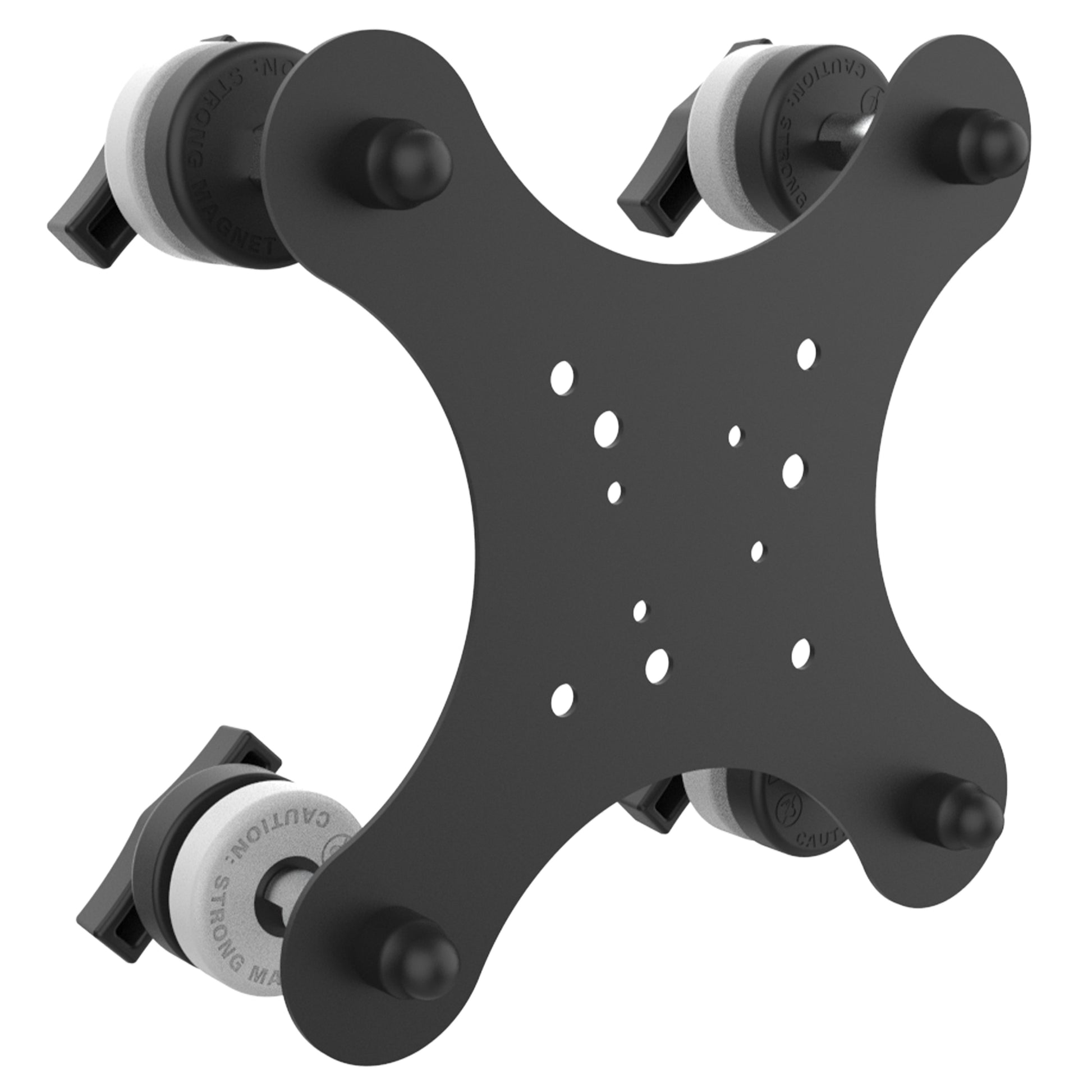

The RAM® Tough-Mag™ 48MM 4-Point Pivoting Magnetic Mounting Base (RAM-MAG48-4S-PIV1U) is a versatile mounting solution designed for flat glass or metal surfaces such as vehicle windows, windshields, or other sturdy panels. This aluminum plate features four external 48mm magnets, three fixed and one pivoting corner magnet, for added flexibility when positioning and securing the base. The plate includes pre-drilled 4-hole AMPS and VESA patterns, allowing easy attachment of a C or D size drill-down ball base. Each rubber-coated magnet prevents scratches, reduces harsh magnetic pull, and includes a handle for quick installation and removal. The pivoting corner ensures easier alignment on curved or uneven surfaces while maintaining a rock-solid hold. Compatible with any flat surface up to 6mm thick, this magnetic mounting base provides strength, adjustability, and convenience for demanding applications.
