RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U)
RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U)
RAM-MAG48-3U
Regular price
$808.00
Regular price
Sale price
$808.00
Unit price
per
Tax included.
Not what you need? See all RAM® Products here.
Features
Features
- Three-point aluminum plate with 2 sets of 3 rubber coated external magnets for attaching to windows up to 6mm in thickness
- 4-hole AMPS patterns for attaching C RAM® drill-down ball bases
- External magnets include handles for ease of install
- Backed by a lifetime warranty
Tech Specs
Tech Specs

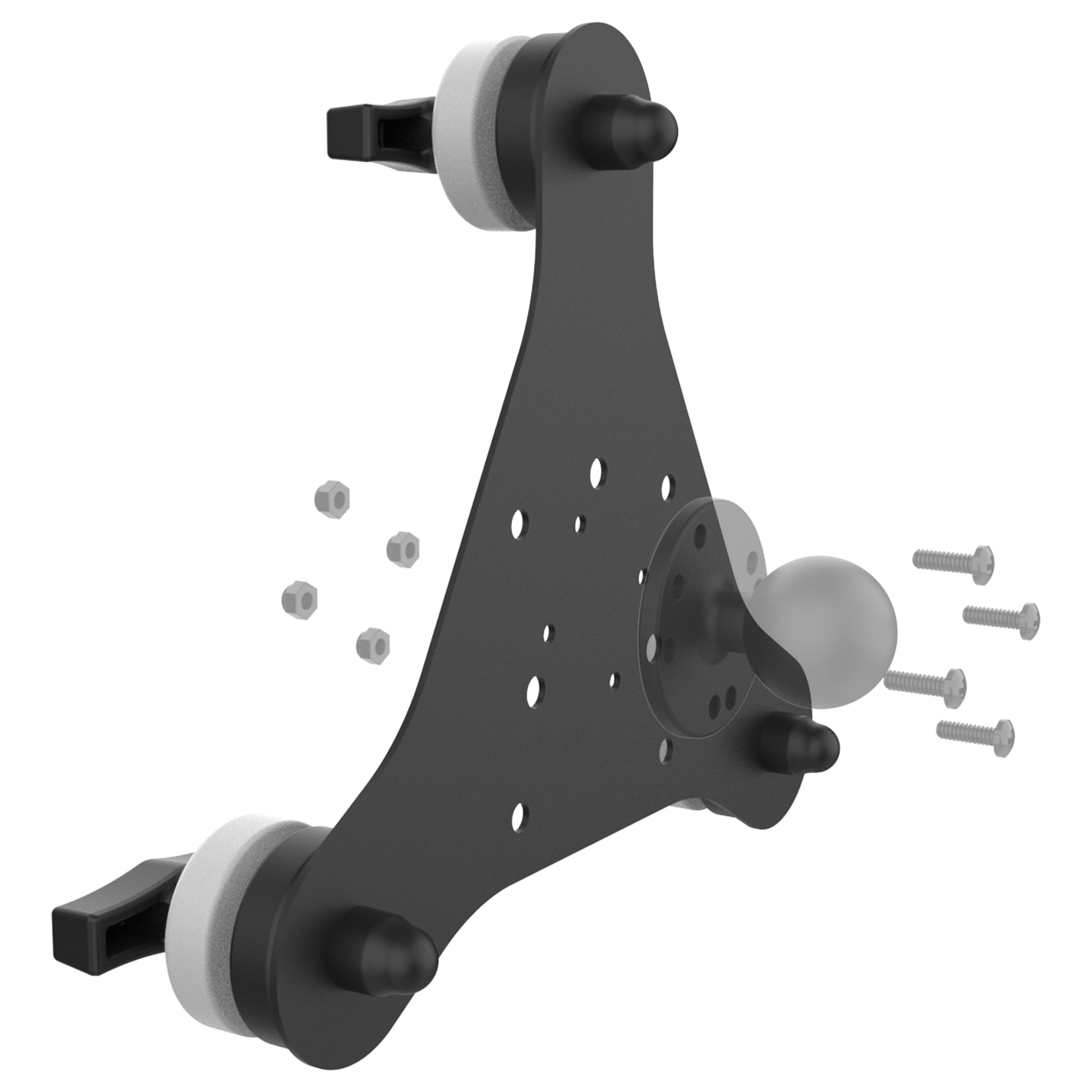

- Hardware Included:
- Assembly Hardware
- (4) #10-24 x 5/8" Machine Screws
- (4) #10-24 Nylock Nuts
- (3) 5/16"-18 x 1" Machine Screws
- (3) 5/16" Nylock Nuts
- Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 75 x 75mm VESA
- Packaging Type: Poly Bag
- Weight: 3.64 lb
Package Contents
Package Contents
- 1 x RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U)

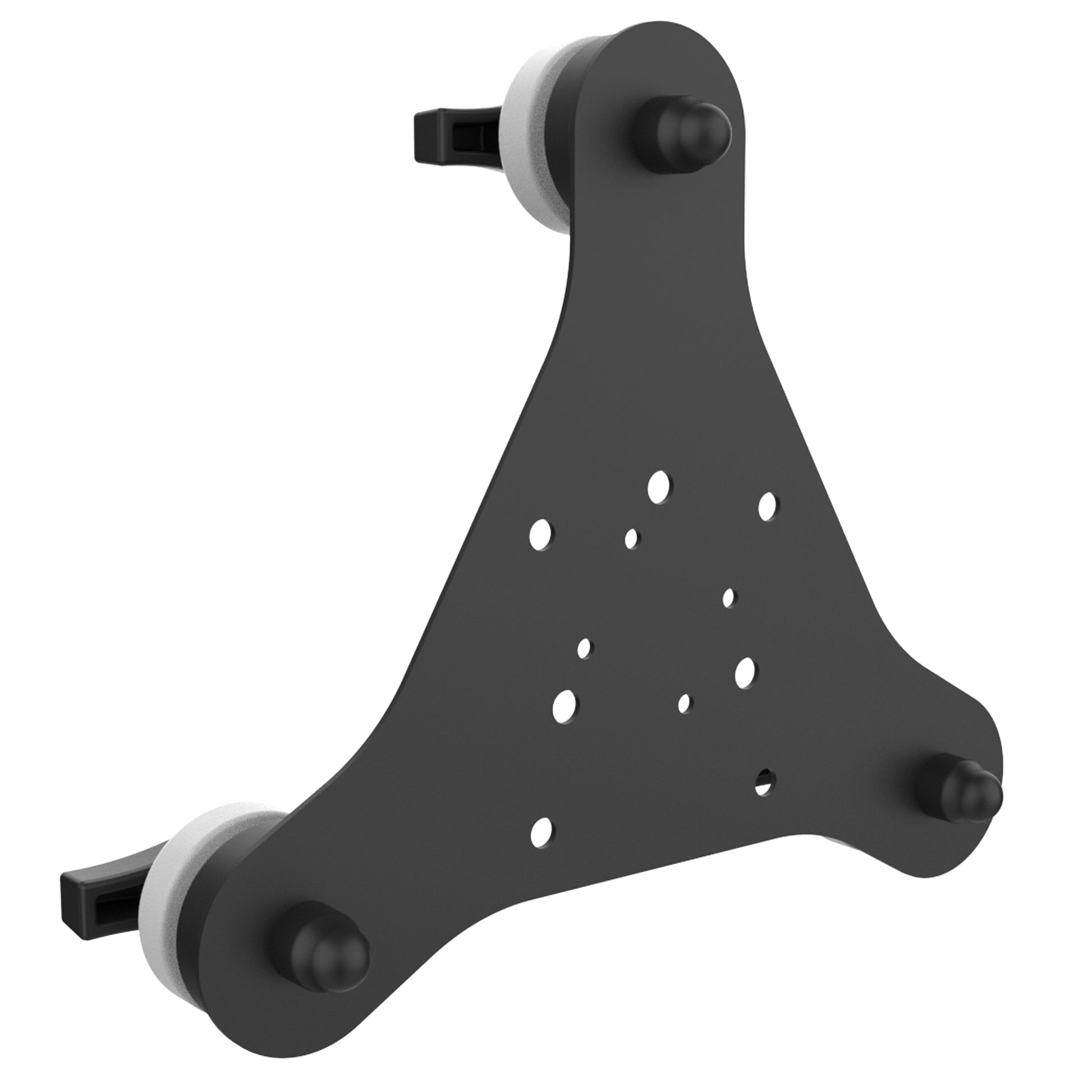

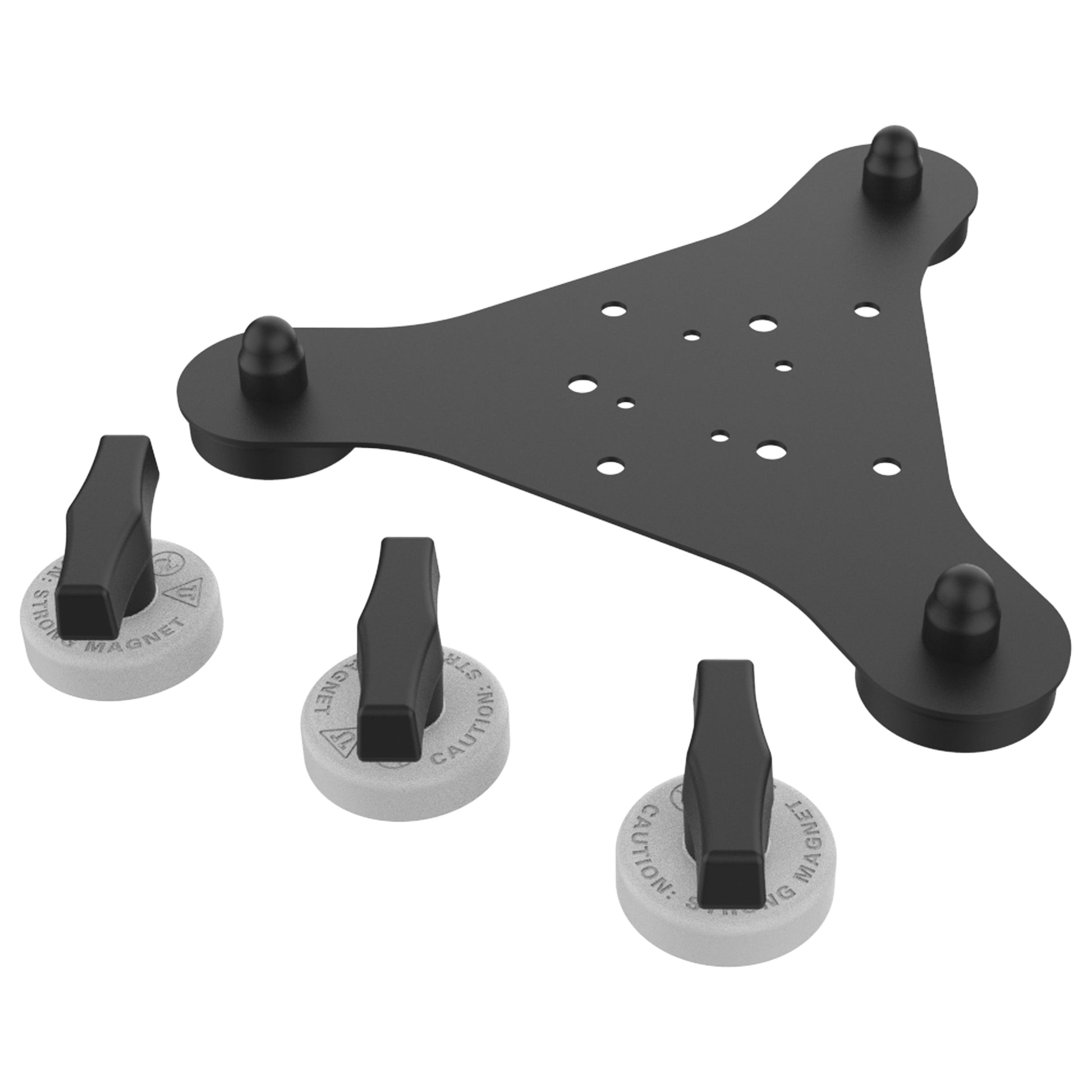

The RAM® Tough-Mag™ 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U) consists of an aluminum plate with three magnetic ends and three 48mm external magnets for mounting any flat glass surface, like windows. The plate contains pre-drilled 4-hole AMPS pattern for attaching a recommended C size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.
