Locking RAM® Thin-Dock™ for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PLU)
Locking RAM® Thin-Dock™ for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PLU)
RAM-HOL-ZE47PLU
Not what you need? See all RAM® Products here.
Features
Features

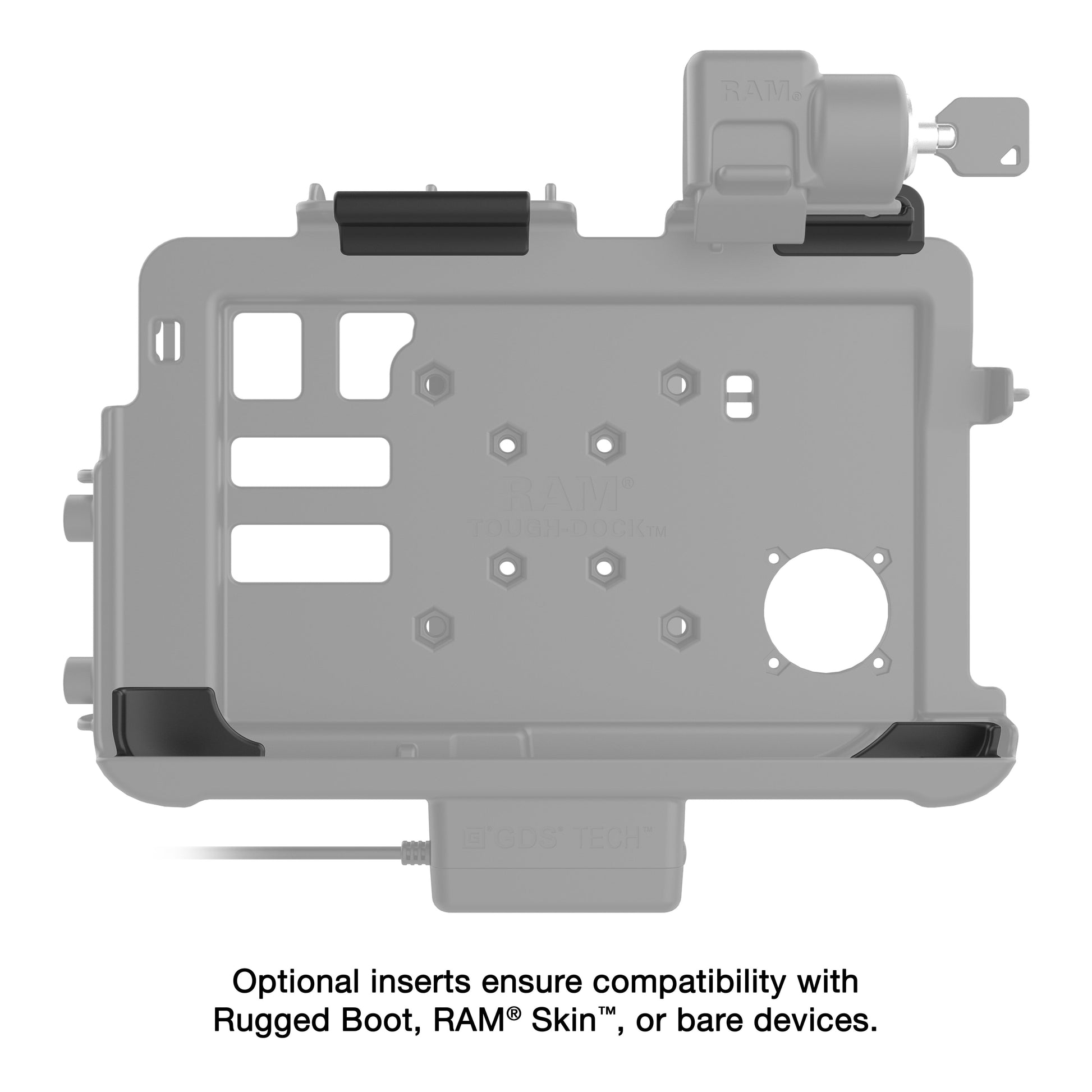

- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45; included inserts allow for compatibility with rugged boot, RAM® Skin™, and bare device

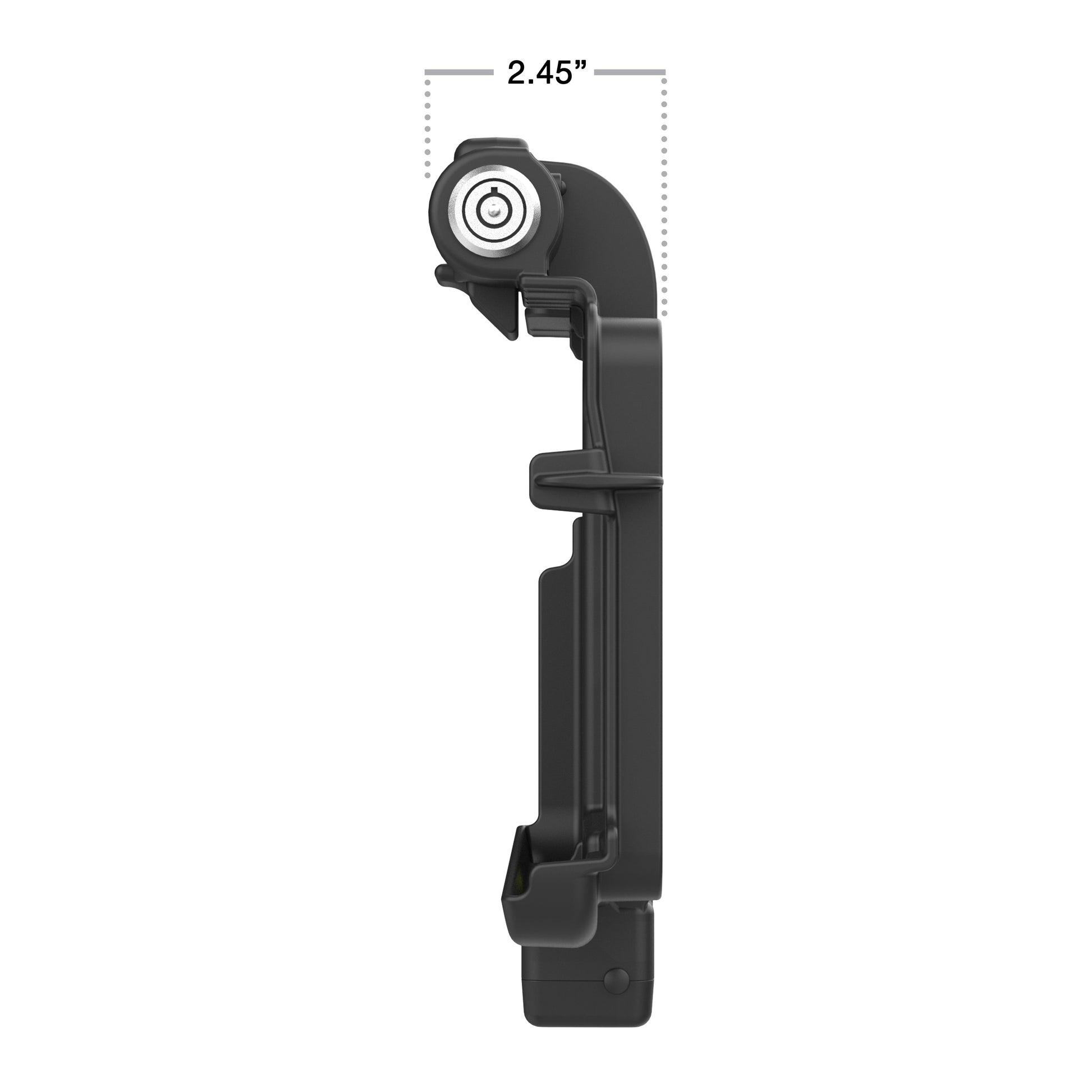

- Slim-profile design at 2.45" depth with metal reinforcement plate

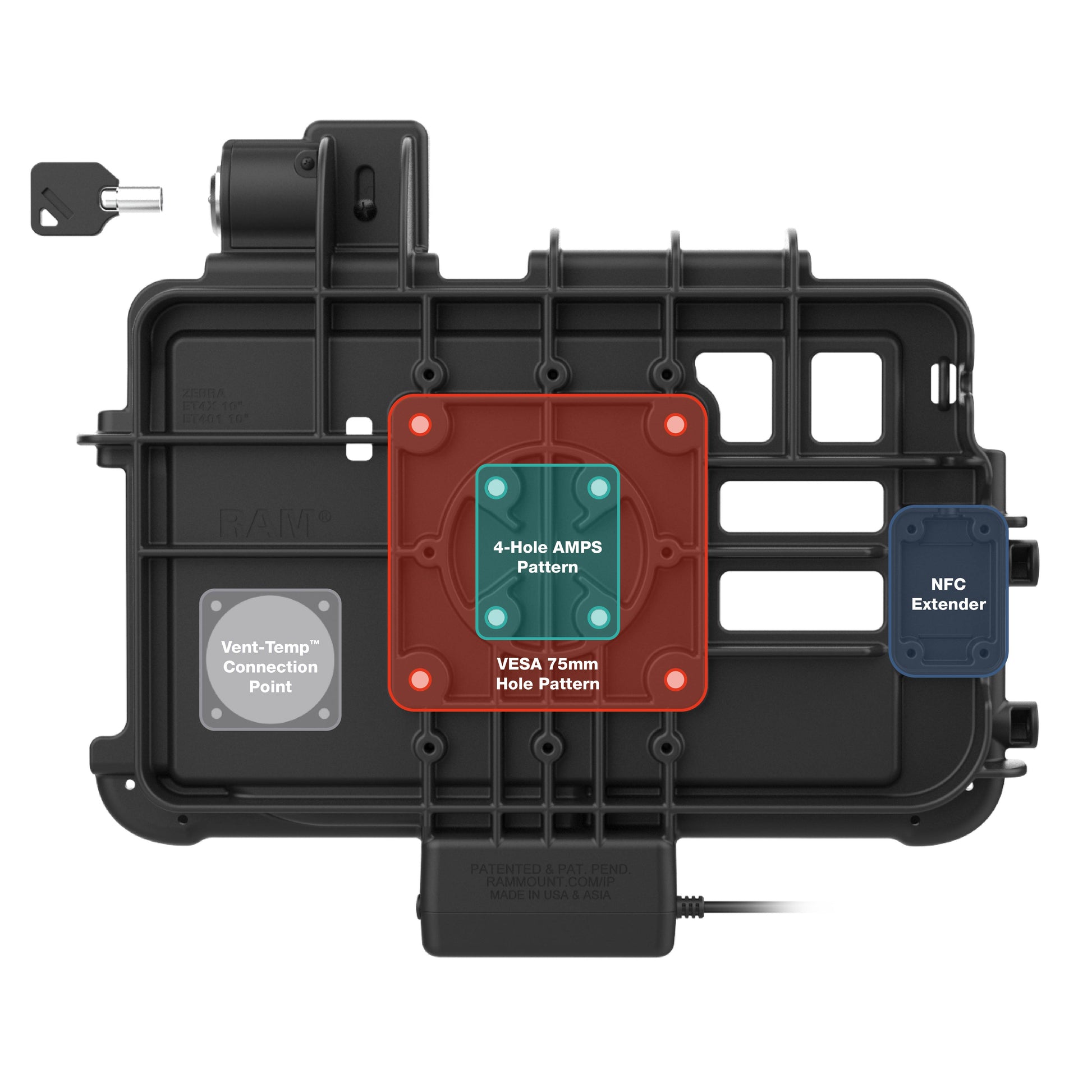

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included:
- (2) Keys
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (4) #10-24 x 5/8" Machine Screws
- (4) #10-24 Nylock Nuts
- (1) Cable Clamp
- Hole Pattern:
- 75 x 75mm VESA
- 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: 12V @ 2A
- Power Output: 24W
- Input Connector: 5.5mm DC Connector
- Input Cable Length: 1 Meter
- Certifications:
- RoHS
- WEEE
- CE
- FCC
- IC
- RCM
- Warranty: 3 year warranty
- Weight: 1.76 lb
Package Contents
Package Contents
- 1 x Locking RAM® Thin-Dock™ for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PLU)

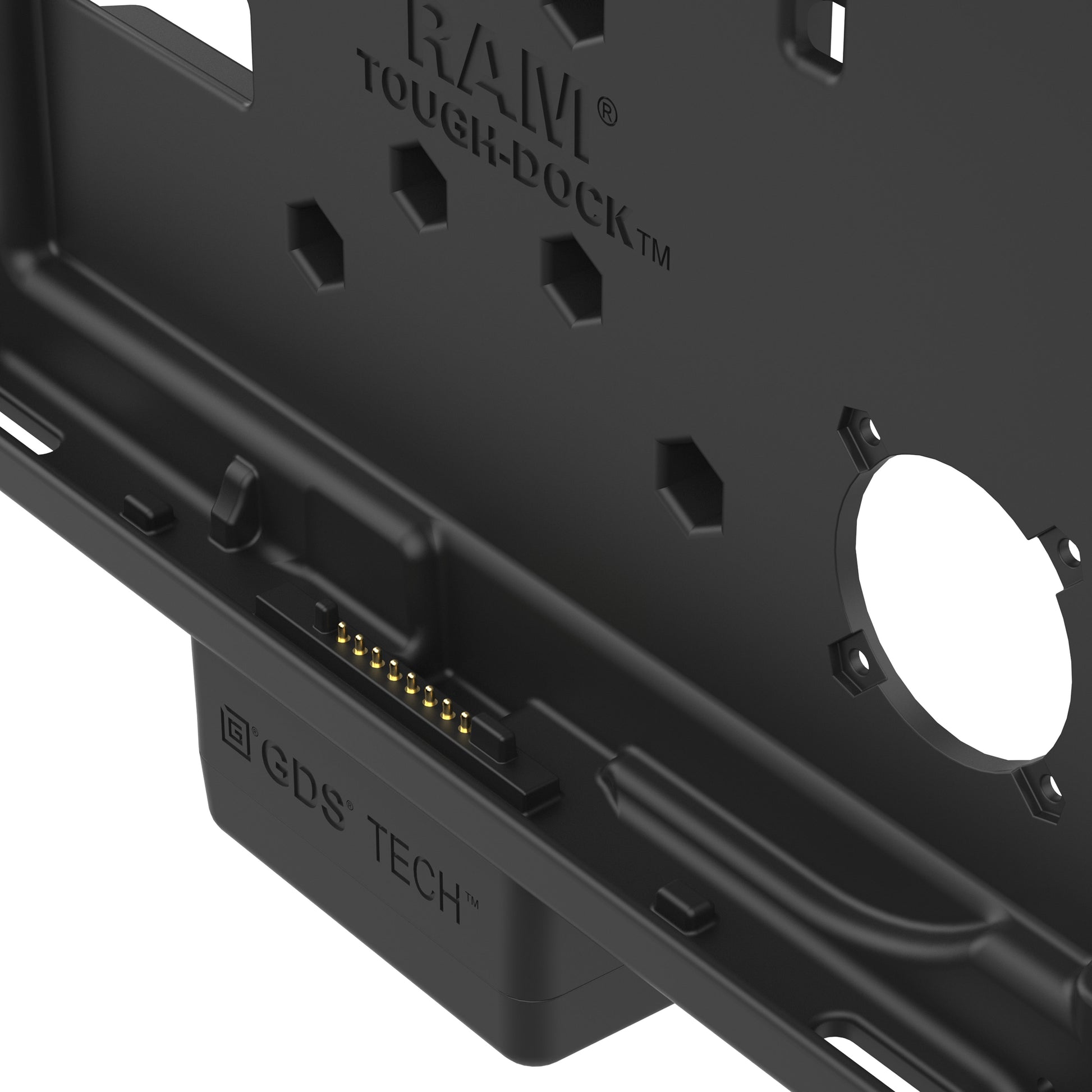

The Locking RAM® Thin-Dock™ for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PLU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock's USB Type-C connector. The design also maintains access to the tablet's side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM® 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.
