RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" (RAM-HOL-ZE44PDU)
RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" (RAM-HOL-ZE44PDU)
RAM-HOL-ZE44PDU
Not what you need? See all RAM® Products here.
Features
Features

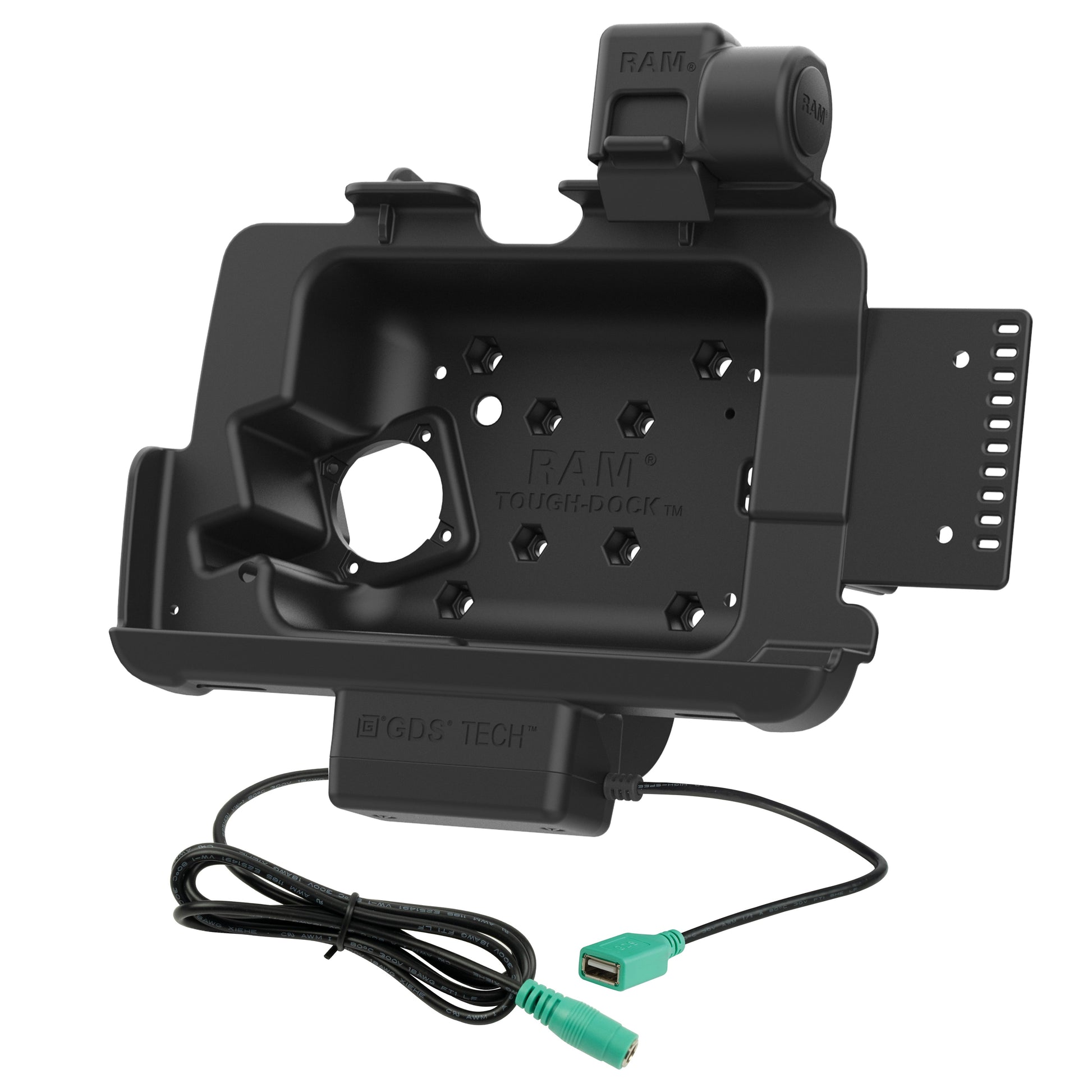

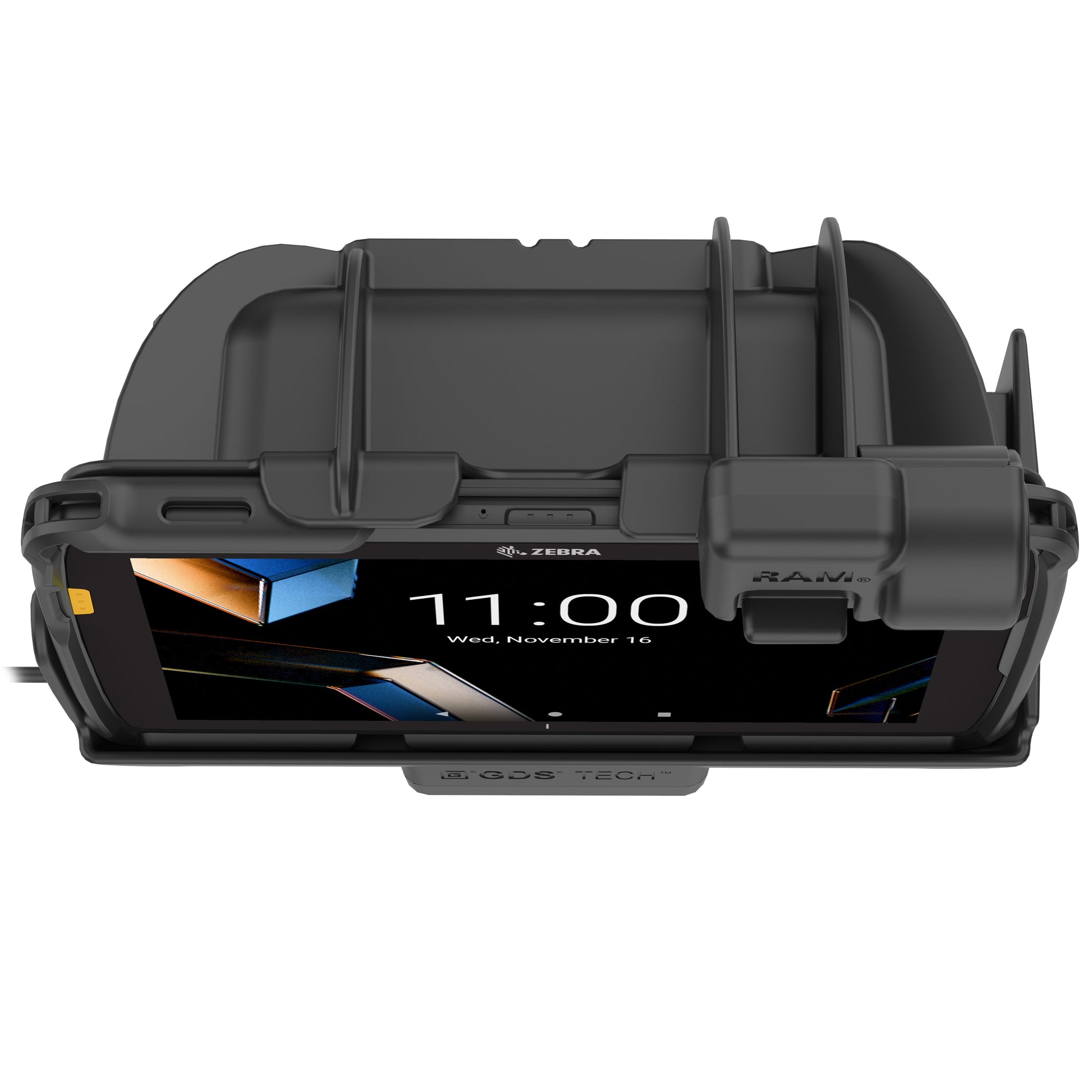

- Form-fit + single USB Type-A dock designed specifically for the Zebra ET401 with RAM® Skin™, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a USB Type A connector for adding a peripheral

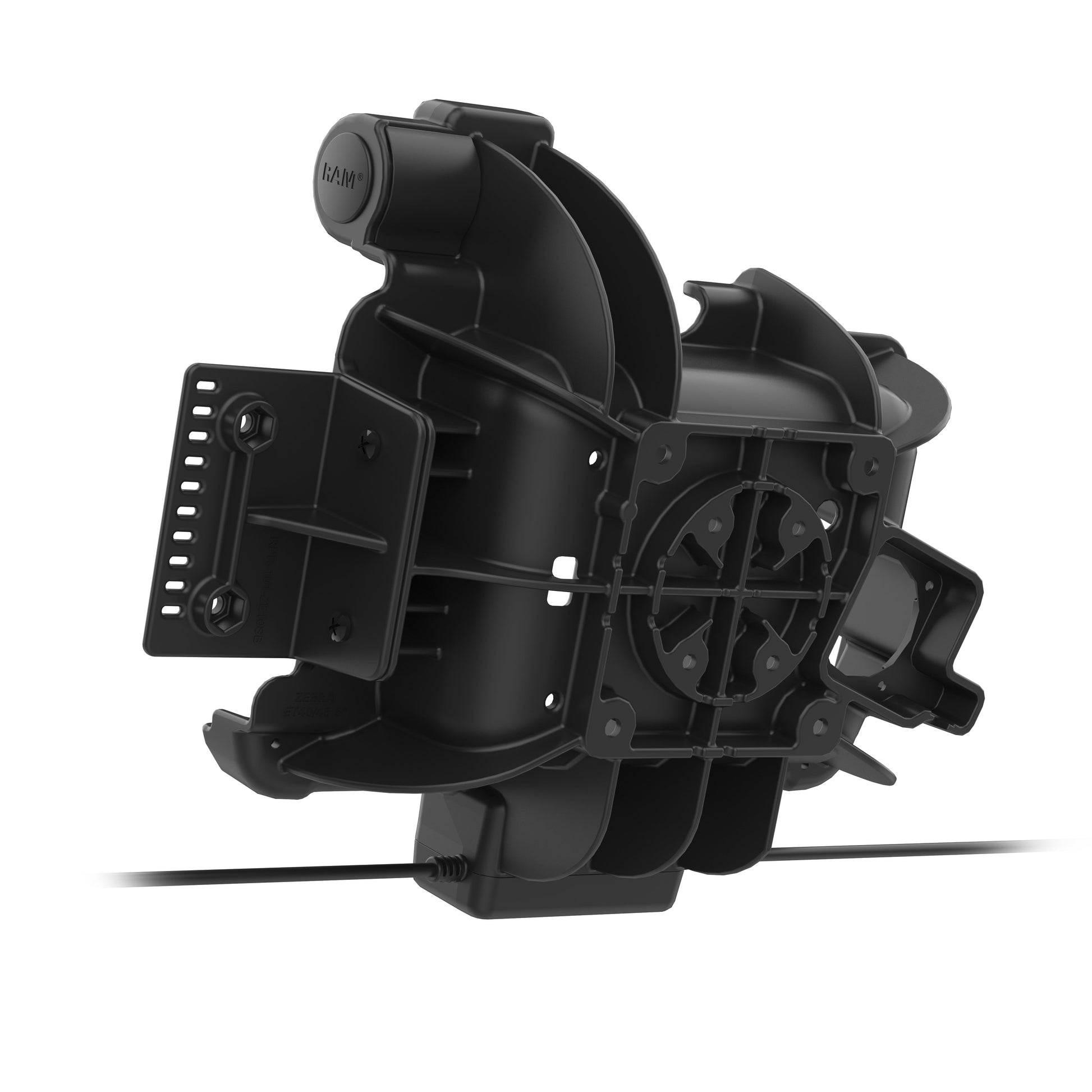

- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories

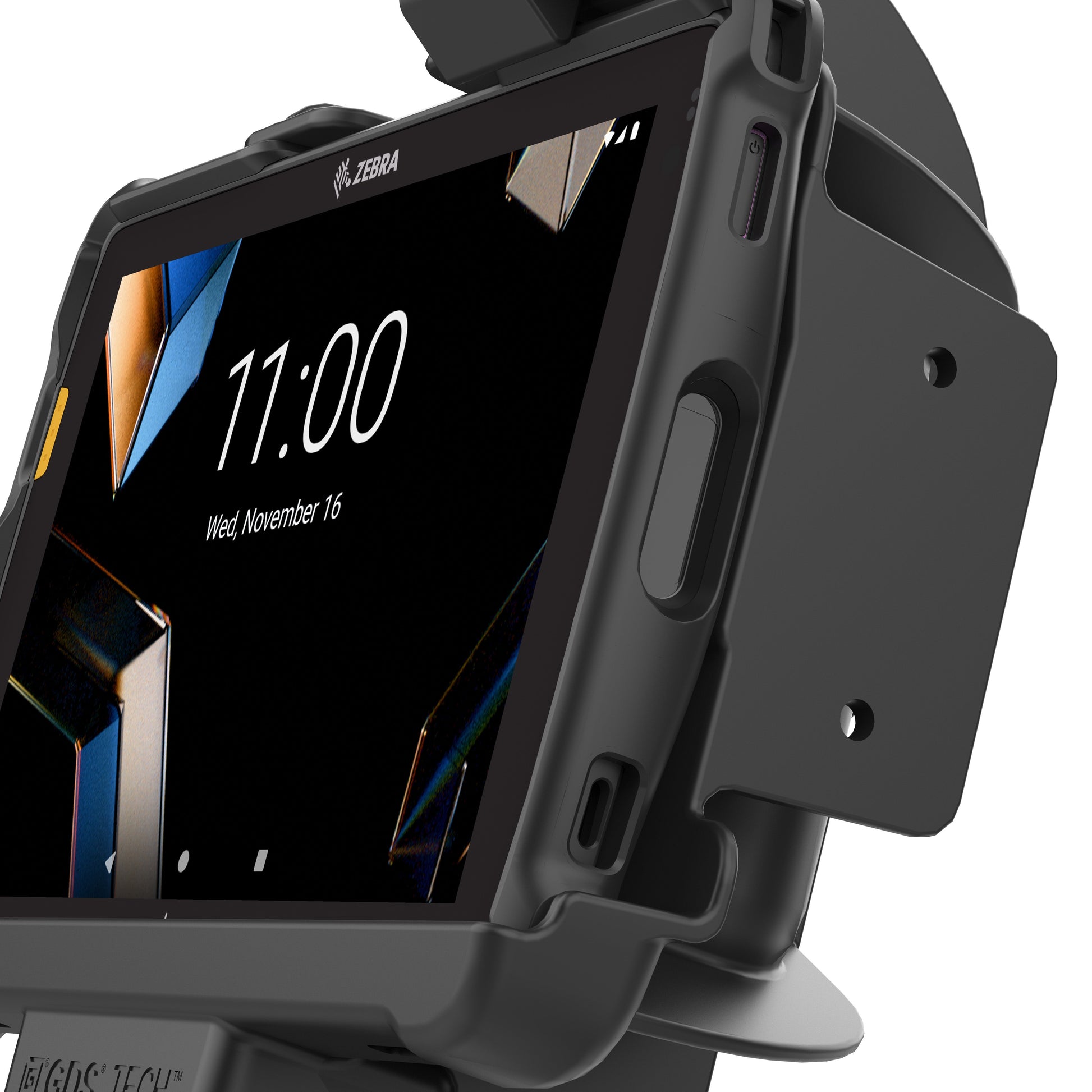

- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included:
- (1) Side bracket for accessory mounting
- (4) #8-32 x 5/8"� Machine Screws
- (2) #8-32 x 1/2"� Machine Screws
- (6) #8-32 Nylock Nuts
- (4) #10-24 x 5/8"� Machine Screws
- (4) #10-24 Nylock Nuts
- (2) Small Cable Ties
- Hole Pattern:
- 75 x 75mm VESA
- 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Connector: 5.5mm DC Connector
- Input Cable Length: 1 Meter
- Output Connector: USB 2.0 Type A
- Output Cable Length: 242mm
- Peripheral Output: 500mA
- Transfer Speed: 12Mbps
- Certifications:
- RoHS
- WEEE
- CE
- UKCA
- Warranty: 3 year warranty
- Weight: 1.59 lb
Package Contents
Package Contents
- 1 x RAM® Tough-Dock™ Power + Data with Latch for Zebra ET401 8" (RAM-HOL-ZE44PDU)

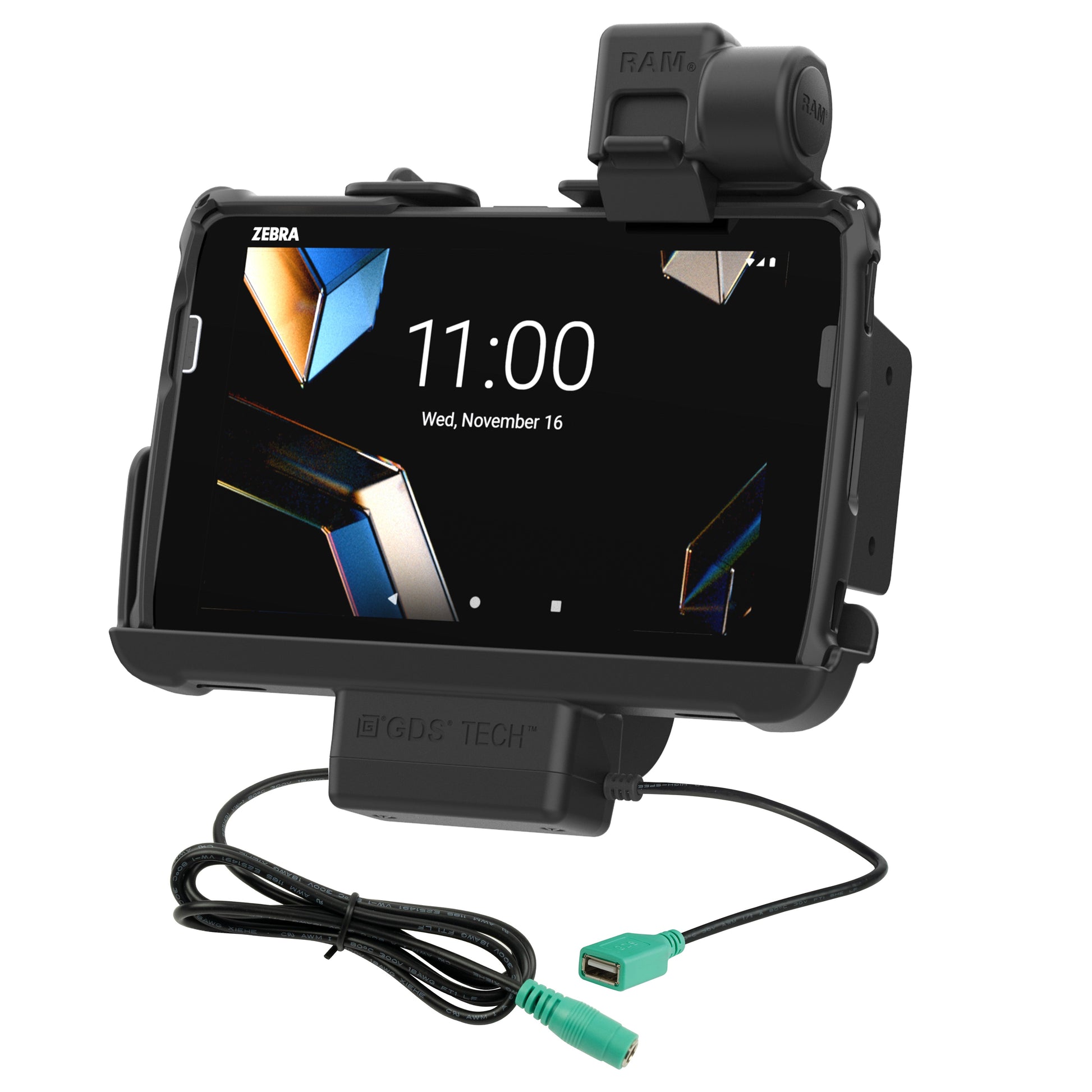

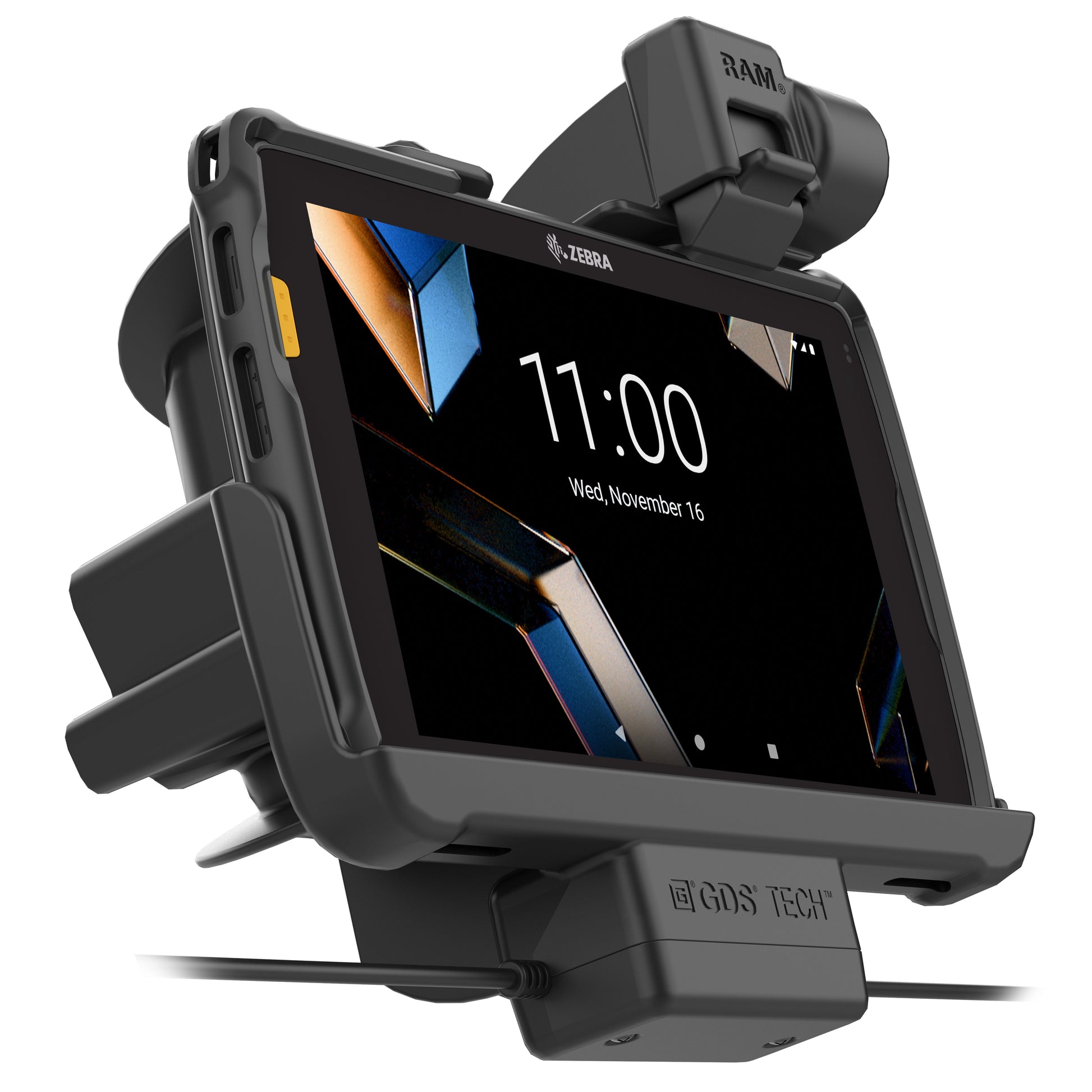

For frequent docking and undocking, this dock works with the Zebra ET401 with RAM® Skin™. This RAM® Tough-Dock™ (RAM-HOL-ZE44PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
