RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU)
RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU)
RAM-HOL-PD5B-W2MU
Not what you need? See all RAM® Products here.
Features
Features

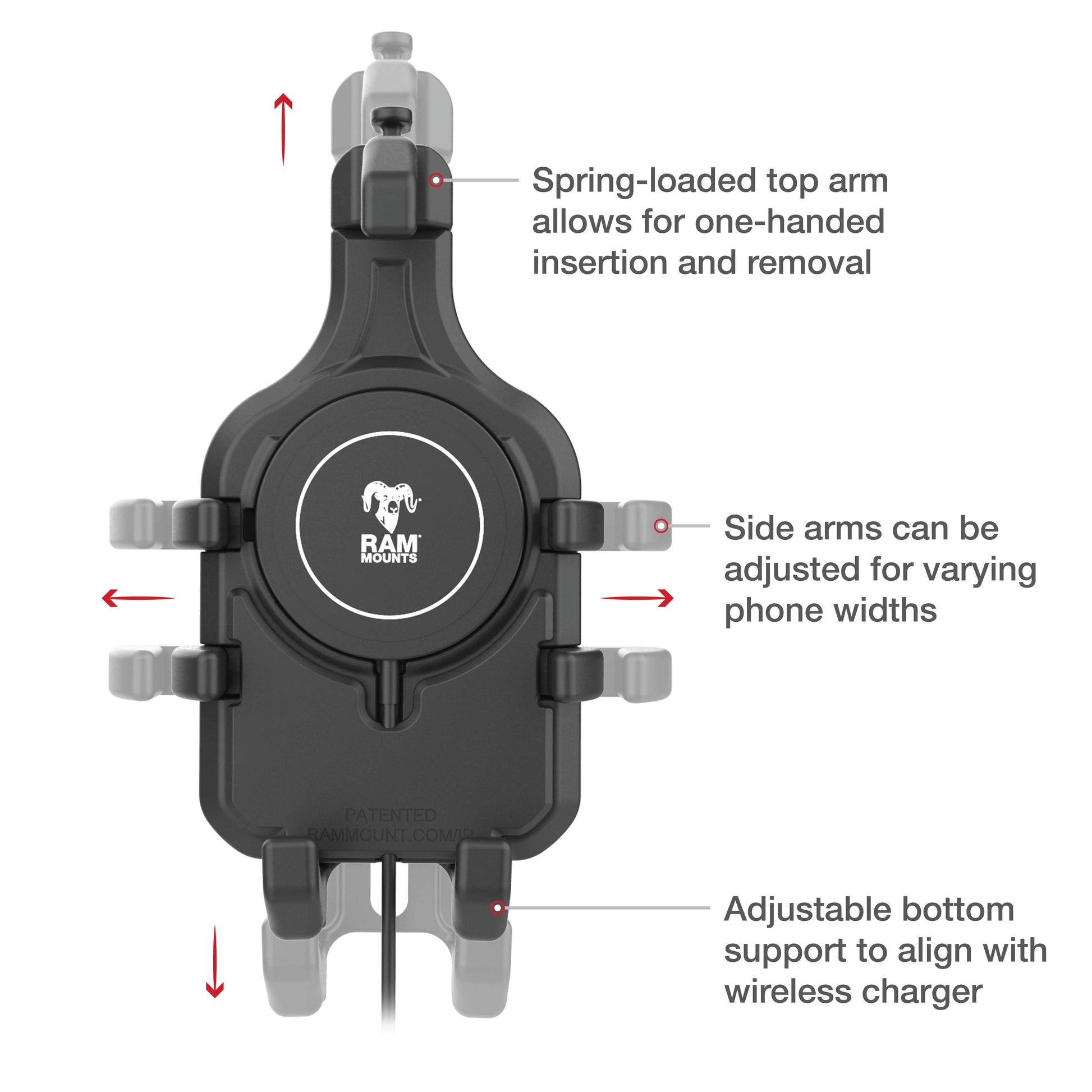

- Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
- Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
- Comes with an optional device tether for open cockpit environments
- Made of high-strength composite for durability and reliability in the most demanding environments
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included: Assembly Hardware
- Holder Dimensions:
- Height Range: 5.5" - 7.75"
- Width Range: 2.625" - 3.75"
- Max Depth: .67"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials: High strength composite
- Packaging Type: Poly Bag
- Power Specifications:
- Operating Frequency: 360KHZ
- Stand-by Consumption ~ 0.008A / 8mA @5VDC
- 80% Wireless Power Transfer Efficiency or Greater
- Supports USB 2.0 BC1.2 Power Supply (5V)
- Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
- Input Voltage:
- USB 5V @ 3A
- QC2.0 9V @ 2.22A
- USB PD 2.0 5-15V @ 2A
- Power Output:
- BPP - 5W
- EPP - 7.5W
- MPP - 15W
- Output Connector: USB Type-C Male with USB-A Adapter
- Output Cable Length: 1 Meter
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Regulatory:
- Over Current Protection
- Short circuit Protection
- Over Temperature Protection
- RoHS Compliance
- WEEE Compliance
- Certifications:
- IP67
- SAE J1455
- FCC Certification
- CE Certification
- E-Mark Certification
- RCM Certification
- Weight: 0.65 lb
- Additional Information: Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more. Top hook may block front facing camera and facial recognition on select phones. The included wireless charger will support up to 8mm charging distance between puck and device.

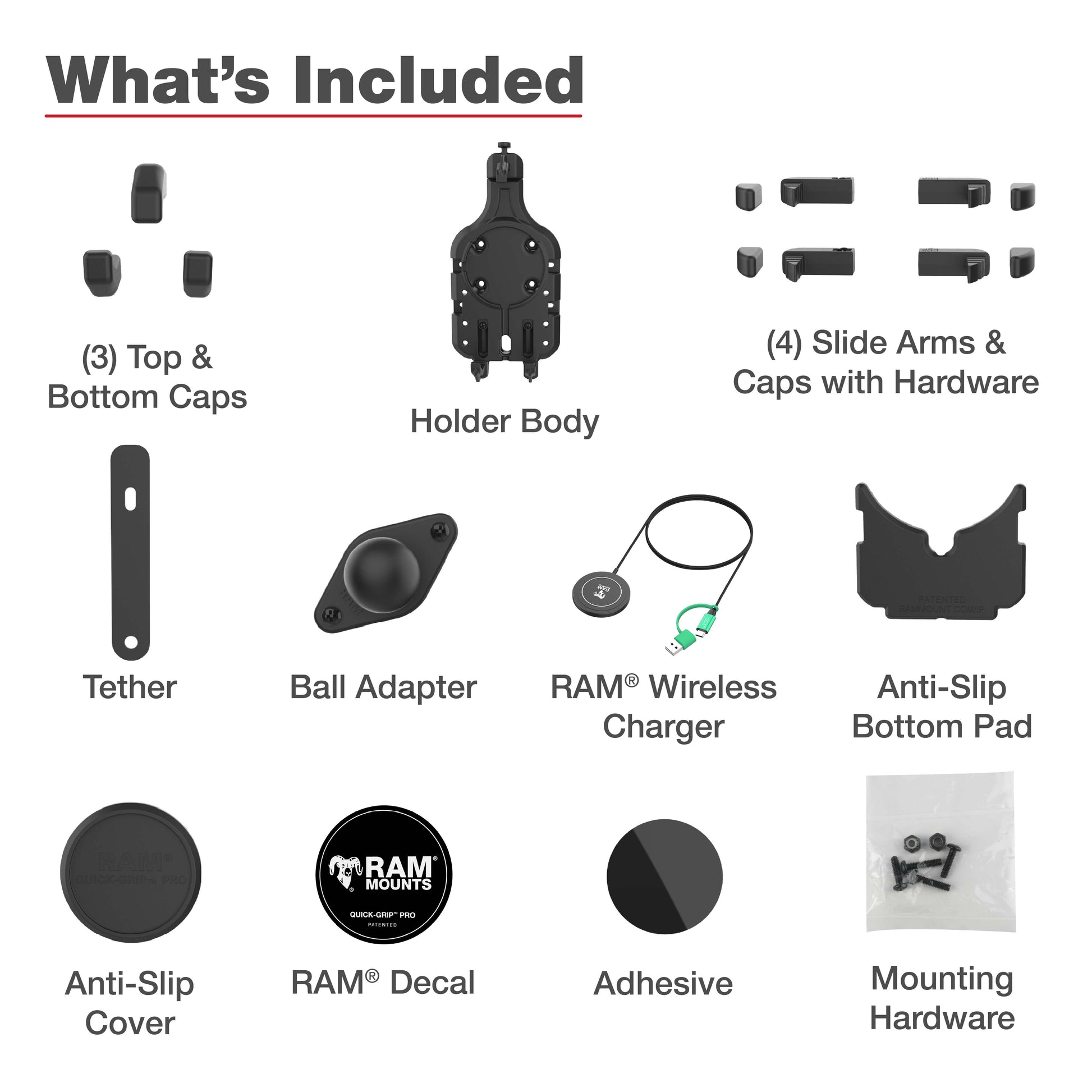

Package Contents
Package Contents
- 1 x RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU)

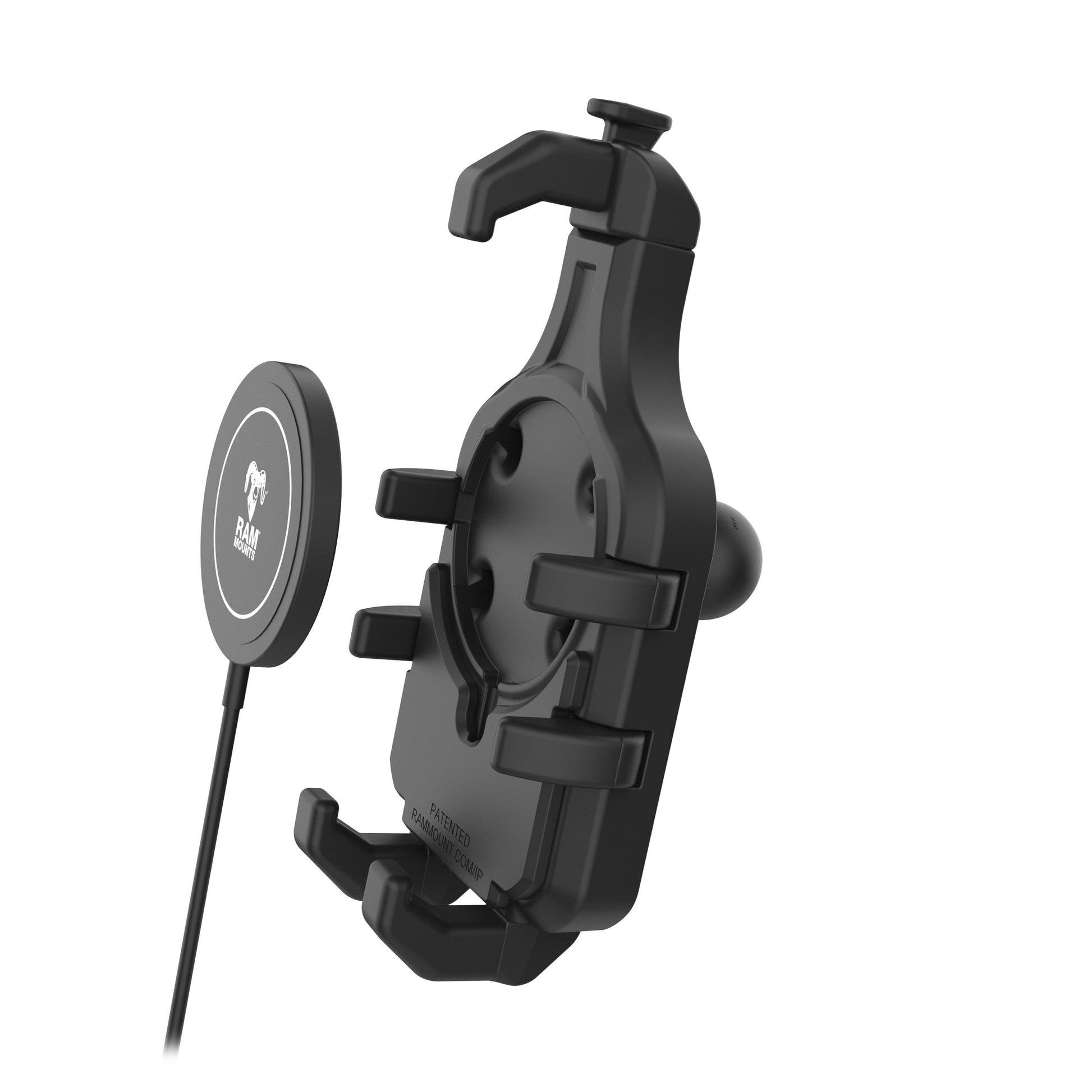

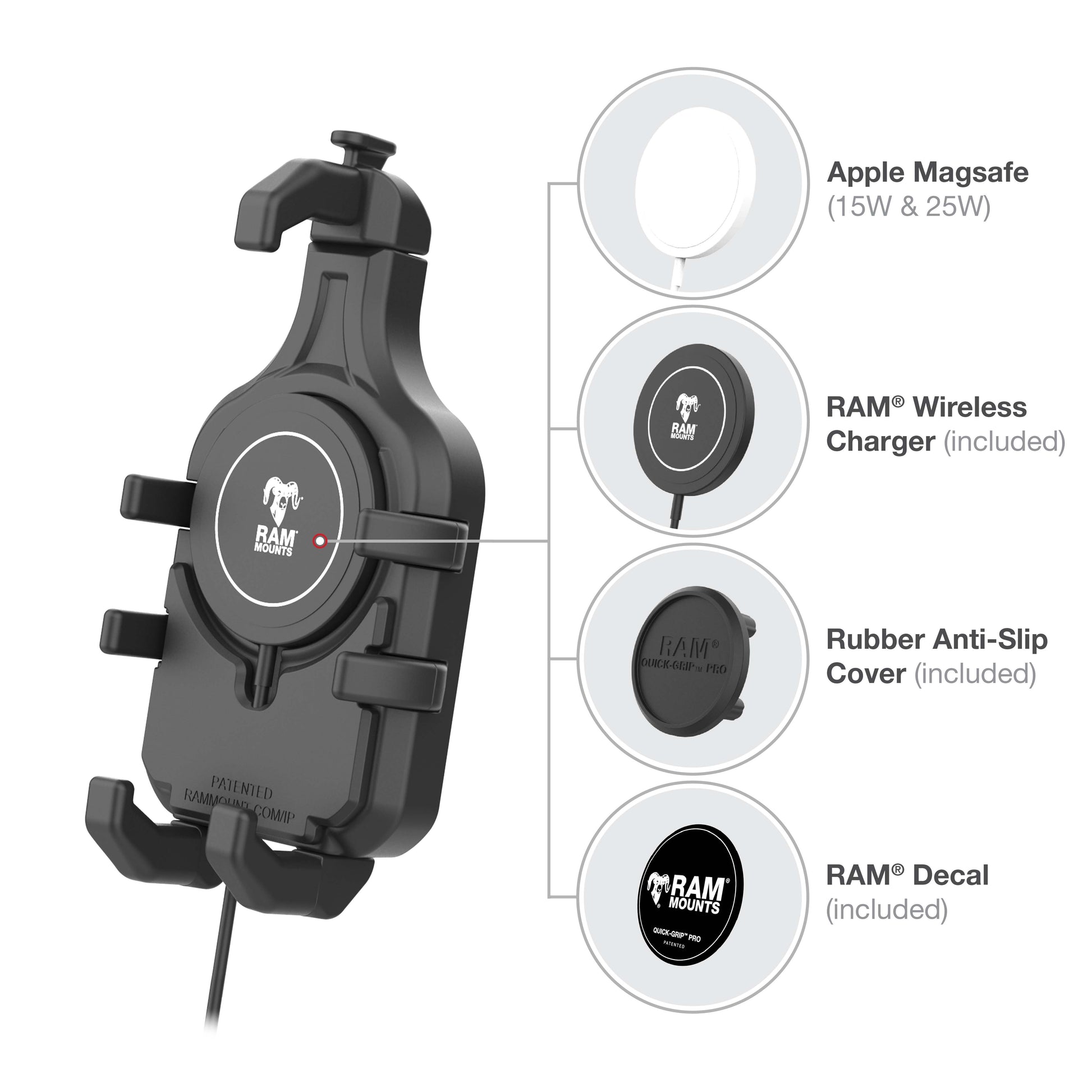

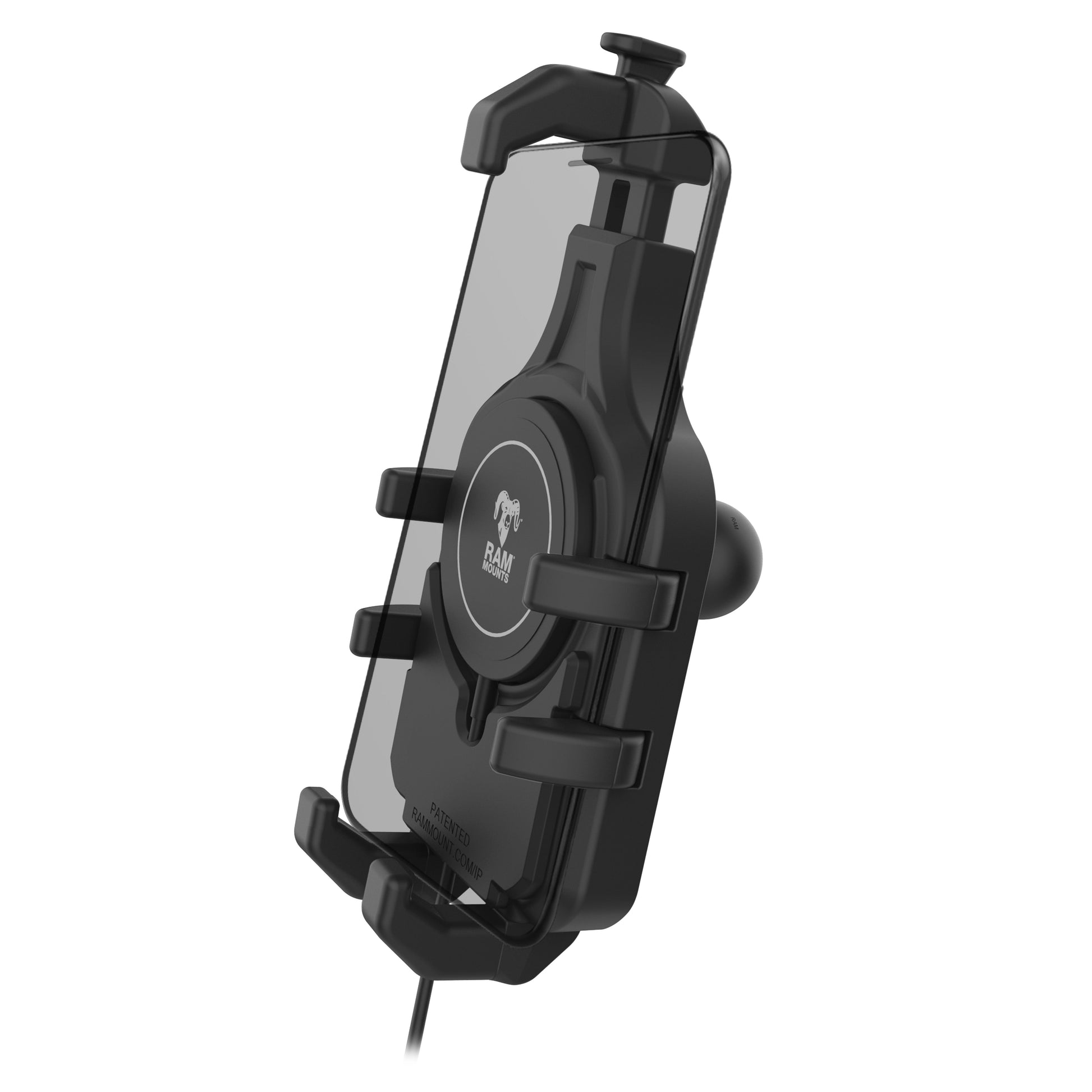

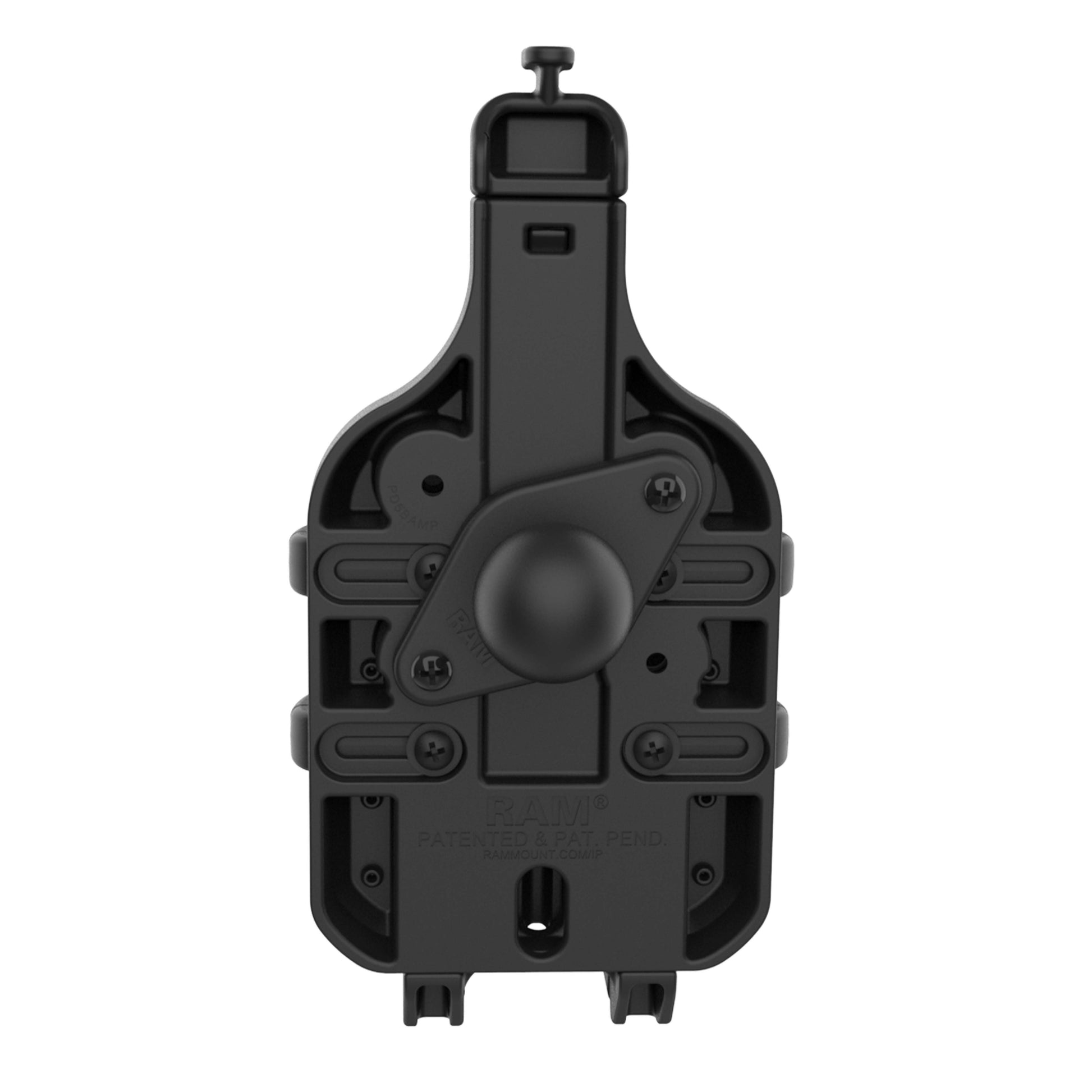

The RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU) is the next evolution of the RAM® Quick-Grip™ series. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount - this holder is RAM® Compatible™ and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
