Locking GDS® Thin-Dock™ + Data for Zebra ET401 10" with IntelliSkin® (RAM-GDS-DOCKL-ZE47PDU)
Locking GDS® Thin-Dock™ + Data for Zebra ET401 10" with IntelliSkin® (RAM-GDS-DOCKL-ZE47PDU)
RAM-GDS-DOCKL-ZE47PDU
Not what you need? See all RAM® Products here.
Features
Features
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®

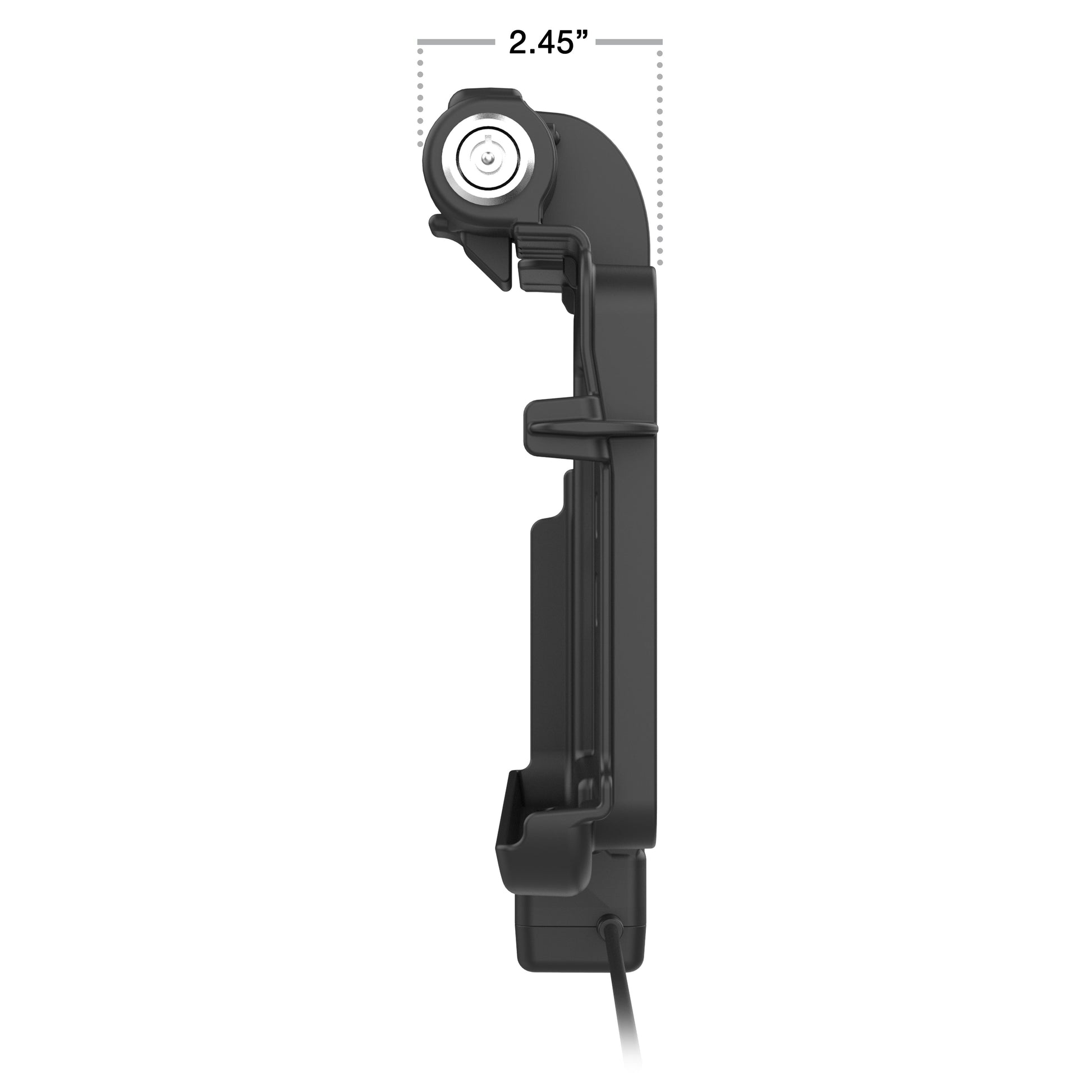

- Slim-profile design at 2.45" depth with metal reinforcement plate

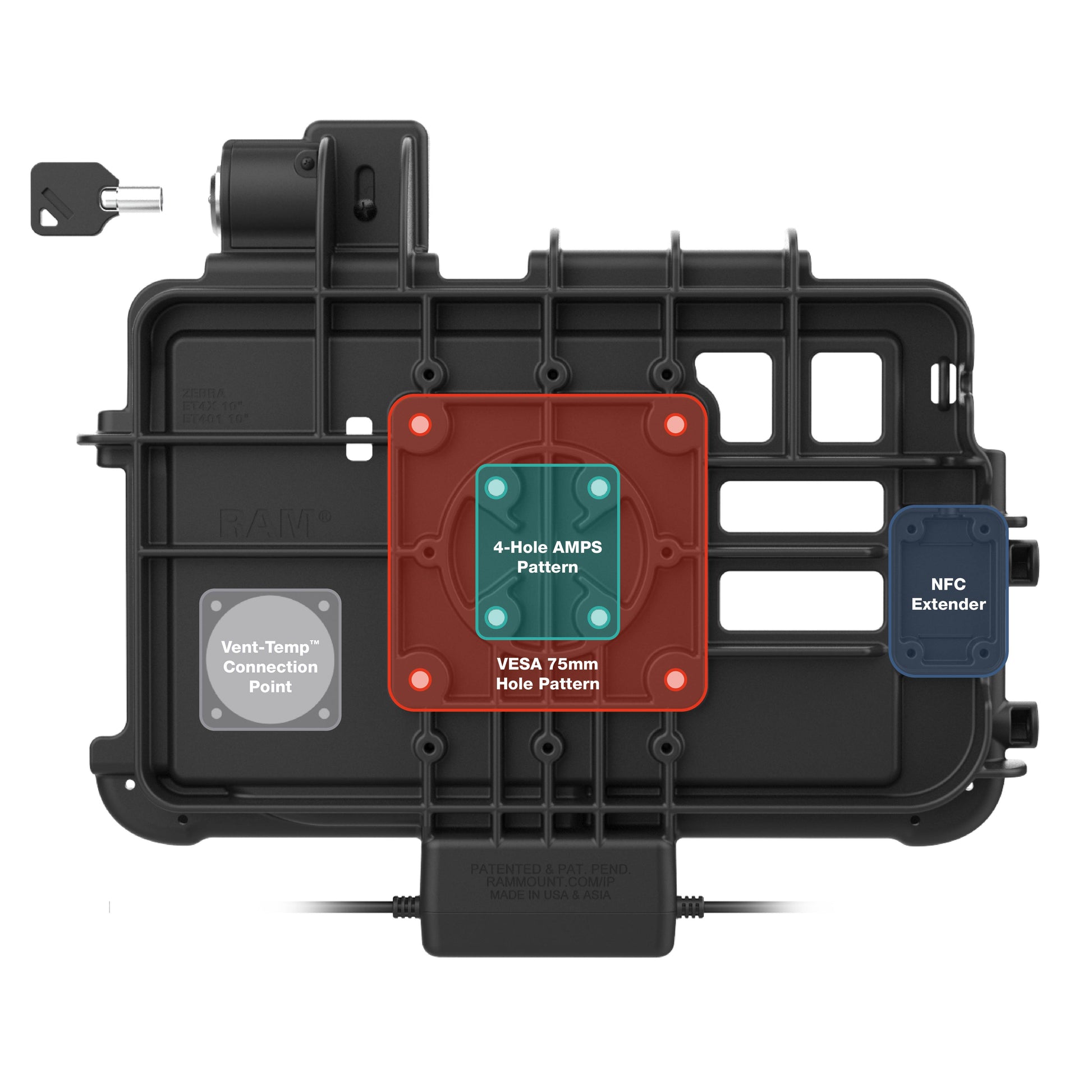

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included:
- (2) Keys
- (4) #8-32 x 5/8" Machine Screws
- (4) #8-32 Nylock Nuts
- (4) #10-24 x 5/8" Machine Screws
- (4) #10-24 Nylock Nuts
- (2) Cable Clamps
- Hole Pattern:
- 75 x 75mm VESA
- 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: 5V - 20V @ 3A
- Power Output: 60W
- Input Connector: USB Type-C
- Input Cable Length: 215mm
- Output Connector: USB 2.0 Type A
- Output Cable Length: 215mm
- Peripheral Output: 500mA
- Transfer Speed: 12Mbps
- Certifications:
- RoHS
- WEEE
- CE
- UKCA
- Warranty: 3 year warranty
- Weight: 1.35 lb
Package Contents
Package Contents
- 1 x Locking GDS® Thin-Dock™ + Data for Zebra ET401 10" with IntelliSkin® (RAM-GDS-DOCKL-ZE47PDU)

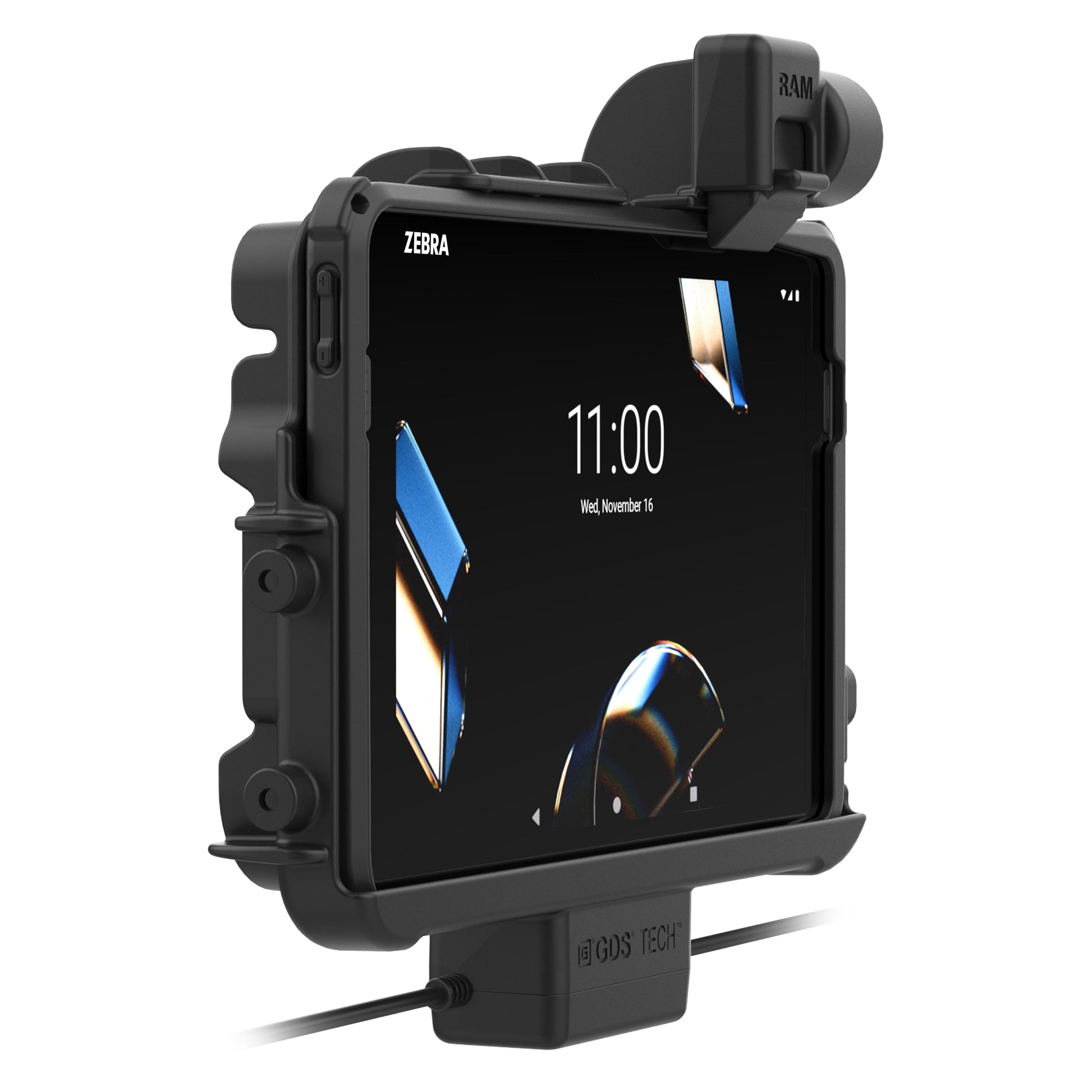

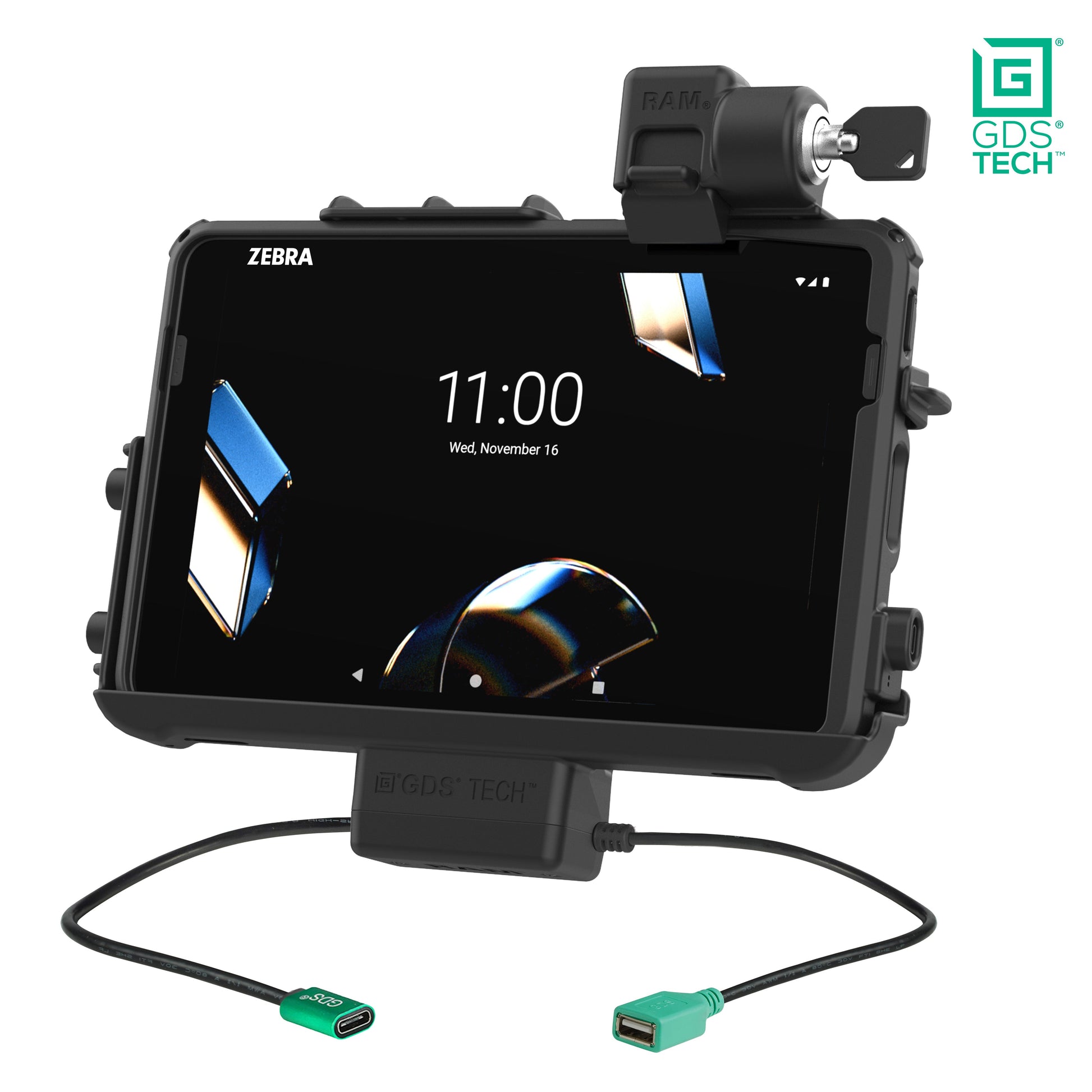

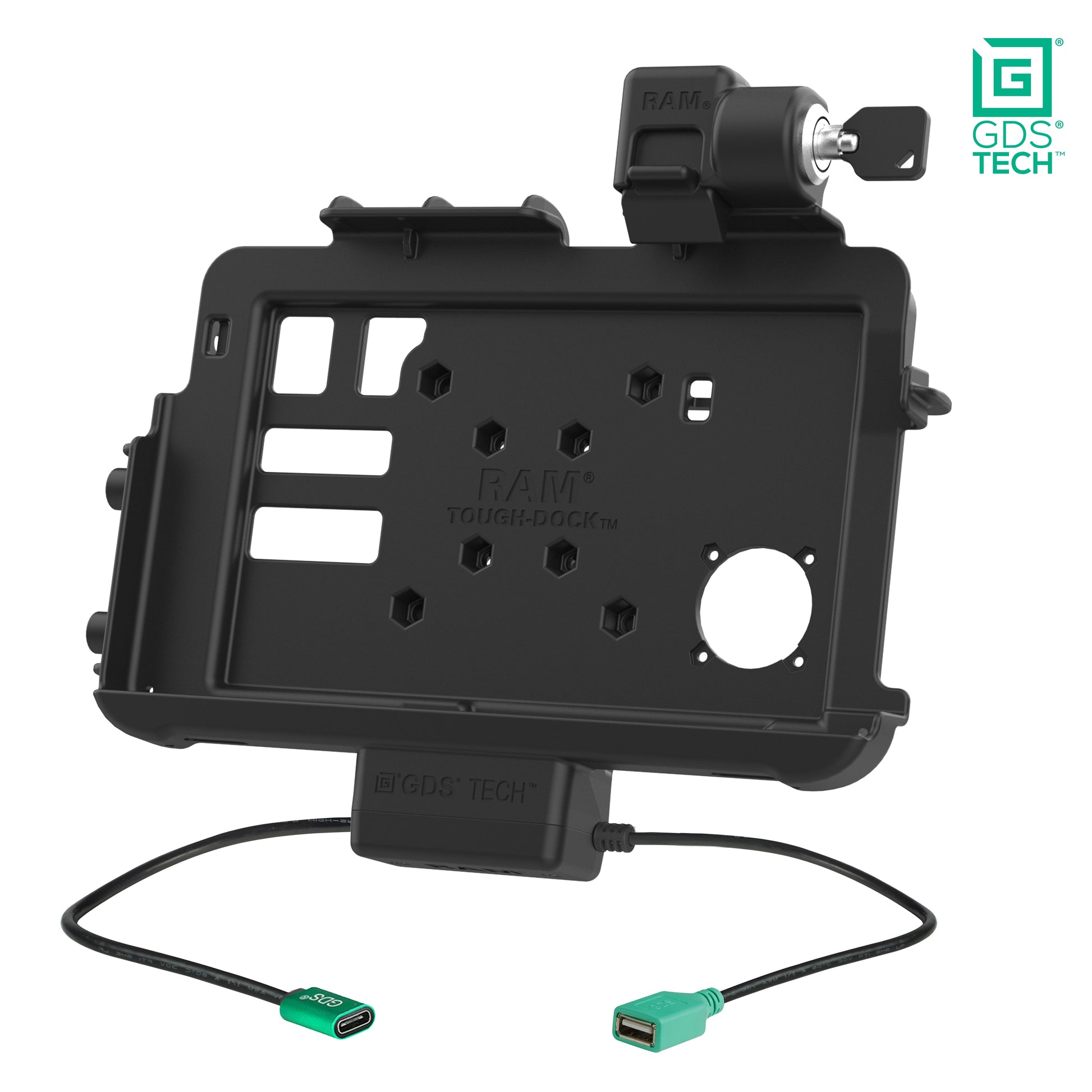

The Locking GDS® Thin-Dock™ + Data for Zebra ET401 10" with IntelliSkin® (RAM-GDS-DOCKL-ZE47PDU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets when used with an IntelliSkin® protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock's USB Type-C connector. Connect a mouse, keyboard, or printer using the peripheral USB-A connector. The design also maintains access to the tablet's side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Always Protected. Always Connected.®
