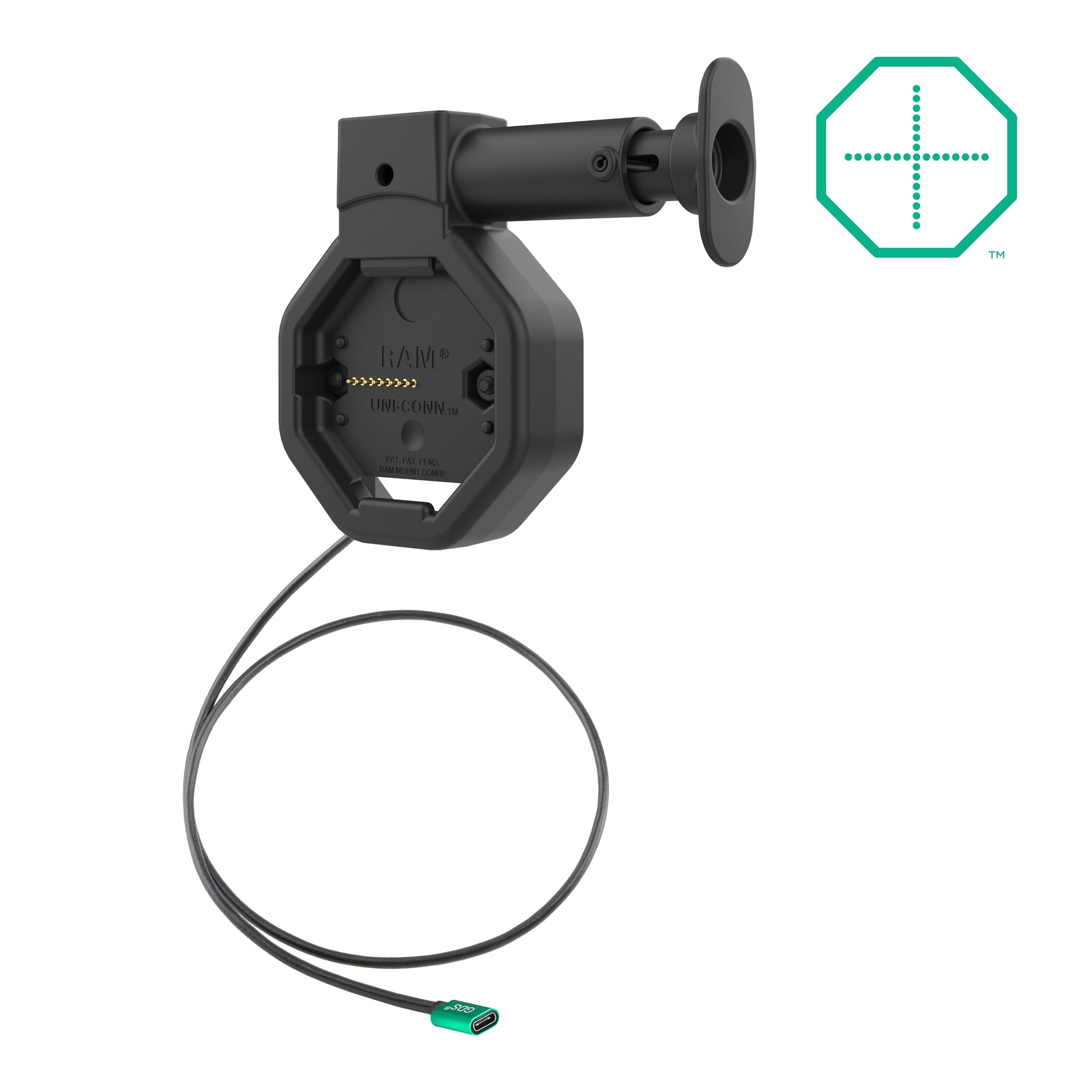

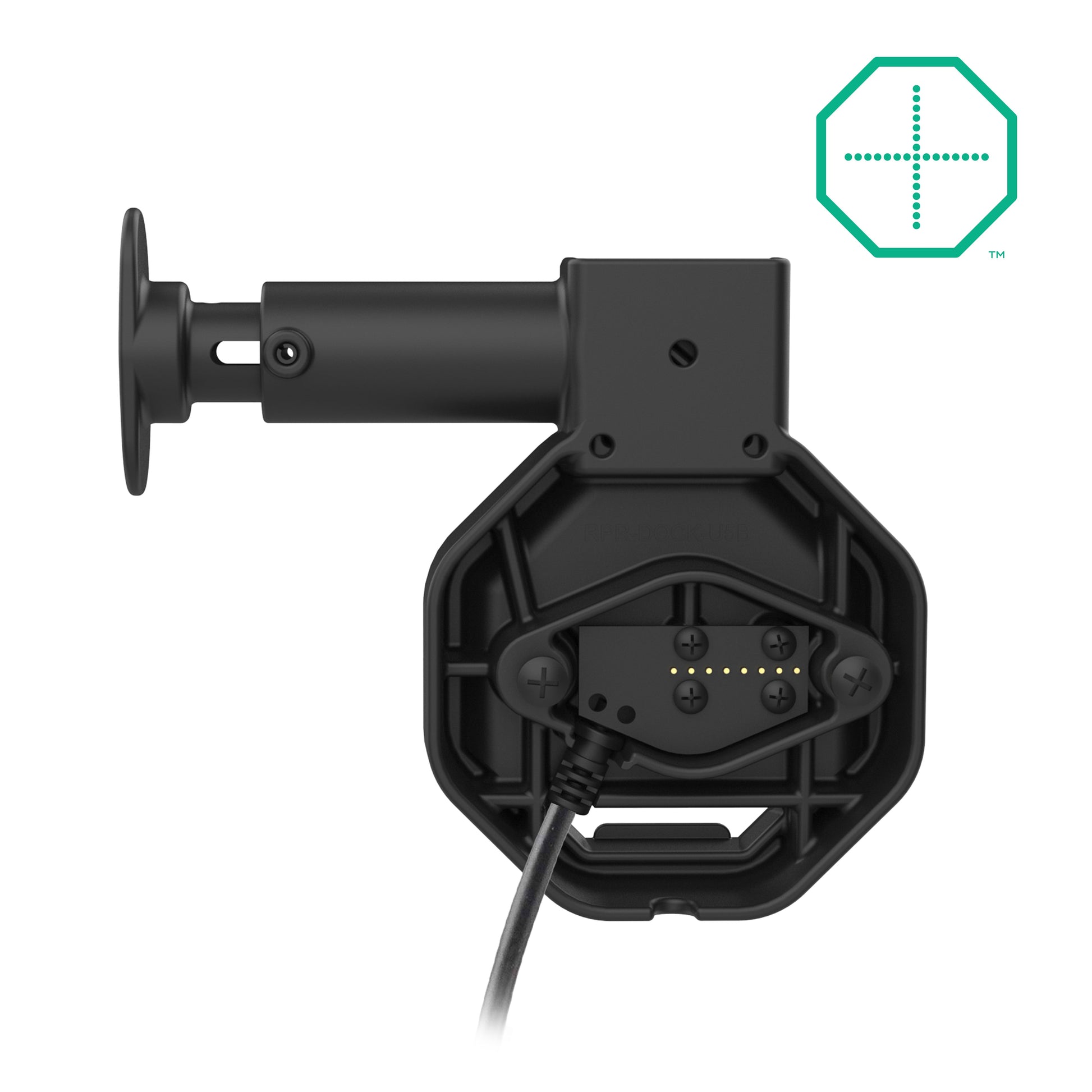

GDS® Uni-Conn™ Powered USB-C Dock with Release Button (RAM-GDS-DOCK-U5CPU)

GDS® Uni-Conn™ Powered USB-C Dock with Release Button (RAM-GDS-DOCK-U5CPU)

RAM-GDS-DOCK-U5CPU

$159.00
$159.00
Tax included.

Not what you need? See all RAM® Products here.

Features

  • Quick-release dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in IntelliSkin® with Rear Pogo Pads
  • USB Type-C female connector enables high-speed charging capabilities
  • RAM® Compatible™; complete your solution with a diamond ball adapter, arm, and base of choice
  • Backed by a 3-year warranty

Tech Specs

  • Hardware Included:
    • (2) #8-32 x 7/8" Machine Screws
    • (2) #8-32 Nylock Nuts
  • Hole Pattern: 2-Hole AMPS: 1.912"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Output Voltage:
    • USB-C Tablets: 5V - 20V @ 3A Max
    • mUSB Tablets: 9V @ 1.67A Max
  • Power Output: 60W Max
  • Input Connector: USB Type-C (Female)
  • Input Cable Length: 800mm
  • Warranty: 3 year warranty
  • Weight: 0.36 lb
  • Additional Information: GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.

Package Contents

  • 1 x GDS® Uni-Conn™ Powered USB-C Dock with Release Button (RAM-GDS-DOCK-U5CPU)
View full details

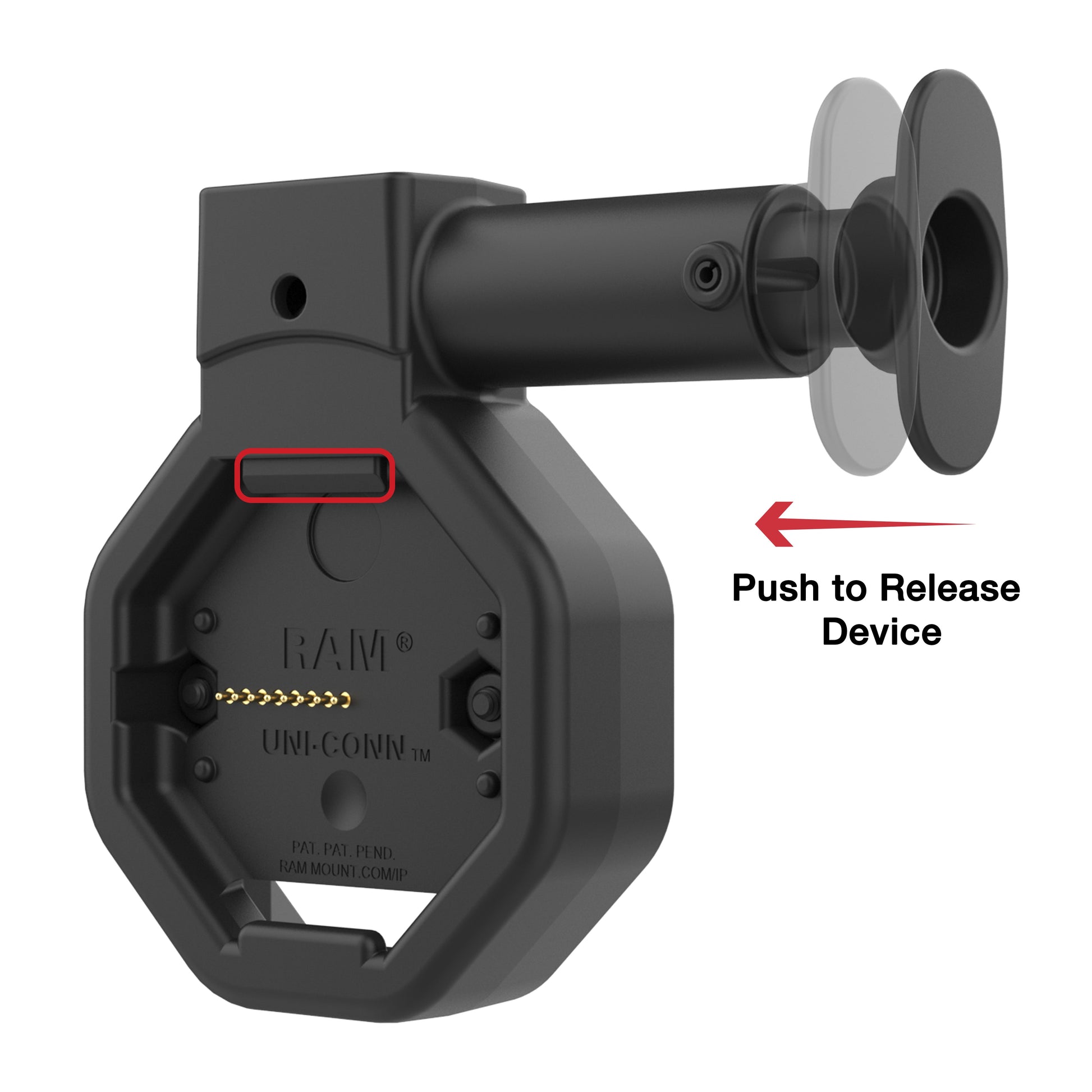

The GDS® Uni-Conn™ Powered USB-C Dock with Release Button (RAM-GDS-DOCK-U5CPU) is a versatile quick-release docking solution for devices enclosed in an IntelliSkin® with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. It features an easy docking and undocking process; simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the release button frees the tablet. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®
