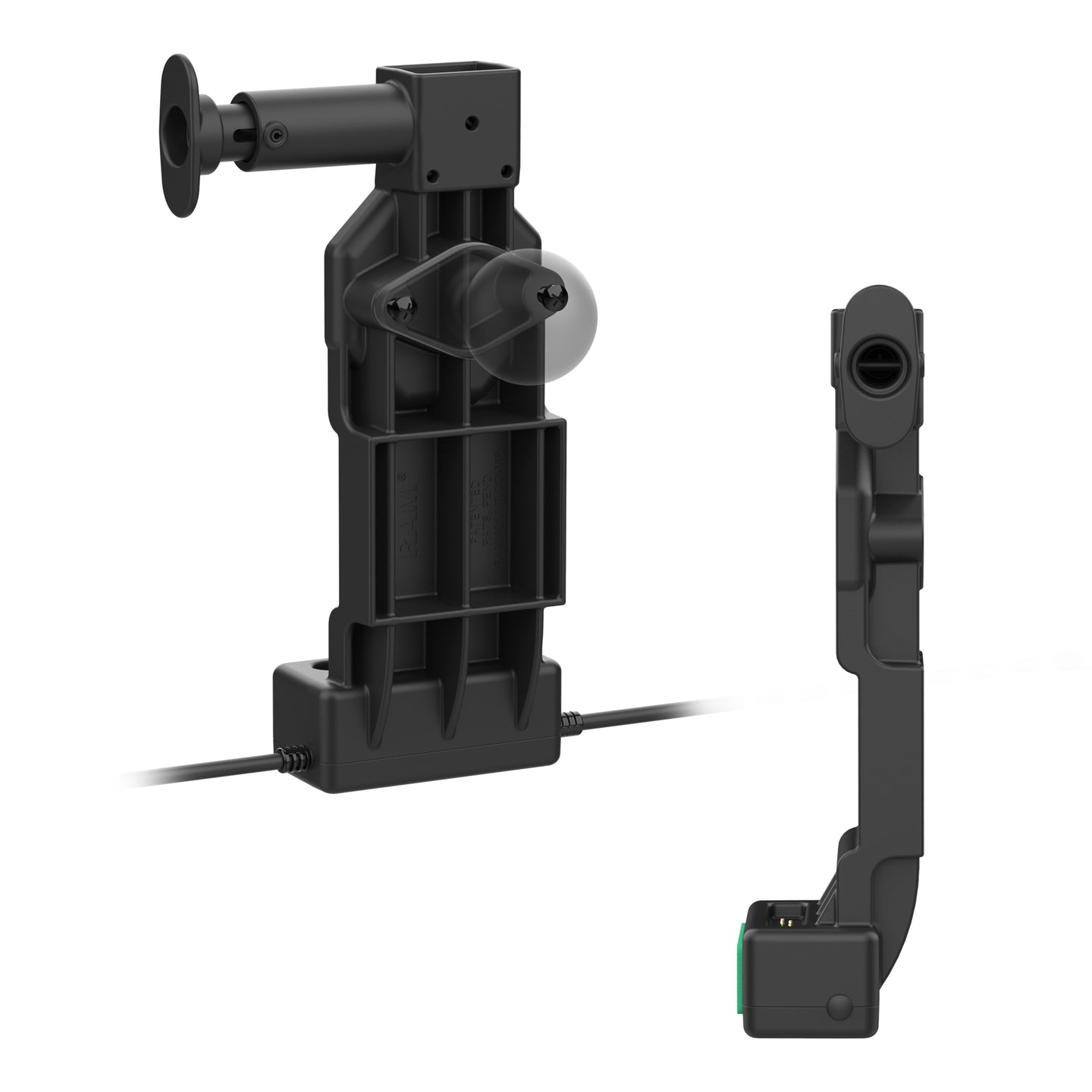

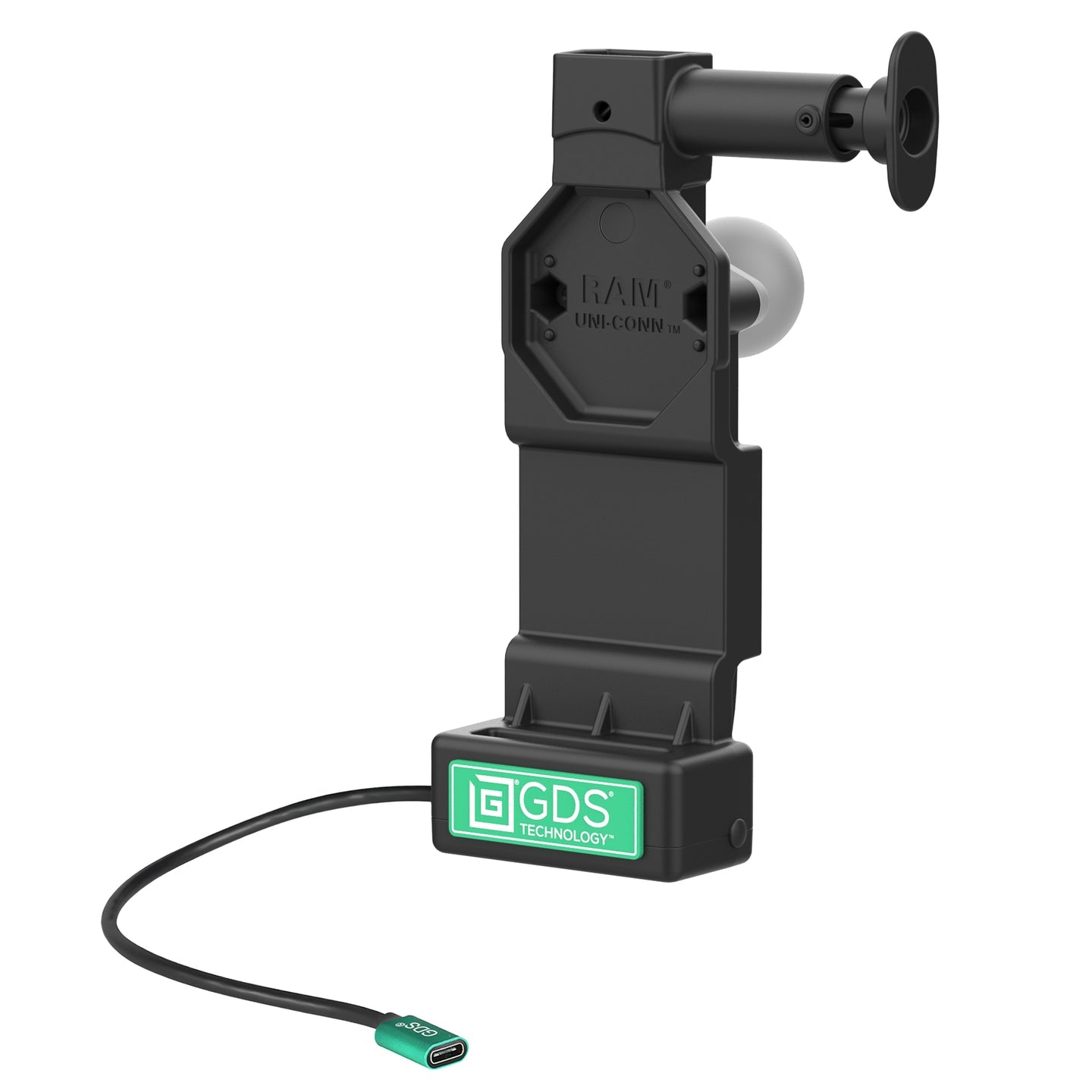

GDS® Uni-Conn™ Dock with Release Button (RAM-GDS-DOCK-U4CPU)
GDS® Uni-Conn™ Dock with Release Button (RAM-GDS-DOCK-U4CPU)
RAM-GDS-DOCK-U4CPU
Not what you need? See all RAM® Products here.
Features
Features

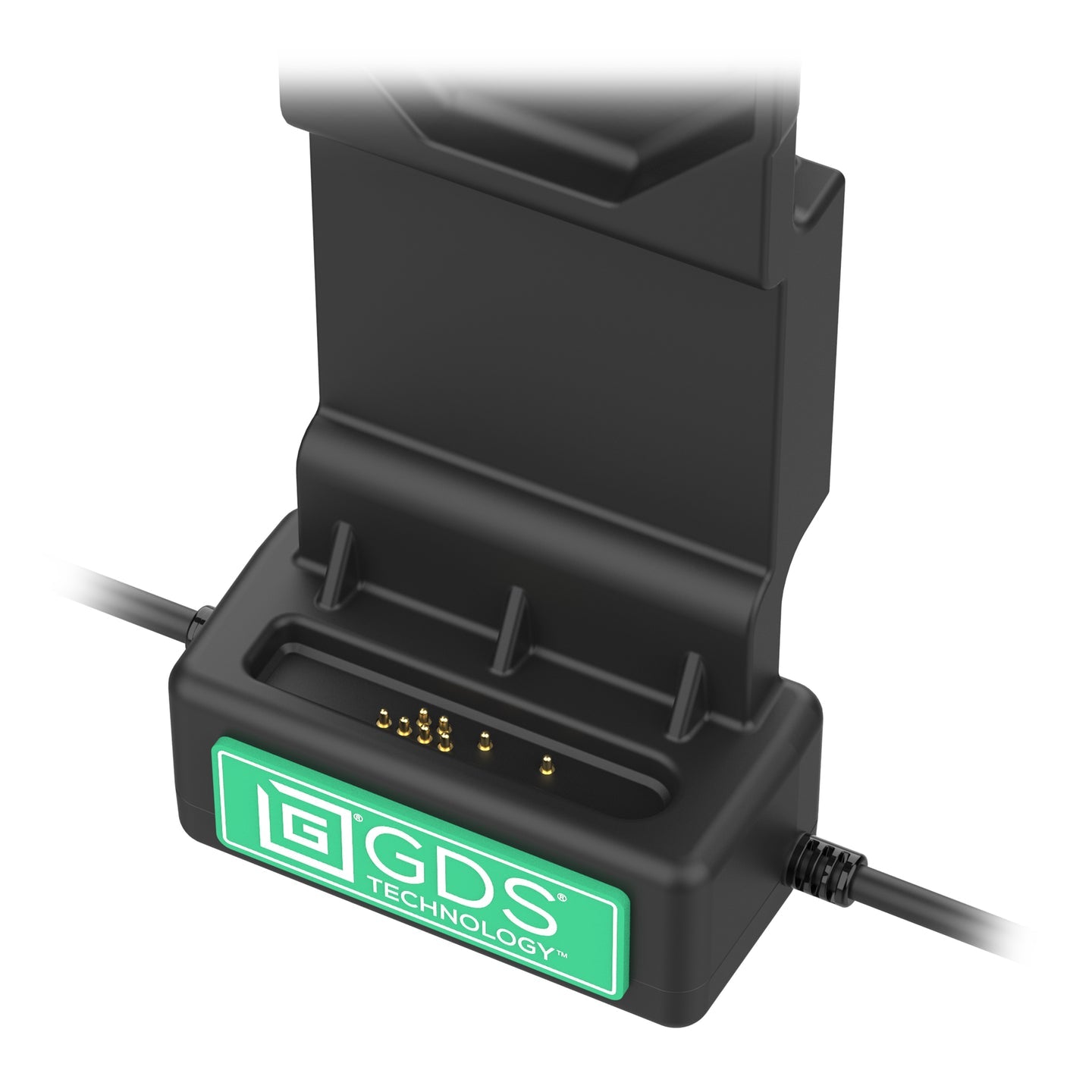

- Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- USB Type-C Female connector provides high-speed charging to the dock
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included:
- (2) #8-32 x 5/8" Machine Screws
- (2) #8-32 Nylock Nuts
- (1) Cable Clamp Kit
- Hole Pattern: 2-Hole AMPS: 1.912"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Output Voltage: 5V - 20V @ 3A
- Power Output: 60W
- Input Connector: USB Type-C
- Input Cable Length: 215mm
- Warranty: 3 year warranty
- Weight: 0.59 lb
- Additional Information: GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
Package Contents
Package Contents
- 1 x GDS® Uni-Conn™ Dock with Release Button (RAM-GDS-DOCK-U4CPU)
Assembly Guide
Assembly Guide

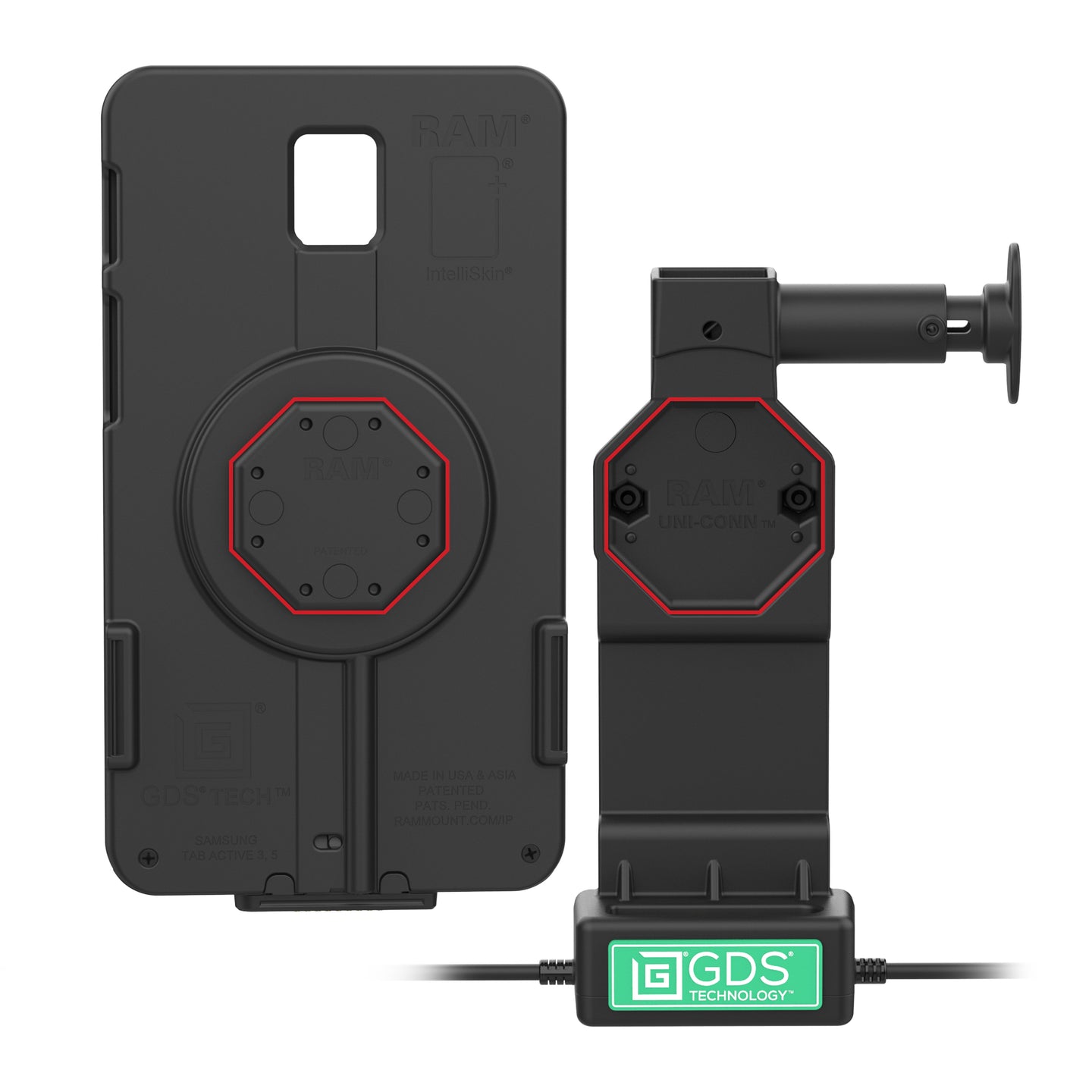

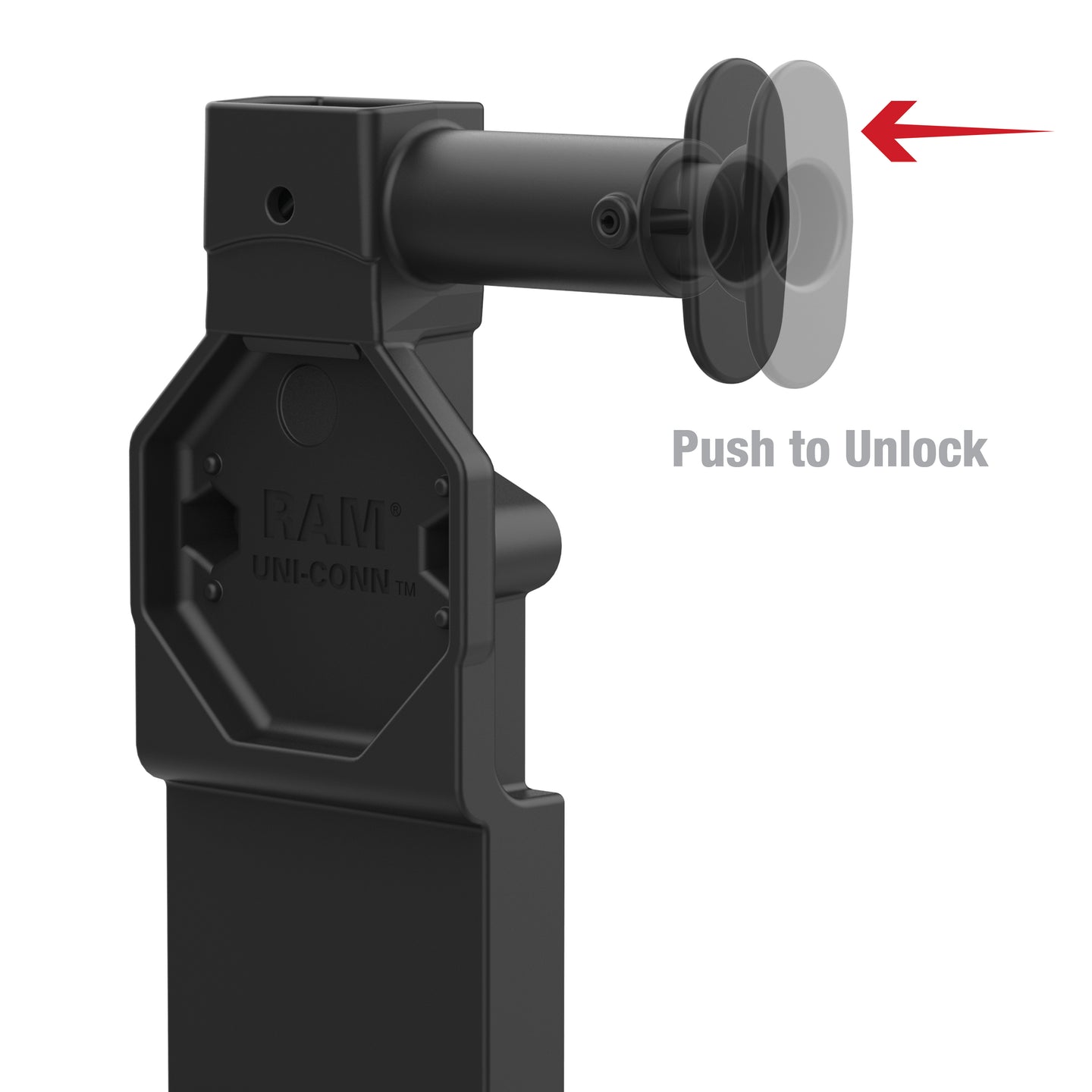

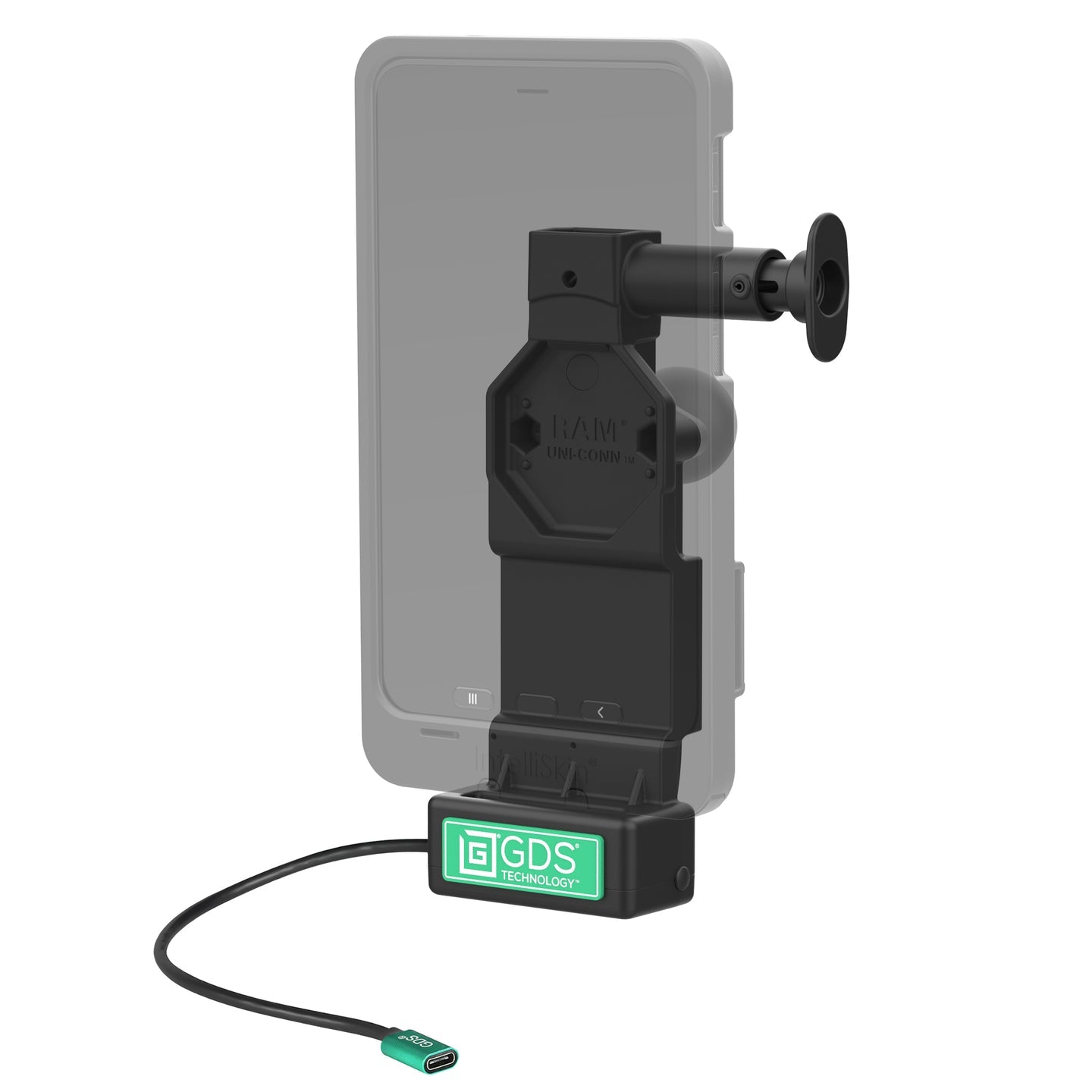

The GDS® Uni-Conn™ Dock with Release Button (RAM-GDS-DOCK-U4CPU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process; simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
