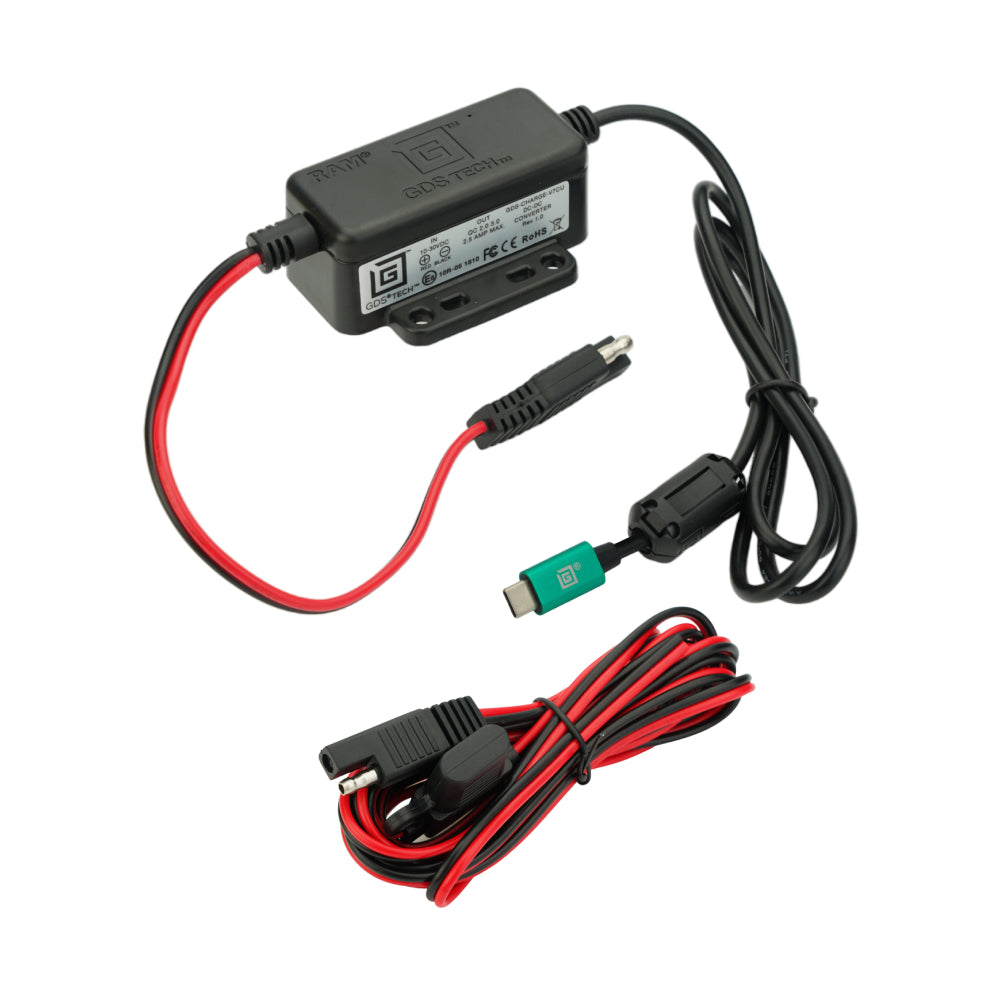

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V7CU)

GDS® Modular 10-30V Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V7CU)

RAM-GDS-CHARGE-V7CU

Regular price $113.00
Regular price Sale price $113.00
Tax included.

Features

  • Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5.42 - 9VDC
  • When upgrading devices, avoid rewiring by unplugging the power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Input Voltage: 10-30VDC
  • Output Voltage: 5.42-9VDC
  • Output Current: 2.5A max
  • Input Connector: Bare Wire
  • Input Cable Length: 2.5 Meters
  • Output Connector: USB Type-C Male
  • Output Cable Length: 1 Meter
  • Operating Temperature: -10°C to +70°C
  • Storage Temperature: -40°C to +70°C
  • regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-1113-5 Load Dump (Transient Voltage), Moisture Resistant
  • Certification: CE Certification, E-Mark Certification, RCM Certification, FCC Certification, UL 62368-1 Certification
  • Warranty: 3 year warranty
  • Weight: 0.47 lb
  • This charger will not support Power Delivery.
  • Visit Mounts Australia to view the complete product range of RAM Mounts we offer.

Package Contents

  • 1 x GDS® Modular 10-30V Hardwire Charger with Male USB Type-C (RAM-GDS-CHARGE-V7CU)
View full details

The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 9V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger does not support Power Delivery. Always Protected. Always Connected.®
