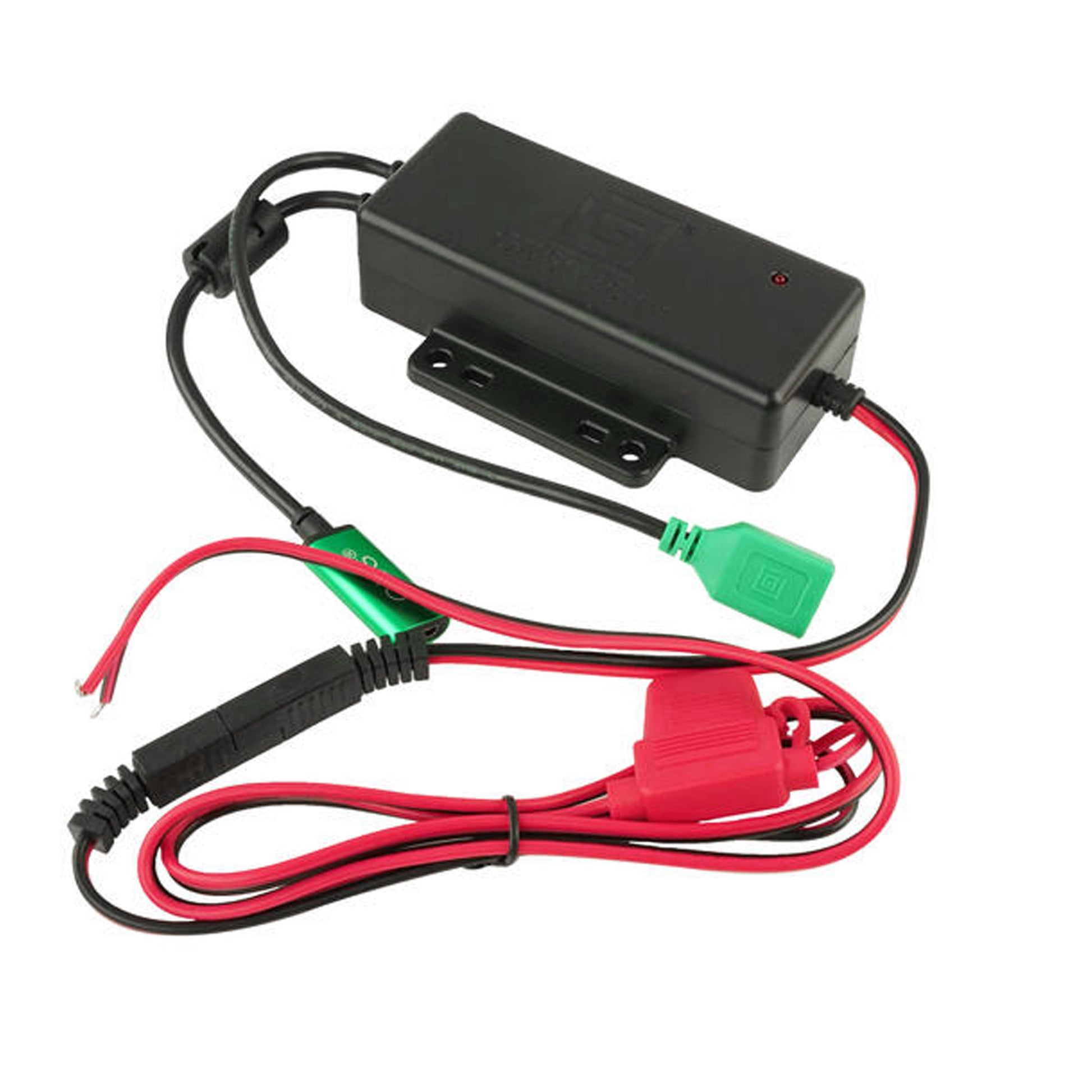

GDS® Hardwire Charger with USB Type-C Connector & USB Type A Port (RAM-GDS-CHARGE-V3FCA-2U)

GDS® Hardwire Charger with USB Type-C Connector & USB Type A Port (RAM-GDS-CHARGE-V3FCA-2U)

RAM-GDS-CHARGE-V3FCA-2U

$195.00
$195.00
Tax included.

Not what you need? See all RAM® Products here.

Features

  • Hardwire charger includes USB Type-C female connection and USB Type-A female connection with an input voltage of 10-28V
  • Connect a peripheral to USB Type-A port such as a keyboard, mouse, barcode scanner, or vehicle dock
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Packaging Type: Poly Bag
  • Input Voltage: 10-28VDC
  • Output Voltage:
    • 5V @ 1A (5W)
    • 9V @ 2A (18W)
    • 12V @ 2A (24W)
  • Input Connector:
    • Power: Female USB Type-C
    • Data: USB Type A (500ma)
  • Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
  • Output Cable Length: 150mm
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Regulatory: Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
  • Certifications:
    • FCC, IC, CE RCM, WEEE, RoHS Compliant
    • USB Power Delivery 2.0 and 3.0 Support
  • Warranty: 3 year warranty
  • Weight: 0.47 lb
  • Additional Information: To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Package Contents

  • 1 x GDS® Hardwire Charger with USB Type-C Connector & USB Type A Port (RAM-GDS-CHARGE-V3FCA-2U)
View full details

The GDS® hardwire charger with USB Type-C female connector and USB Type-A port is the ideal solution for providing power to any USB Type-C GDS® vehicle solution, while also allowing for the use of a USB Type-A peripheral - such as a keyboard, mouse, or barcode scanner. By connecting directly to the power source of your vehicle, the GDS® Charge™ accessory delivers USB Type-C power to your device with an input voltage of 10-28V, and allows you to connect a USB 2.0 accessory. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing a new GDS® Charge™ accessory. Always Protected. Always Connected.®
