GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm (RAM-GDS-CHARGE-V10-1U)
GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm (RAM-GDS-CHARGE-V10-1U)
RAM-GDS-CHARGE-V10-1U
Regular price
$60.00
Regular price
Sale price
$60.00
Unit price
per
Tax included.
Not what you need? See all RAM® Products here.
Features
Features
- Hardwire charger includes male 5.5mm barrel connector; 10-32VDC input range, 12VDC output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Product Weight: 0.31 lb
- Packaging Type: Poly Bag
- Input Voltage: 10-30VDC
- Output Voltage: 12V (+/- 300mV)
- Output Current: 3.5A max
- Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
- Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length: .2 Meters
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Regulatory: Over Voltage Protection | Short Circuit Protection | Reverse Polarity Protection | RoHS Compliance | WEEE Compliance | SAE J-1113-5 Load Dump (Transient Voltage) | Moisture Resistant | FCC, CE, UKCA, IC | 3A Inline ATC Fuse | 18AWG Copper Wire | IP66
- Certifications: E-Mark Certification | RCM Certification
Package Contents
Package Contents
- 1 x GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm (RAM-GDS-CHARGE-V10-1U)

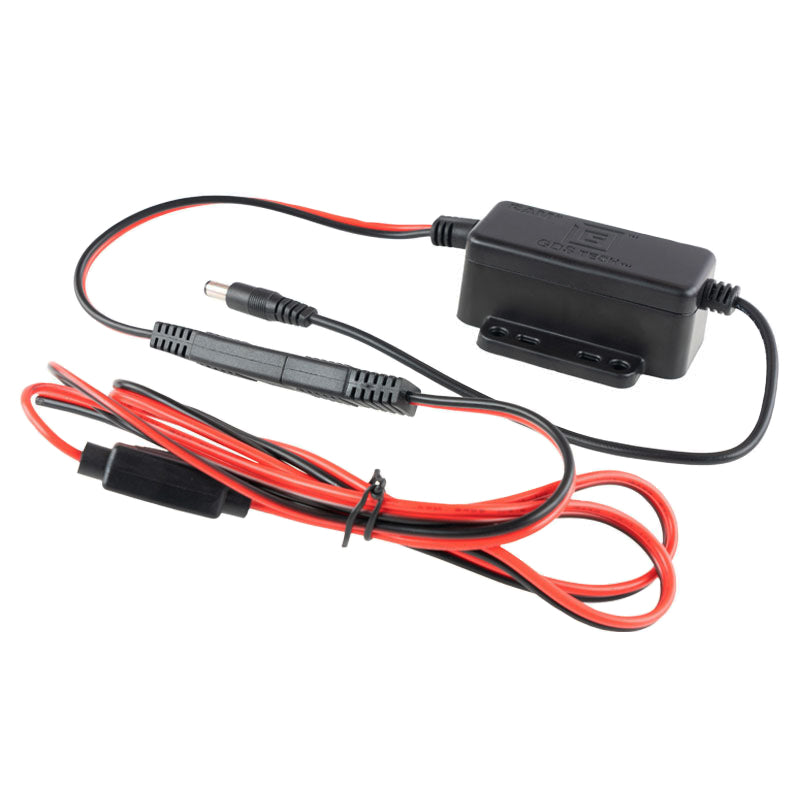

The GDS Modular Hardwire Charger with 5.5mm Large Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, making it ideal for most any vehicle applications. Always Protected. Always Connected.
