RAM® Aluminum Track Ball Base with T-Bolt Attachment - B Size (RAM-B-463-TRA1U)

RAM® Aluminum Track Ball Base with T-Bolt Attachment - B Size (RAM-B-463-TRA1U)

RAM-B-463-TRA1U

$30.00
$0.00 $30.00
Tax included.
Not what you need? See all RAM® Products here.

Features

  • Designed for track mounting systems including the RAM® Tough-Track™; includes 1" B size rubber ball with pin-lock and 1/4-20" threaded hole with T-bolt

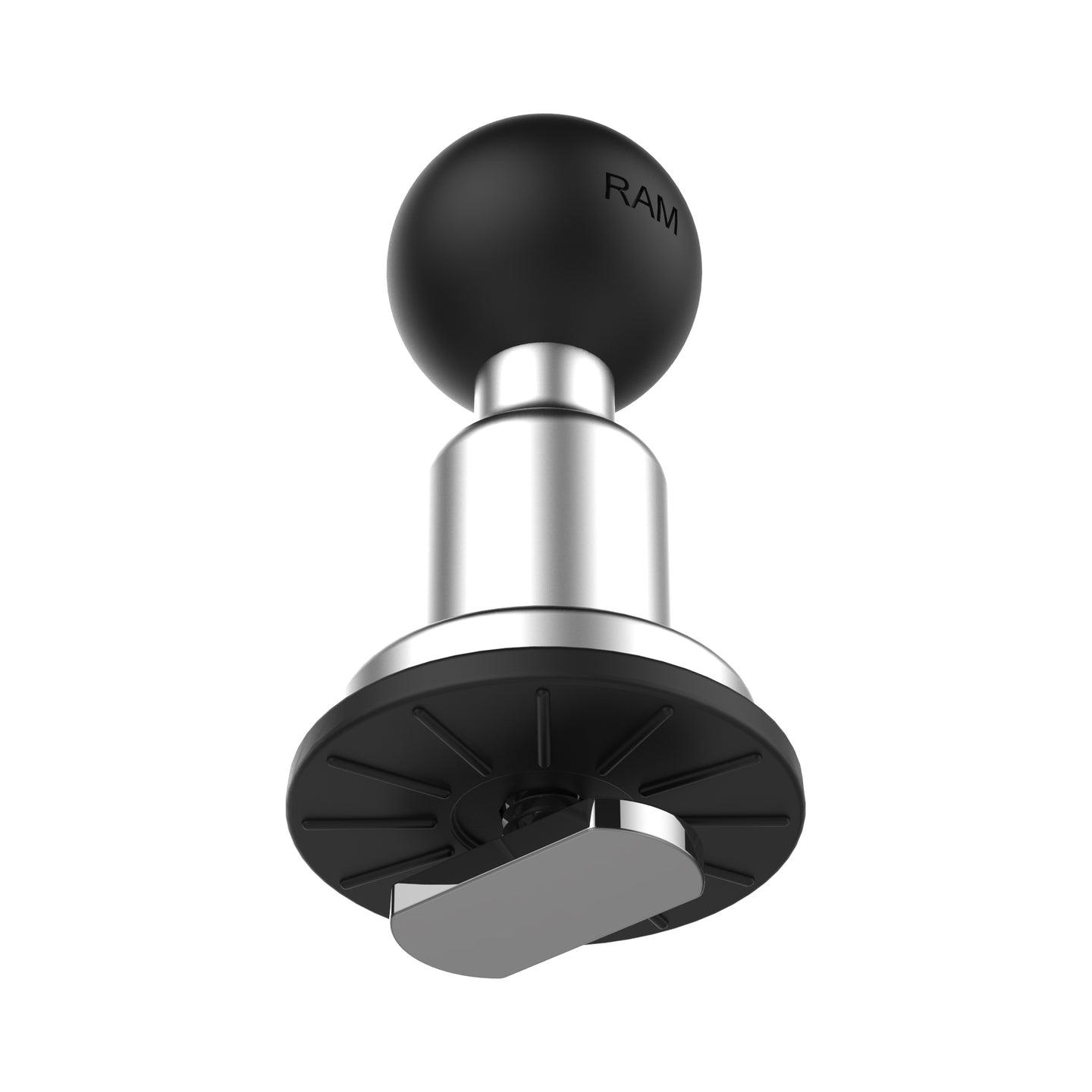

  • Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
  • Made of marine-grade aluminum, stainless steel components for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

  • Product Dimensions: Overall Height: 2.36", Plate Diameter: 1.25", Thread Depth: .875"
  • T Bolt Dimensions: .48" x .95"
  • Ball Size: B Size (1")
  • Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
  • Material: Marine-grade aluminum, Stainless steel
  • Packaging Type: Poly Bag
  • Weight: 0.15 lb

Package Contents

  • 1 x RAM® Aluminum Track Ball Base with T-Bolt Attachment - B Size (RAM-B-463-TRA1U)
View full details

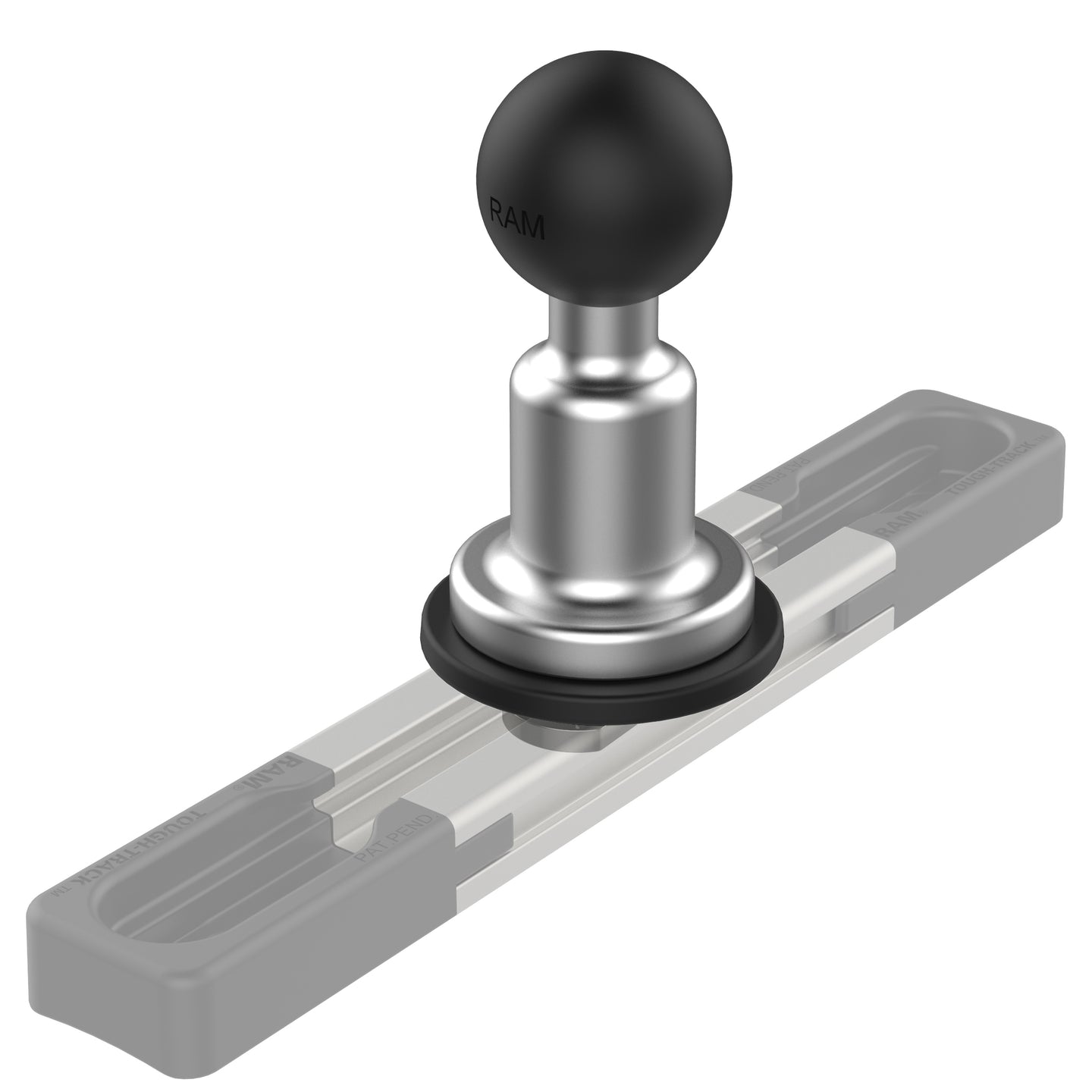

The RAM® Track Ball™ is made up of a B size 1" ball molded to a marine-grade aluminum base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball™ into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.
