RAM® Quick-Grip™ Pro Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD5U)
RAM® Quick-Grip™ Pro Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD5U)
RAM-B-408-75-1-PD5U
Not what you need? See all RAM® Products here.
Features
Features

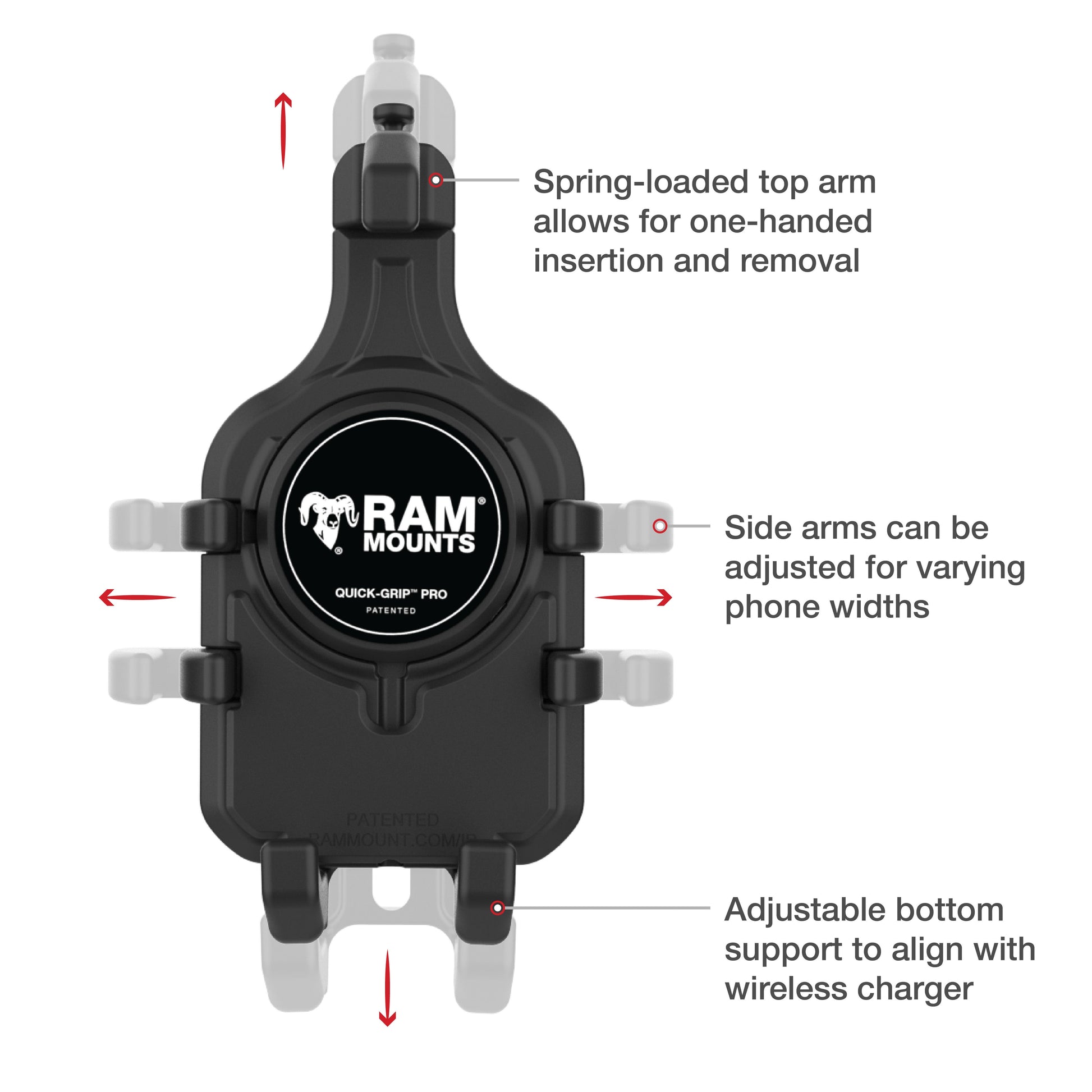

- Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand
- Includes medium Torque™ base that accommodates rails 3/4" to 1" in diameter and a medium length B size RAM® double socket arm

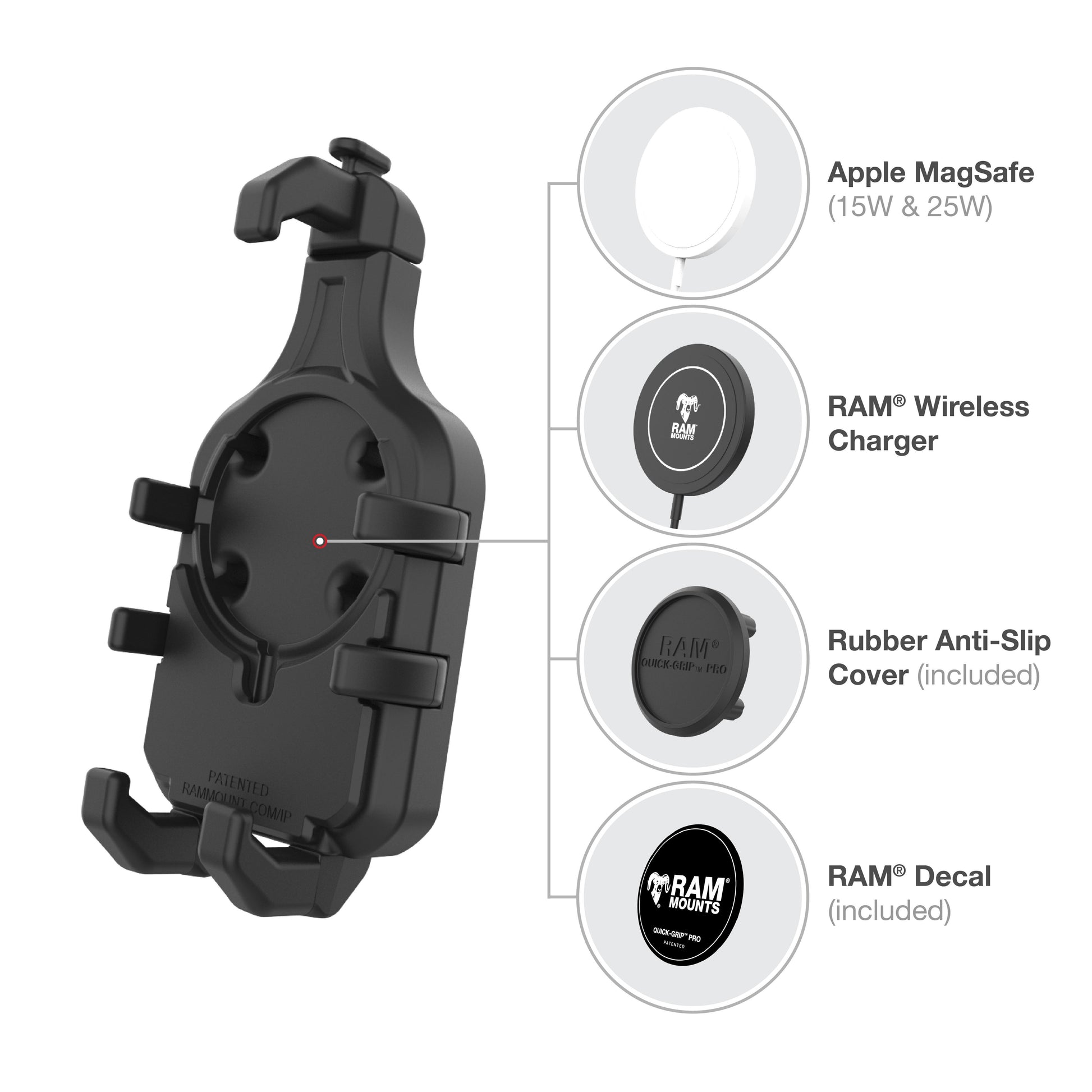

- Center cavity compatible with RAM® Qi2 Wireless Charger and Apple MagSafe puck; non-slip cover and puck adhesive included
- Comes with optional device tether for open cockpit environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs

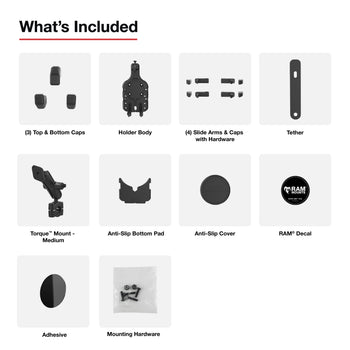

- Hardware Included:
- Assembly Hardware
- (2) #10-24 x 1" Socket Head Cap Screws
- (2) #10-24 Nylock Nuts
- (2) .75" Composite Bushings
- (2) .9" Composite Bushings
- (1) 88.9mm Rubber Strip
- (1) 5/32" Hex Key Wrench
- Holder Dimensions:
- Height Range: 5.5" - 7.75"
- Width Range: 2.625" - 3.75"
- Max Depth: .67"
- Clamp Range: .75" - 1" diameter
- Socket To Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials:
- Marine-grade aluminum
- High strength composite
- Stainless steel
- Packaging Type: Poly Bag
- Weight: 1.3 lb
- Additional Information: Top hook may block front facing camera and facial recognition on select phones.
Package Contents
Package Contents
- 1 x RAM® Quick-Grip™ Pro Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD5U)
The RAM® Quick-Grip™ Pro Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD5U) is a kit that installs to rails and features the next evolution in the RAM® Quick-Grip™ phone holder series. The phone holder is redesigned with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. It features an integrated cavity compatible with the RAM® Qi2 Wireless Charger or the Apple MagSafe puck, allowing you to turn the phone holder into a wireless charging solution. Not interested in charging? No problem! The included anti-slip cover ensures a flush fit when nothing is installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. The RAM® Torque™ mounting base is compatible with rails 3/4" to 1" in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM® ball and socket system allows for articulation at both ends of the double socket arm, creating almost infinite adjustment and perfect viewing angles. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
