RAM® Quick-Grip™ XL Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD4U)
RAM® Quick-Grip™ XL Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD4U)
RAM-B-408-75-1-PD4U
Not what you need? See all RAM® Products here.
Features
Features

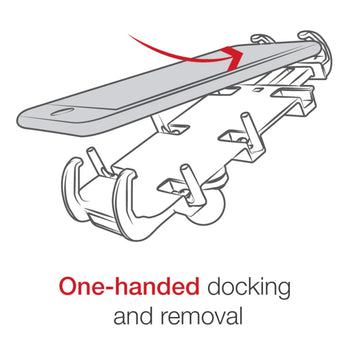

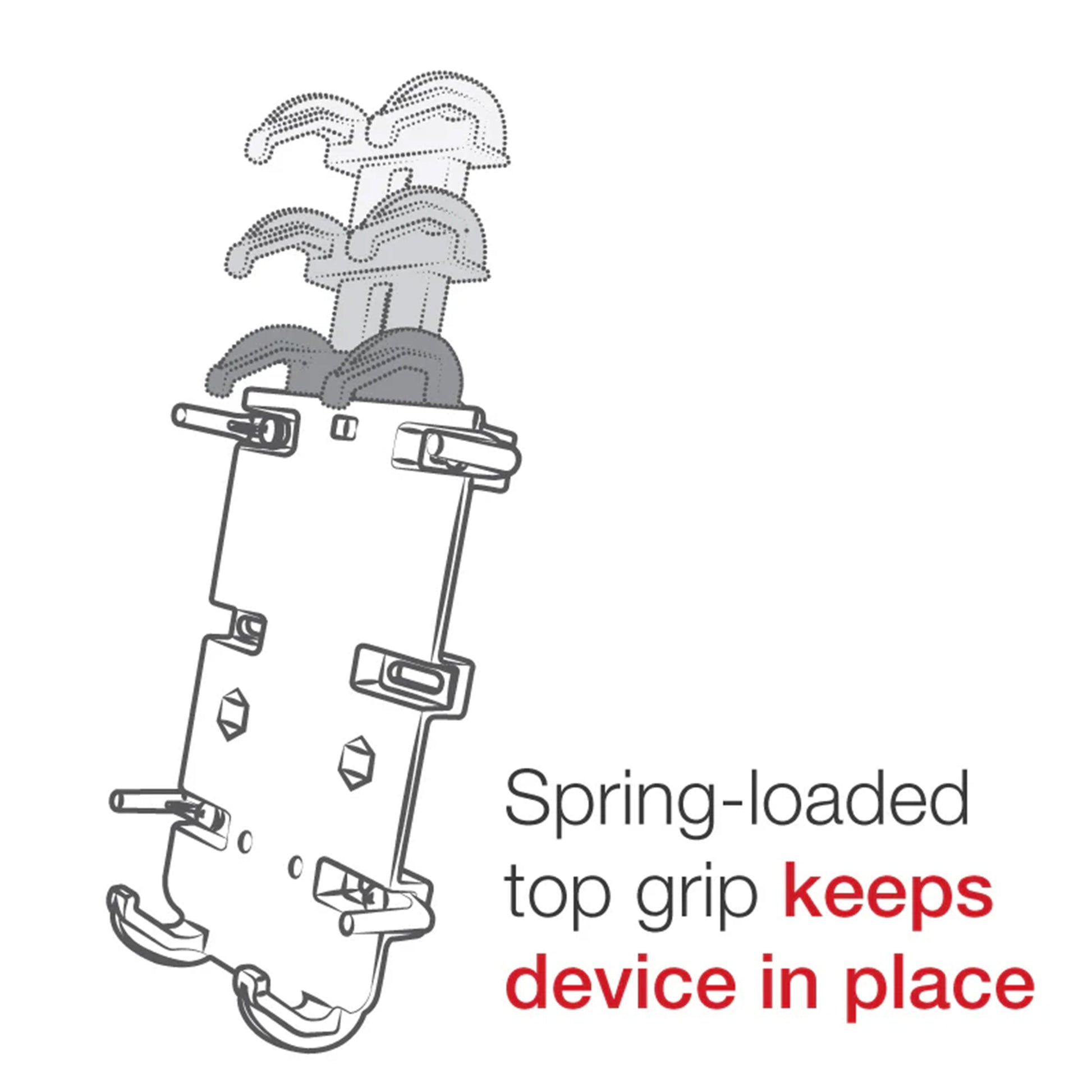

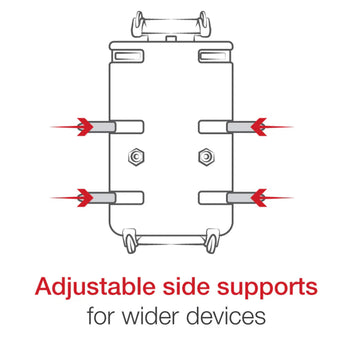

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand
- Includes medium Torque™ base that accommodates rails 3/4" to 1" in diameter and a medium length B size RAM® double socket arm

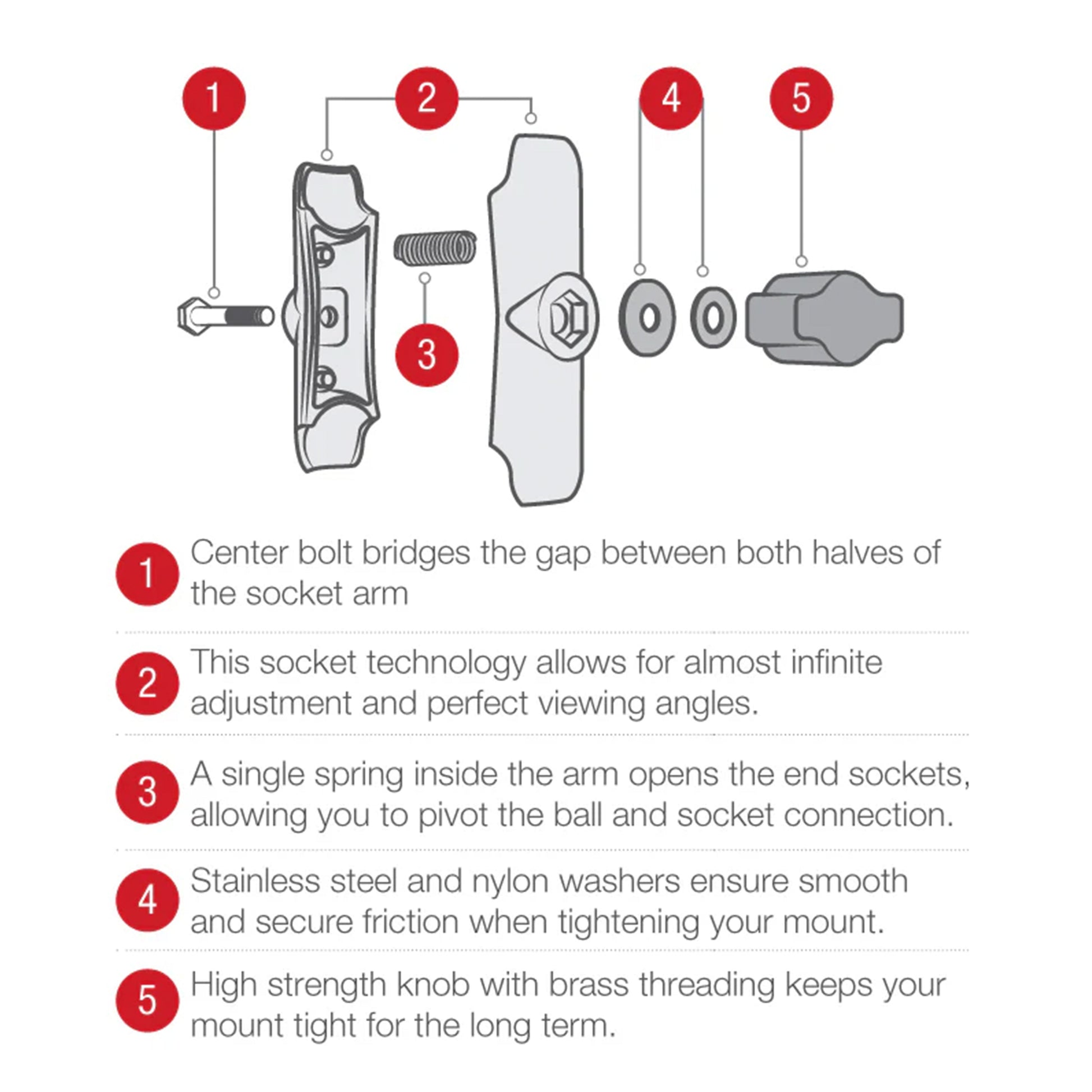

- Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Hardware Included:
- Assembly Hardware
- (2) #10-24 x 1" Socket Head Cap Screws
- (2) #10-24 Nylock Nuts
- (2) .75" Composite Bushings
- (2) .9" Composite Bushings
- (1) 88.9mm Rubber Strip
- (1) 5/32" Hex Key Wrench
- Holder Dimensions:
- Height Range: 5.75" - 7.25"
- Width Range: 2.625" - 3.625"
- Max Depth: .72"
- Clamp Range: .75" - 1" diameter
- Socket To Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials:
- Marine-grade aluminum
- High strength composite
- Stainless steel
- Packaging Type: Poly Bag
- Weight: 0.97 lb
Package Contents
Package Contents
- 1 x RAM® Quick-Grip™ XL Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD4U)
Assembly Guide
Assembly Guide
The RAM® Quick-Grip™ XL Phone Mount with Medium Torque™ Base - Medium (RAM-B-408-75-1-PD4U) is a universal phone mounting kit with a base built to securely install to rails. The spring-loaded RAM® Quick-Grip™ allows users to easily insert and remove their phone with one hand, while the adjustable side supports provide a secure fit. The RAM® Torque™ mounting base is compatible with rails 3/4" to 1" in diameter. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert lock nuts to prevent loosening in high vibration environments. The RAM® ball and socket system allows for articulation at both ends of the double socket arm, creating almost infinite adjustment and perfect viewing angles. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
