RAM® Quick-Grip™ XL Phone Mount with Small Tough-Claw™ Base - Medium (RAM-B-400-PD4U)
RAM® Quick-Grip™ XL Phone Mount with Small Tough-Claw™ Base - Medium (RAM-B-400-PD4U)
RAM-B-400-PD4U
Not what you need? See all RAM® Products here.
Features
Features

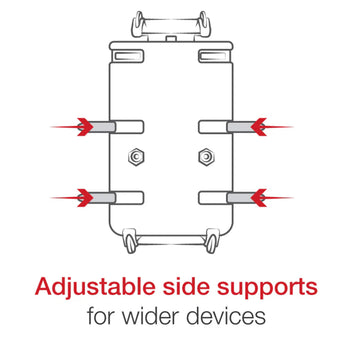

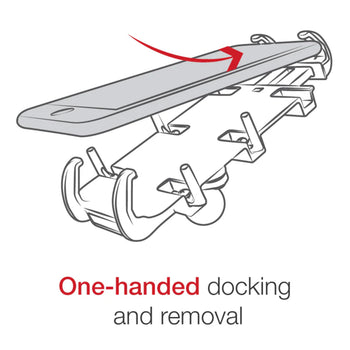

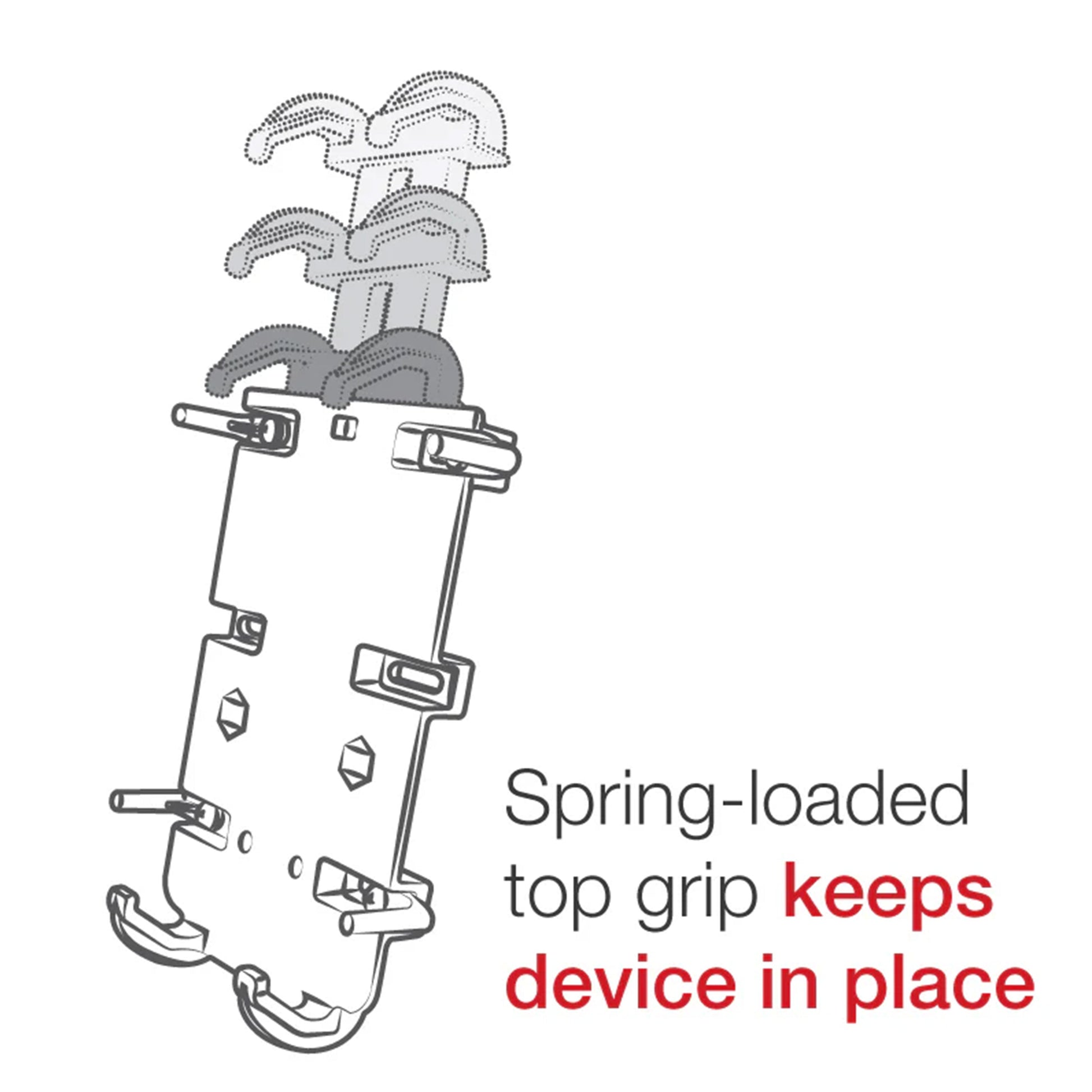

- Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones; easily insert and remove your phone with one hand
- Small Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

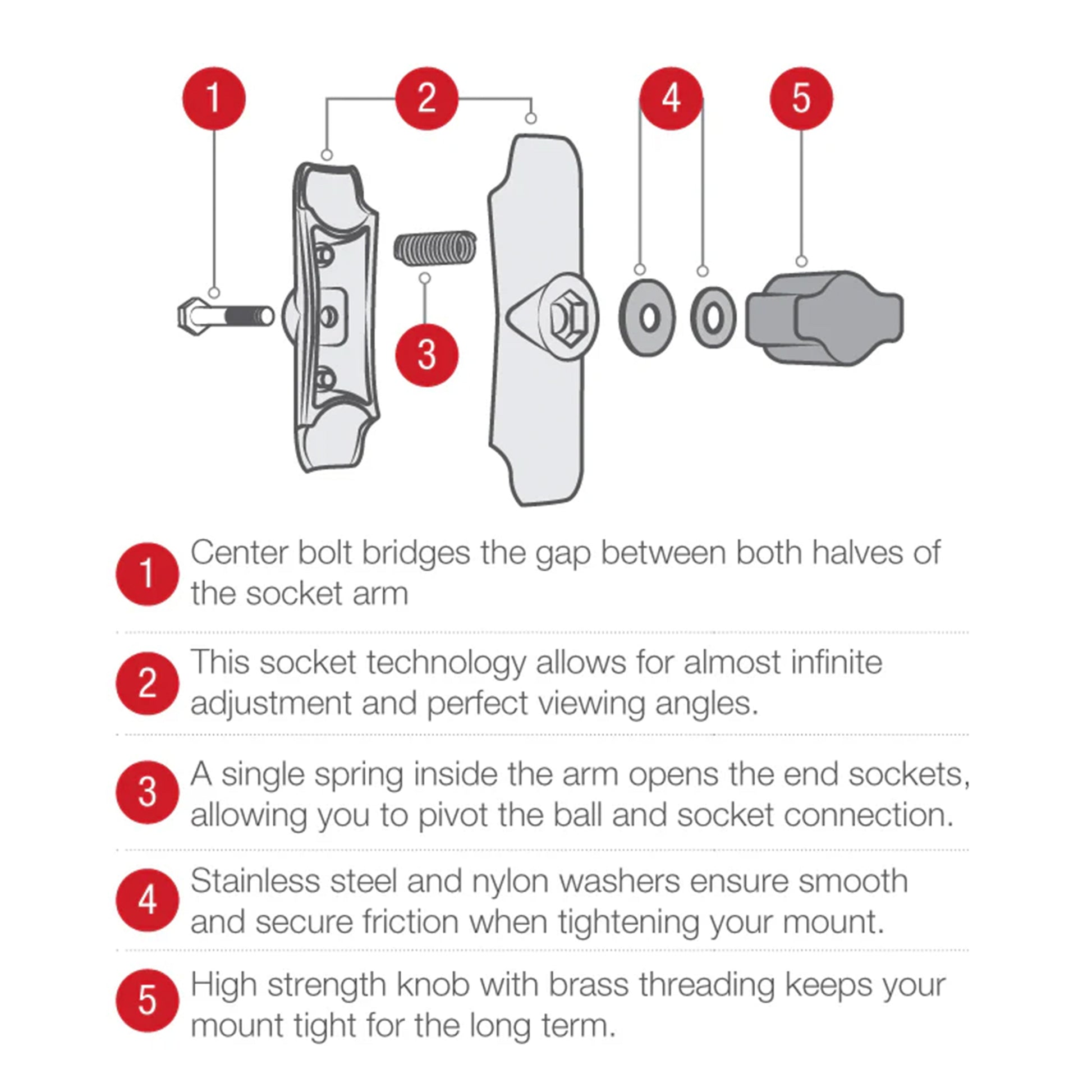

- Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Tech Specs
Tech Specs
- Hardware Included: Assembly Hardware
- Holder Dimensions:
- Height Range: 5.75" - 7.25"
- Width Range: 2.625" - 3.625"
- Max Depth: .72"
- Clamp Range: .625" - 1.14" diameter
- Socket To Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials:
- Marine-grade aluminum
- High strength composite
- Packaging Type: Poly Bag
- Weight: 1.04 lb
Package Contents
Package Contents
- 1 x RAM® Quick-Grip™ XL Phone Mount with Small Tough-Claw™ Base - Medium (RAM-B-400-PD4U)
Assembly Guide
Assembly Guide

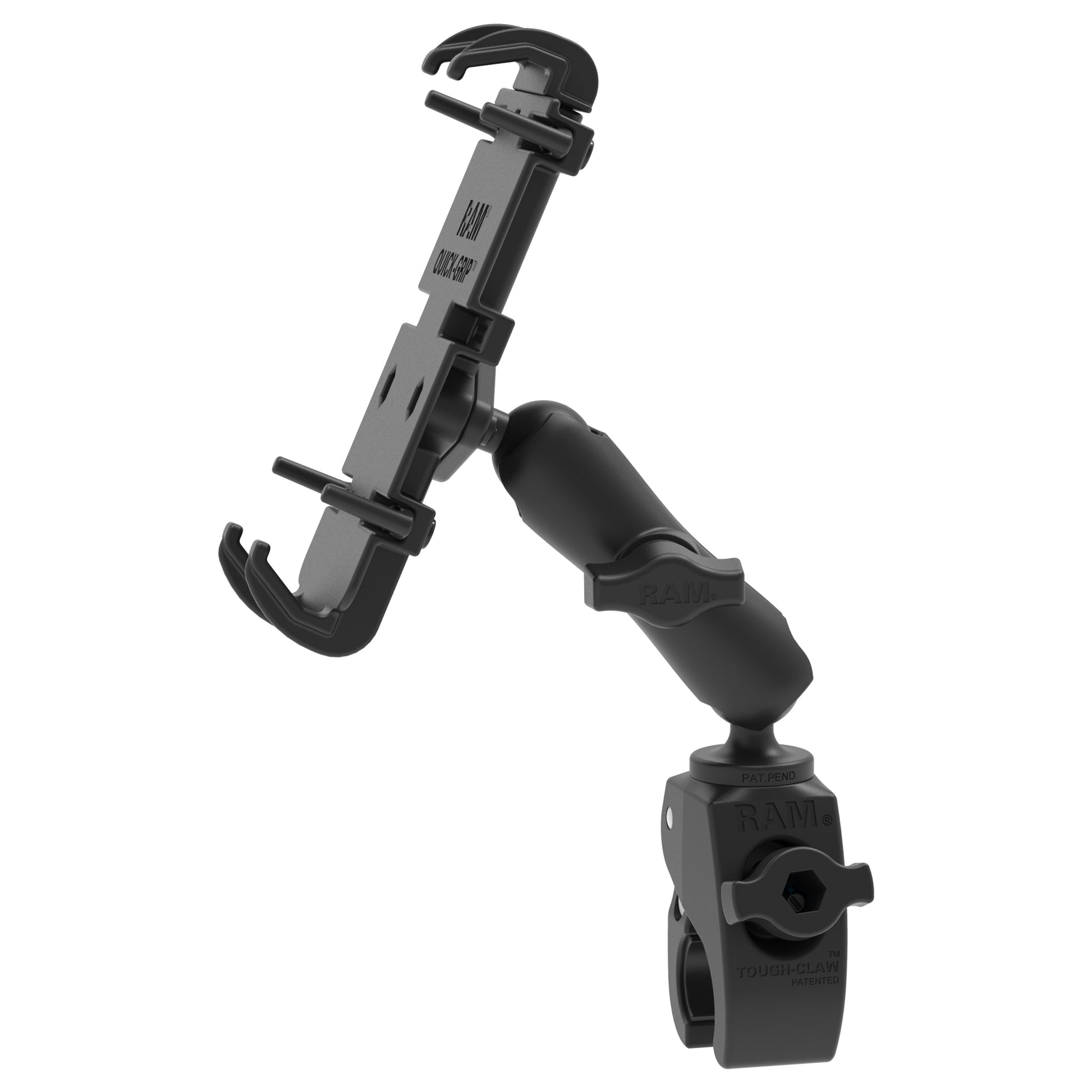

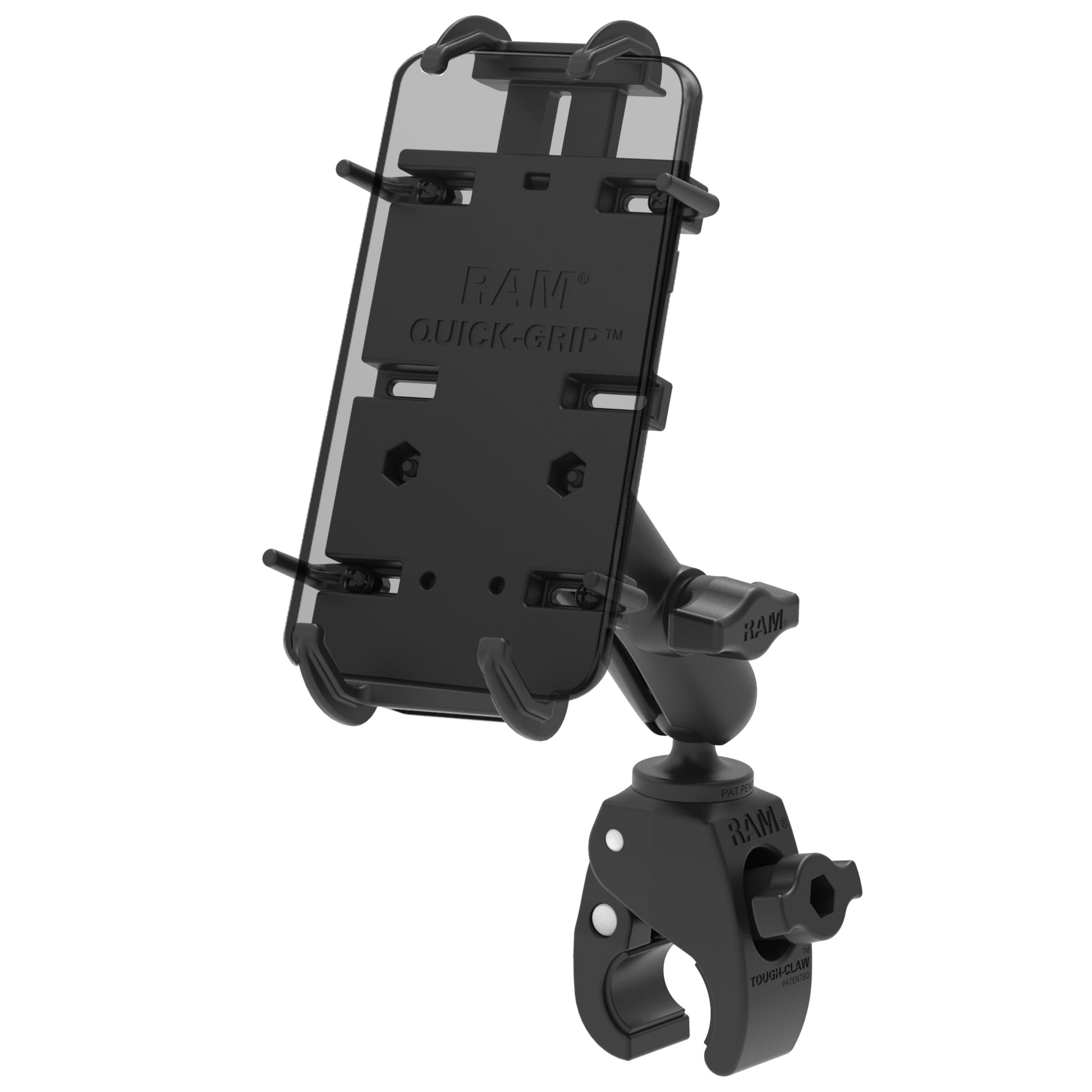

The RAM® Quick-Grip™ XL Phone Mount with Small Tough-Claw™ Base - Medium (RAM-B-400-PD4U) is a universal phone mounting kit with a base built to quickly clamp onto rails. The spring-loaded RAM® Quick-Grip™ allows users to easily insert and remove their phone with one hand, while the adjustable side supports for a secure fit. The RAM® Tough-Claw™ is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars, ranging from .625" to 1.14" in outer diameter. The RAM® ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
