RAM® X-Grip® with Twist-Lock™ Pivot Suction for 9"-11" Tablets - Medium (RAM-B-189-PIV1-UN9U)
RAM® X-Grip® with Twist-Lock™ Pivot Suction for 9"-11" Tablets - Medium (RAM-B-189-PIV1-UN9U)
RAM-B-189-PIV1-UN9U
Regular price
$369.00
Regular price
Sale price
$369.00
Unit price
per
Tax included.
Not what you need? See all RAM® Products here.
Tech Specs
Tech Specs
- Hardware Included: Assembly Hardware

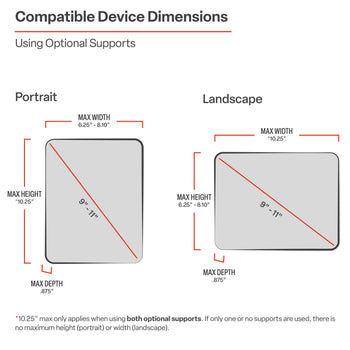

- Holder Dimensions:

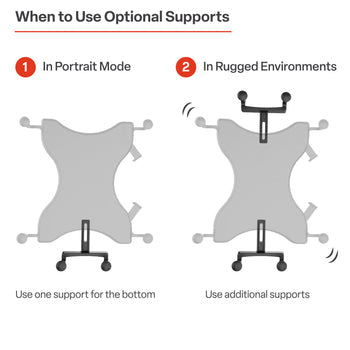

- Max Height: 10.25" (using optional supports)
- Width Range: 6.25" - 8.1"
- Max Depth: .875"
- Suction Size: (2) 3.3" Diameter Bases, Total Width 7.95"
- Socket To Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials:
- Powder coated steel
- Marine-grade aluminum
- High strength composite
- Packaging Type: Poly Bag
- Weight: 1.9 lb
- Additional Information: *The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
Package Contents
Package Contents
- 1 x RAM® X-Grip® with Twist-Lock™ Pivot Suction for 9"-11" Tablets - Medium (RAM-B-189-PIV1-UN9U)

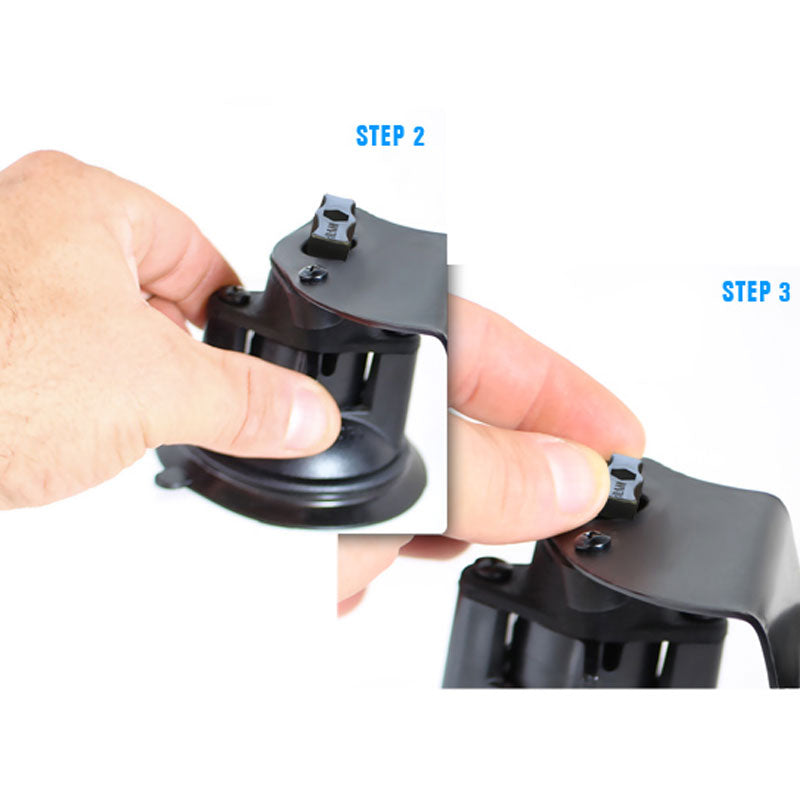

Assembly Guide
Assembly Guide

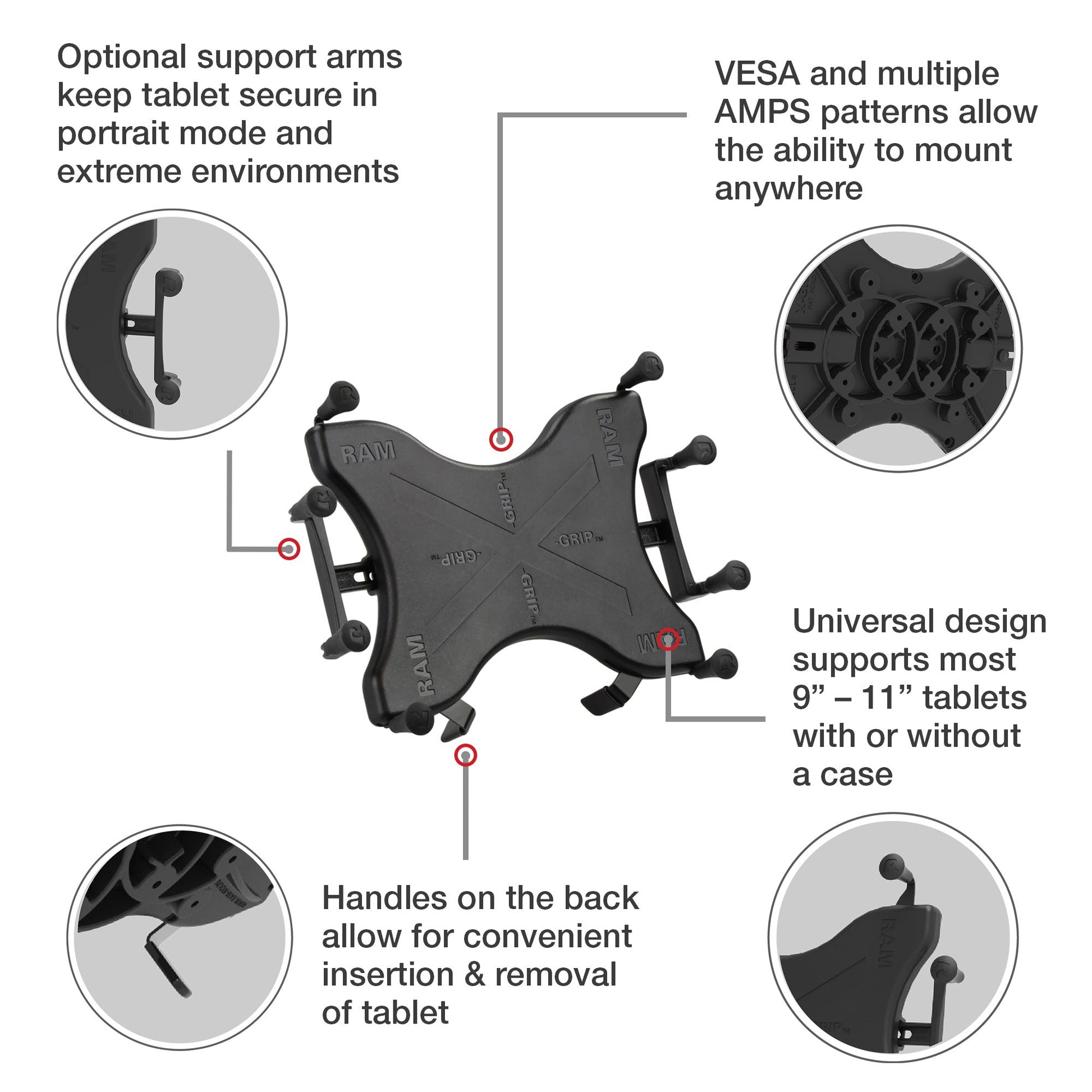

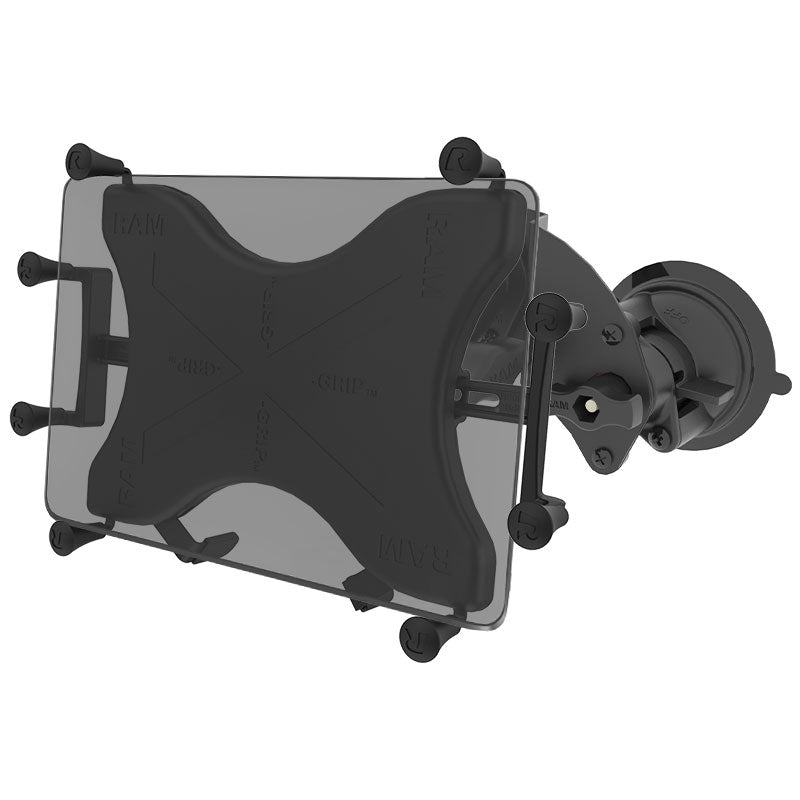

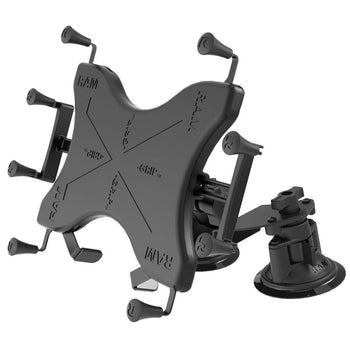

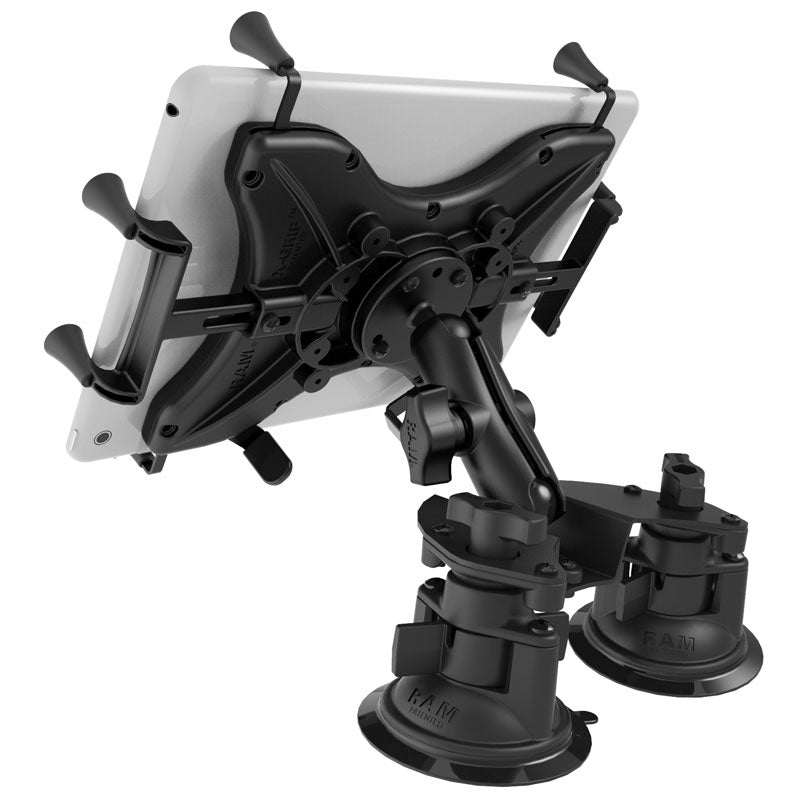

The RAM-B-189-PIV1-UN9U consists of a dual articulating 3.3" twist lock suction cup base, double socket arm, and universal X-Grip® cradle for 9"-11" Tablets. The dual articulating suction cup base is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. The X-Grip® cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
