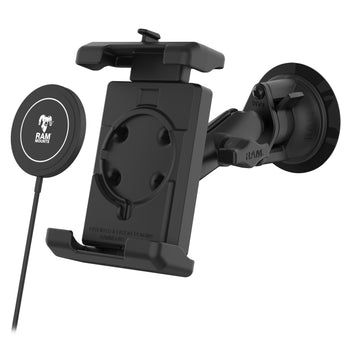

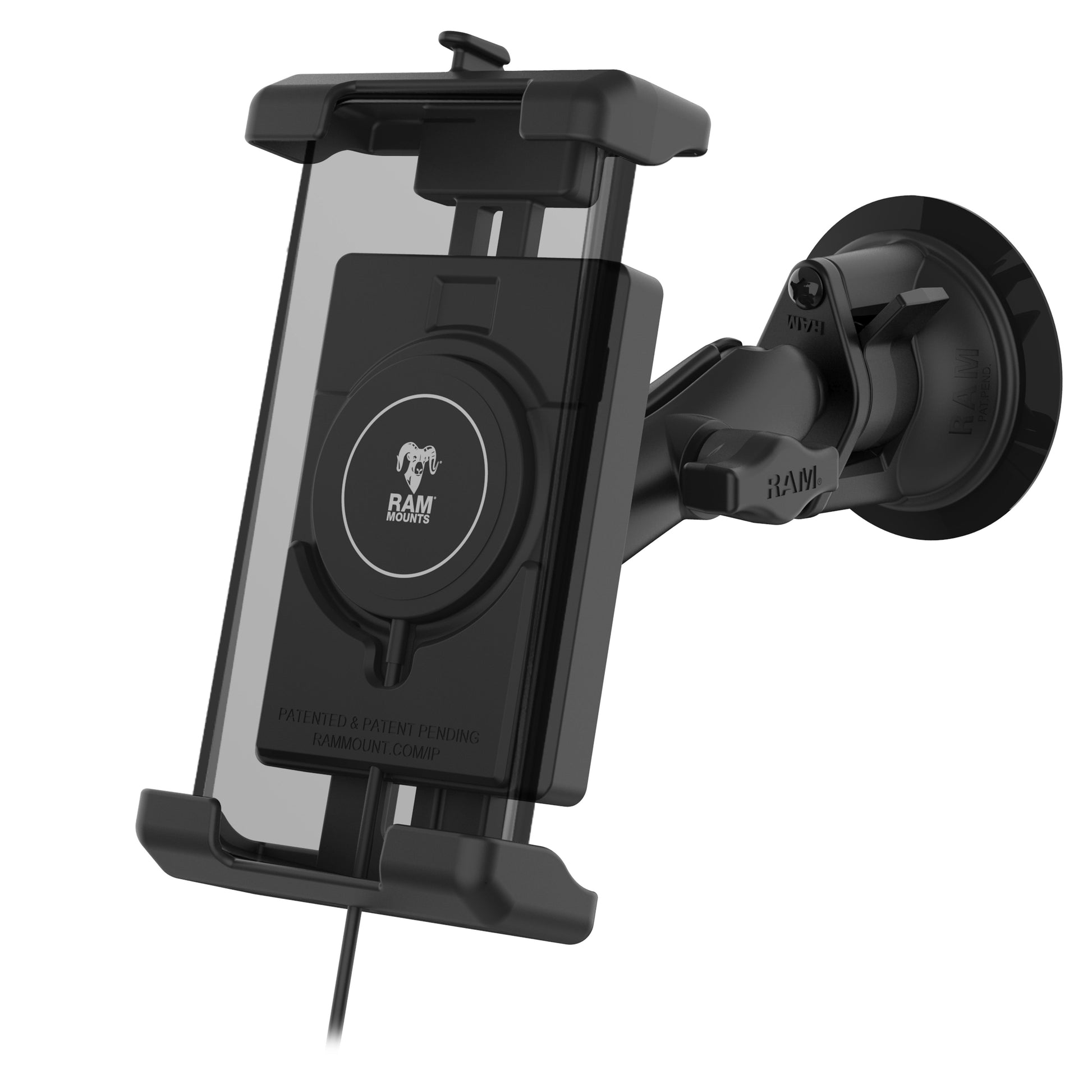

RAM® Quick-Grip™ Pro XL Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD7-W2MU)
RAM® Quick-Grip™ Pro XL Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD7-W2MU)
RAM-B-166-PD7-W2MU
Not what you need? See all RAM® Products here.
Features
Features

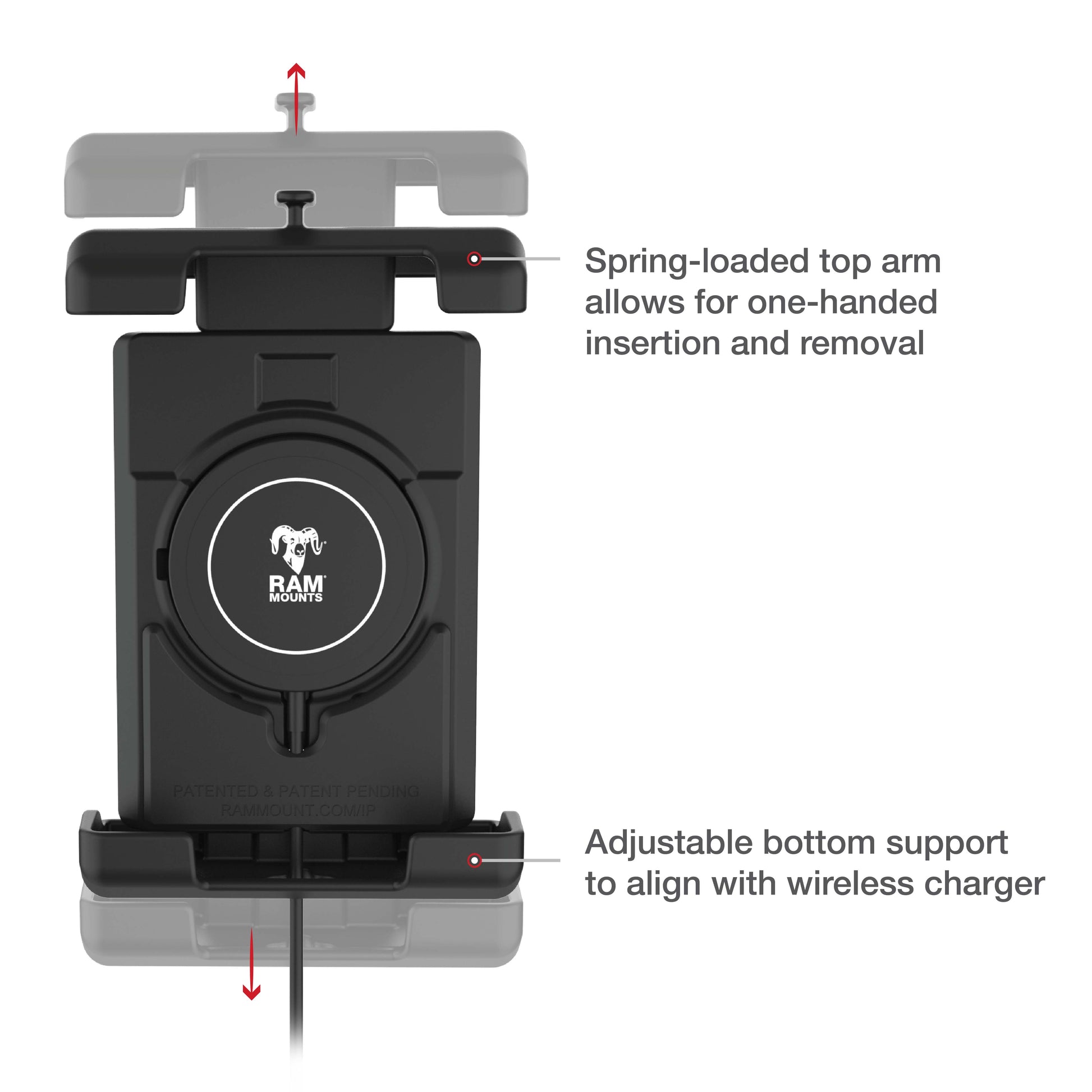

- Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand

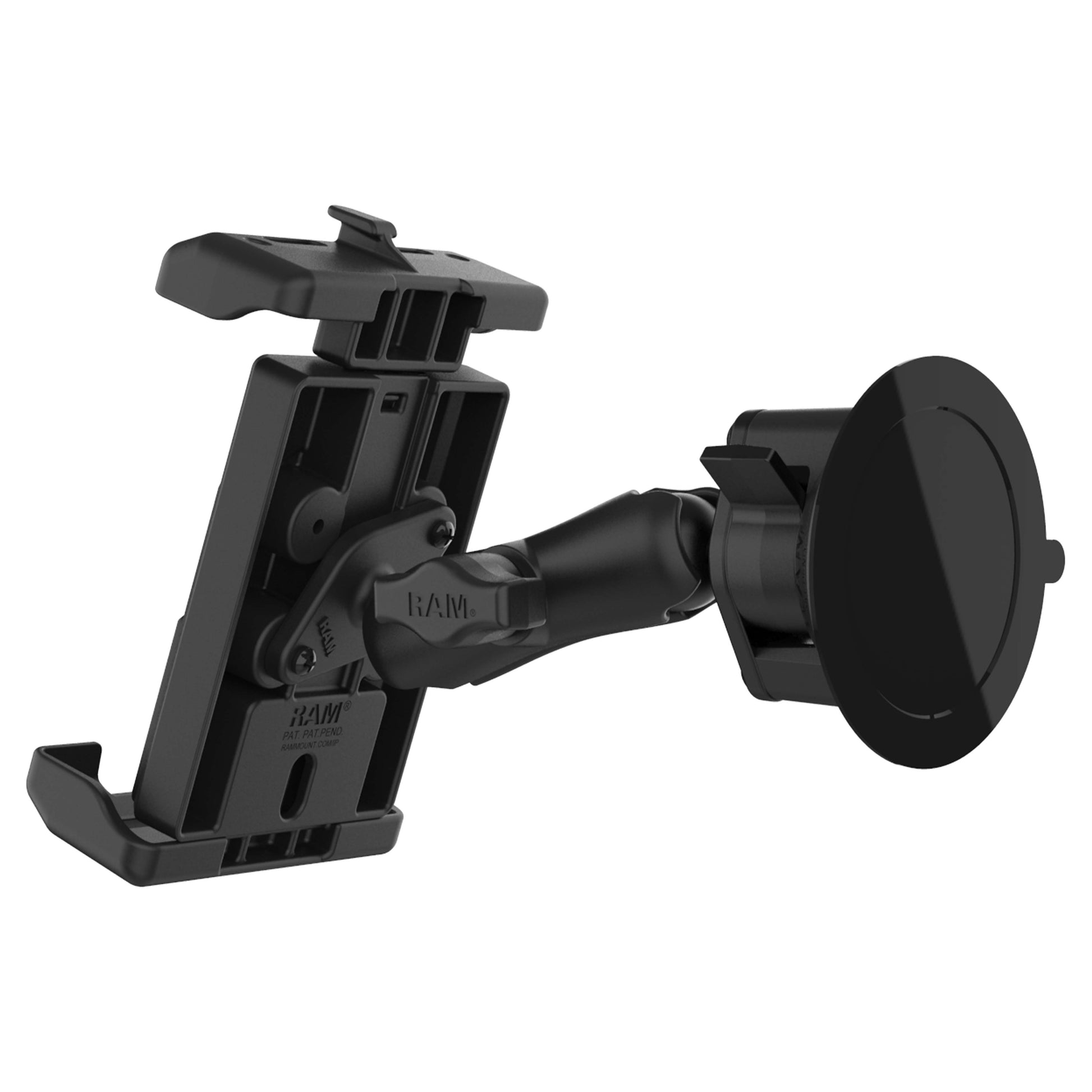

- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

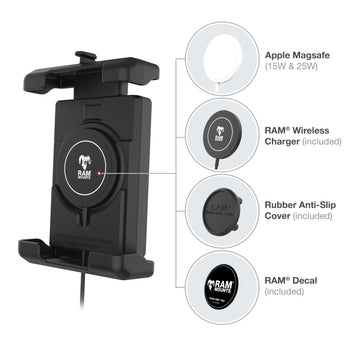

- Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
- Made of high-strength composite for durability and reliability in the most demanding environments
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Tech Specs
Tech Specs
- Hardware Included: Assembly Hardware
- Holder Dimensions:
- Height Range: 5.375" - 7"
- Width Range: 2.75" - 3.5"
- Max Depth: .75"
- Suction Size: 3.3" Diameter
- Socket To Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials:
- Marine-grade aluminum
- High strength composite
- Packaging Type: Poly Bag
- Power Specifications:
- Operating Frequency: 360KHZ
- Stand-by Consumption ~ 0.008A / 8mA @5VDC
- 80% Wireless Power Transfer Efficiency or Greater
- Supports USB 2.0 BC1.2 Power Supply (5V)
- Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
- Input Voltage:
- USB 5V @ 3A
- QC2.0 9V @ 2.22A
- USB PD 2.0 5-15V @ 2A
- Power Output:
- BPP - 5W
- EPP - 7.5W
- MPP - 15W
- Output Connector: USB Type-C Male with USB-A Adapter
- Output Cable Length: 1 Meter
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Regulatory:
- Over Current Protection
- Short circuit Protection
- Over Temperature Protection
- RoHS Compliance
- WEEE Compliance
- Certifications:
- IP67
- SAE J1455
- FCC Certification
- CE Certification
- E-Mark Certification
- RCM Certification
- Weight: 1.25 lb
- Additional Information: The included wireless charger will support up to 8mm charging distance between puck and device.

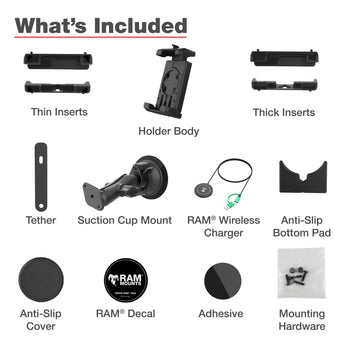

Package Contents
Package Contents
- 1 x RAM® Quick-Grip™ Pro XL Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD7-W2MU)

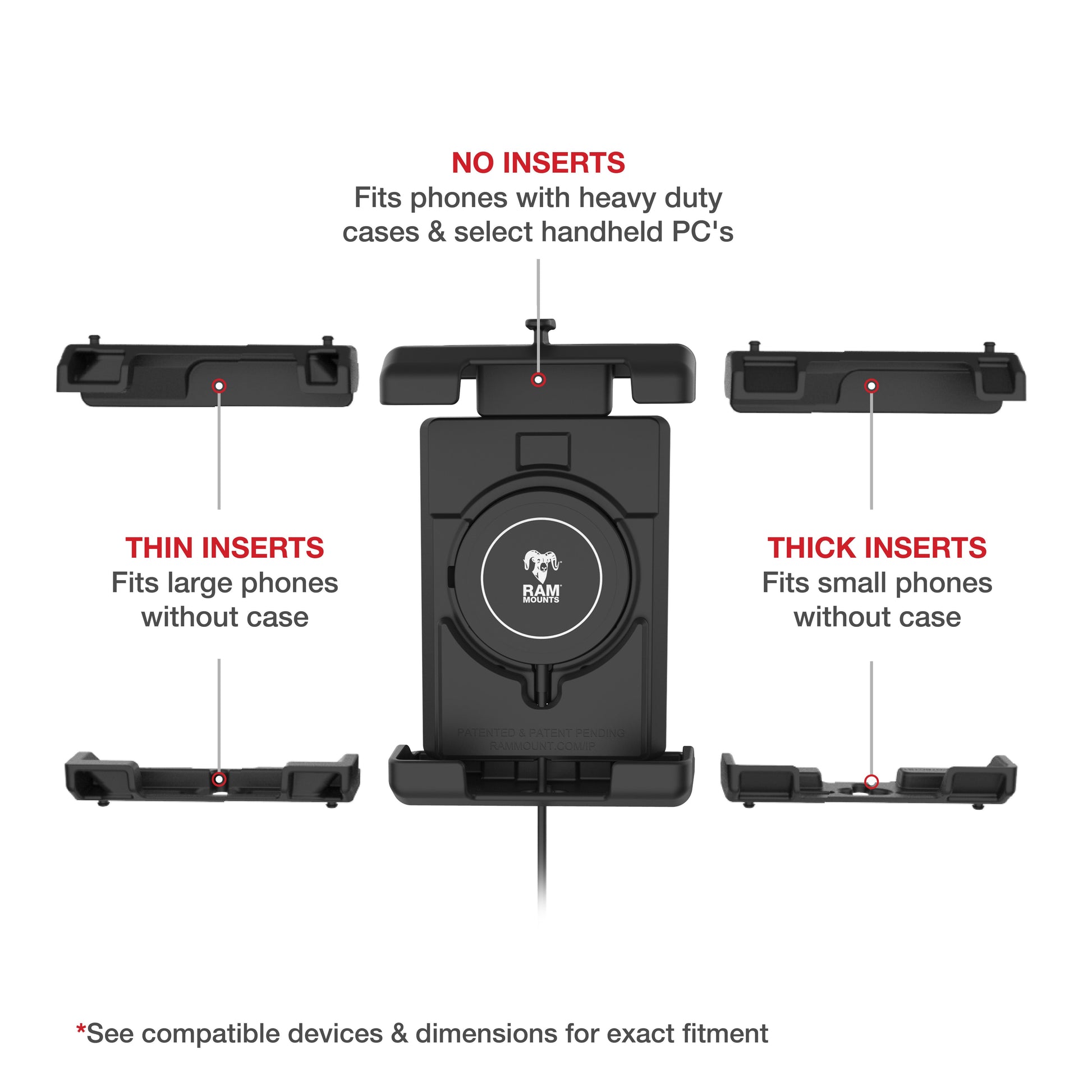

The RAM® Quick-Grip™ Pro XL Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD7-W2MU) is the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a 3.3" diameter RAM® Twist-Lock™ suction cup base that easily installs onto any non-porous surface. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
