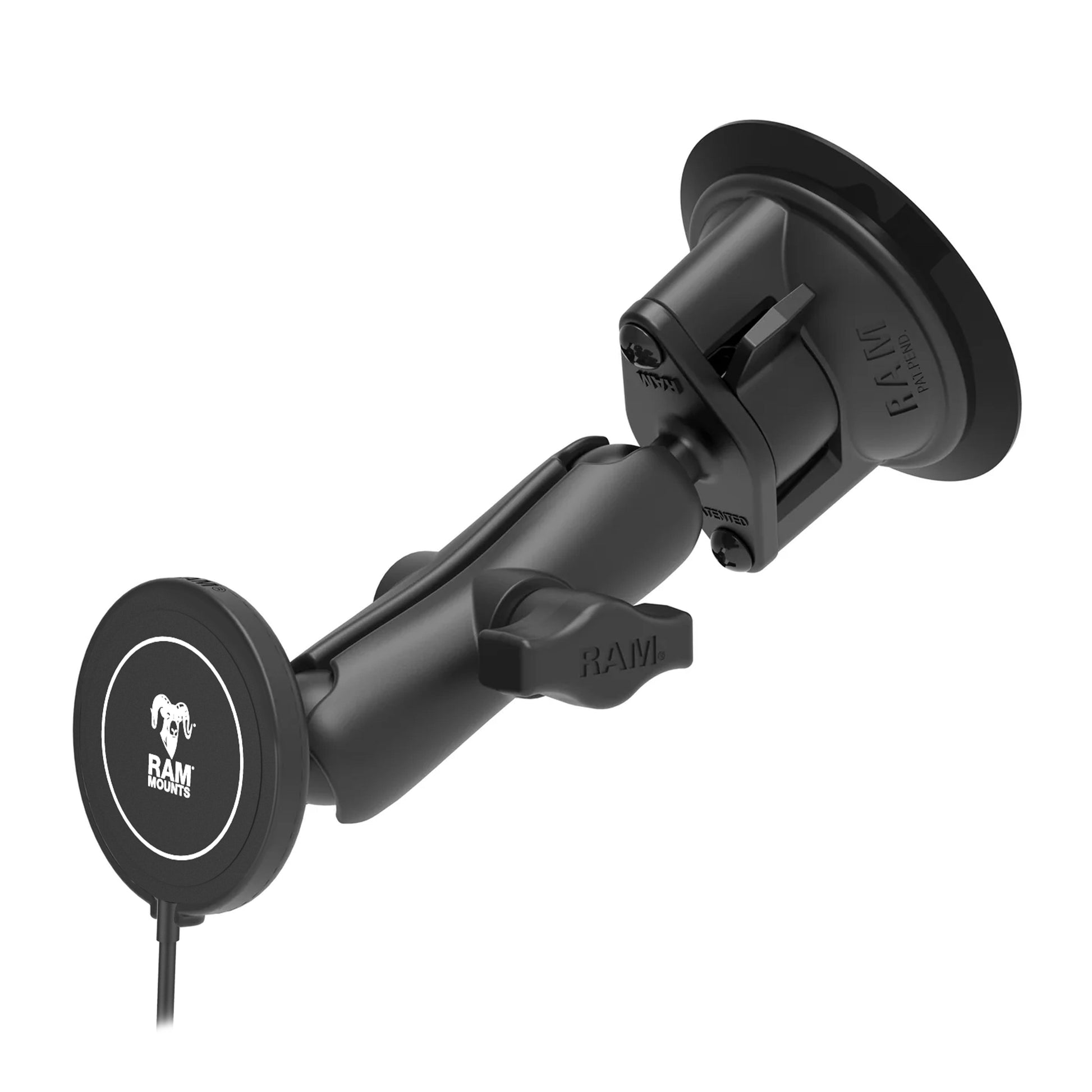

RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU)

RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU)

RAM-B-166-AP-MAG-1-W2MU

$193.00
$193.00
Tax included.

Not what you need? See all RAM® Products here.

Features

  • Wireless charging bundle built for windshields and other non-porous surfaces
  • 15W Qi2 fast charging for efficient power delivery
  • Includes RAM® Twist-Lock™ suction cup base and medium length B size RAM® double socket arm
  • Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Tech Specs

  • Hardware Included:
    • Assembly Hardware
    • (1) RAM® Qi2 Wireless Charging Puck
  • Suction Size: 3.3" Diameter
  • Socket To Socket Length: 3"
  • Ball Size: B Size (1")
  • Weight Capacity:
    • Standard Use: 2 lbs
    • Heavy-Duty Use: 1 lb
  • Materials:
    • Marine-grade aluminum
    • High strength composite
  • Packaging Type: Poly Bag
  • Power Specifications:
    • Operating Frequency: 360KHZ
    • Stand-by Consumption ~ 0.008A / 8mA @5VDC
    • 80% Wireless Power Transfer Efficiency or Greater
    • Supports USB 2.0 BC1.2 Power Supply (5V)
    • Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
  • Input Voltage:
    • USB 5V @ 3A
    • QC2.0 9V @ 2.22A
    • USB PD 2.0 5-15V @ 2A
  • Power Output:
    • BPP - 5W
    • EPP - 7.5W
    • MPP - 15W

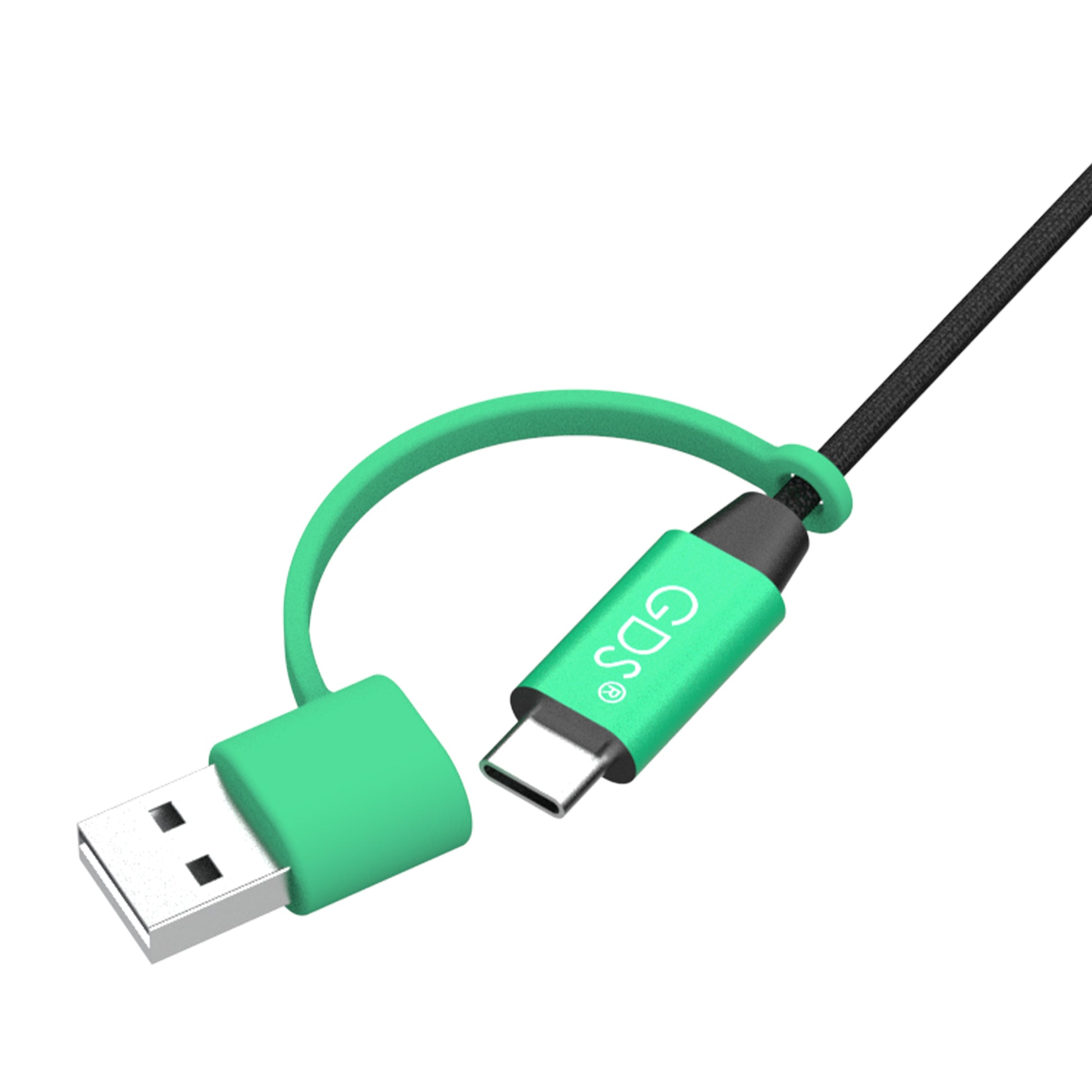

  • Output Connector: USB Type-C Male with USB-A Adapter
  • Output Cable Length: 1 Meter
  • Operating Temperature: 0°C to +40°C
  • Storage Temperature: -20°C to +80°C
  • Regulatory:
    • Over Current Protection
    • Short circuit Protection
    • Over Temperature Protection
    • RoHS Compliance
    • WEEE Compliance
  • Certifications:
    • IP67
    • SAE J1455
    • FCC Certification
    • CE Certification
    • E-Mark Certification
    • RCM Certification
  • Weight: 0.75 lb
  • Additional Information: The included wireless charger will support up to 8mm charging distance between puck and device.

Package Contents

  • 1 x RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU)
View full details

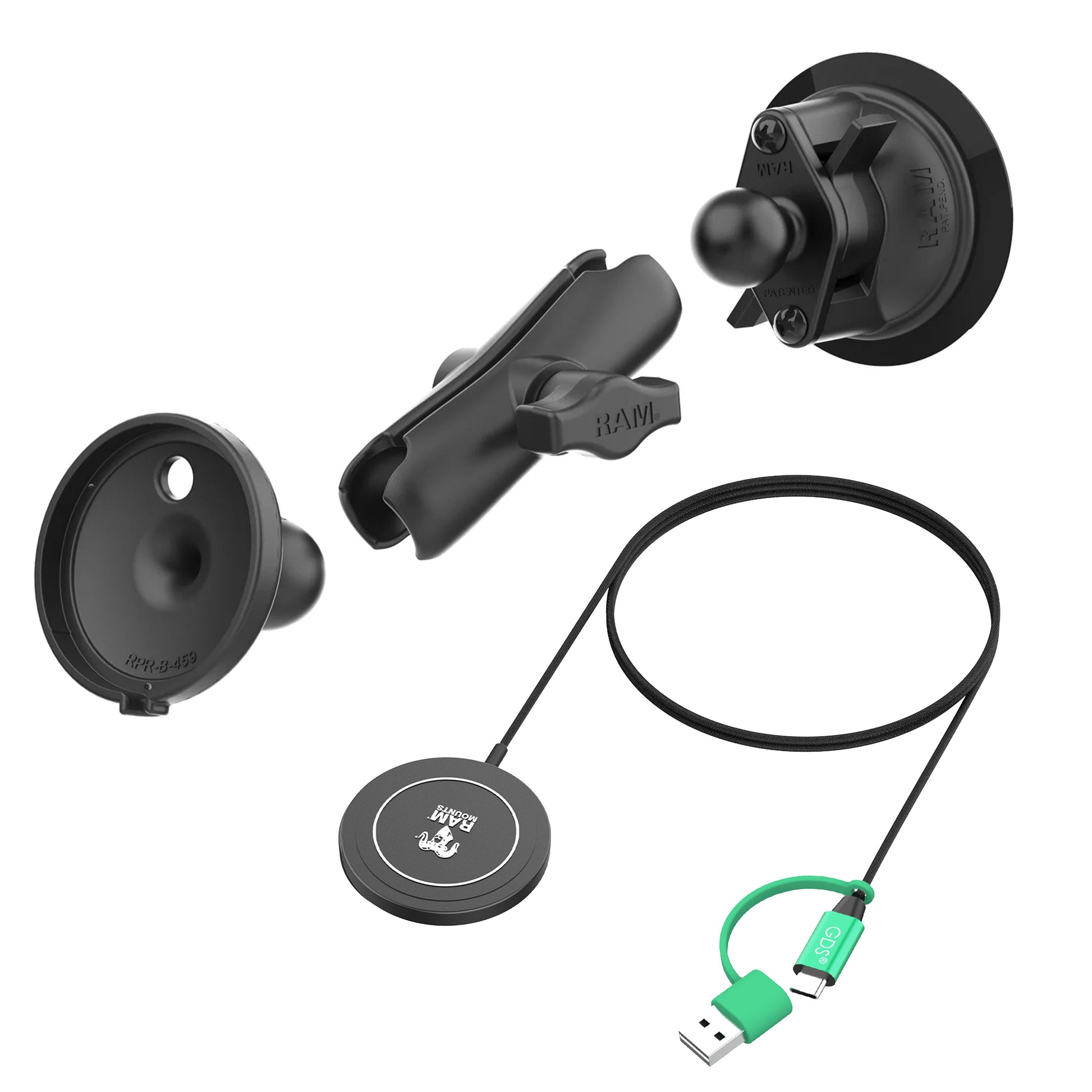

The RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just secure the Twist-Lock™ with the flick of a lever for a no-tools installation, it€™s that easy. This kit includes the RAM® Qi2 15W Wireless Charger, ball adapter, Twist-Lock™ suction cup base, and B size medium socket arm€”designed to secure to any non-porous surface like windshields. With IP67 waterproof protection and a durable woven USB-C cord, you€™ll get a reliable charge every time. Plus, harness your iPhone€™s MagSafe® magnetic charging for a seamless, secure connection, no fumbling with cables.
