Gamber-Johnson Tab Active5 Pro Docking Station with Bare Wire Lead

Gamber-Johnson Tab Active5 Pro Docking Station with Bare Wire Lead

7160-1418-00

*Special order. Please reach out to sales@strike.com.au to discuss your needs*

Features

  • Designed for the Samsung Galaxy Tab Active4 Pro/Active5 Pro 10-Inch rugged tablet with rugged case

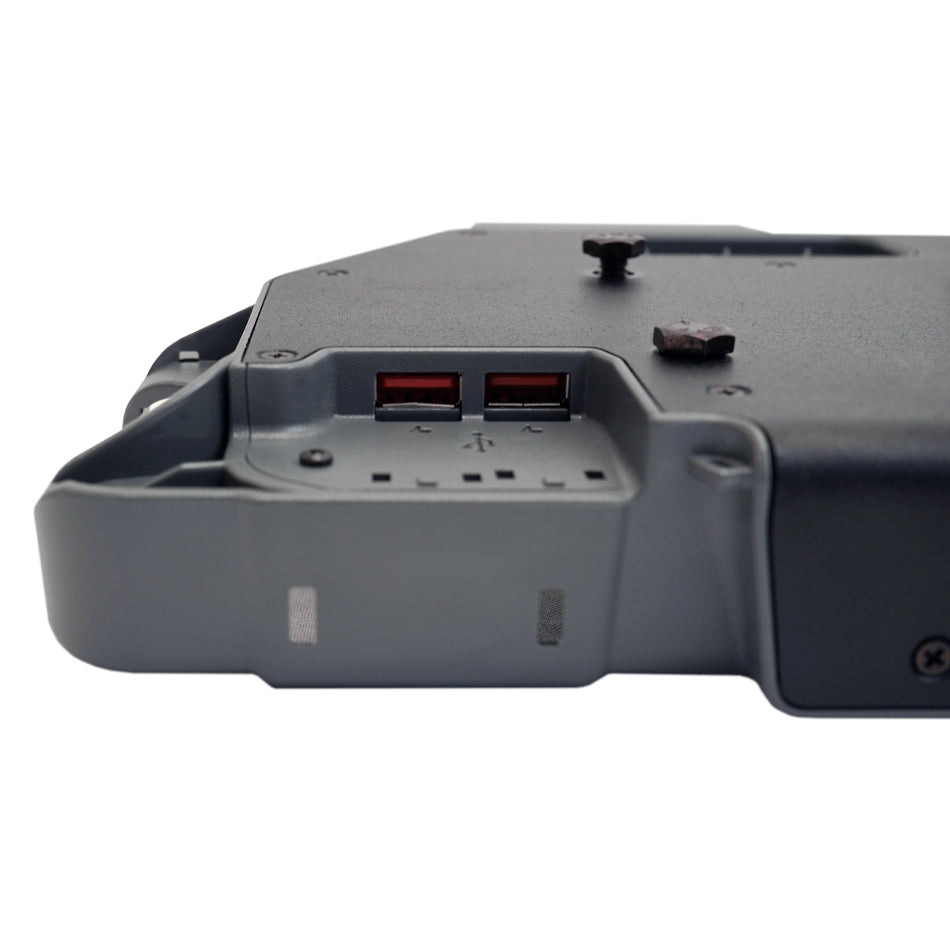

  • Dual powered USB ports; 1.5A for each port for connecting peripheral devices
  • 10-40V power input range to support a wide range of mobile applications
  • Access to all control buttons, camera, ports and stylus while the tablet is safely docked
  • Dock design is compatible with Samsung’s built-in Near Field Communication (NFC); scan NFC cards while the Samsung tablet is in the docking station
  • Simple, one-handed docking and release operation:
    • Insert the bottom of the Samsung tablet into the docking station and push the top of the tablet in until the lock engages.
    • Push the latch button up with your thumb, then remove the tablet from the docking station.
  • POGO pin connector and internal power supply provide power to charge the Samsung tablet while docked
  • Barrel Key lock for theft deterrence
  • VESA 75mm mounting pattern; compatible with Zirkona mounting products

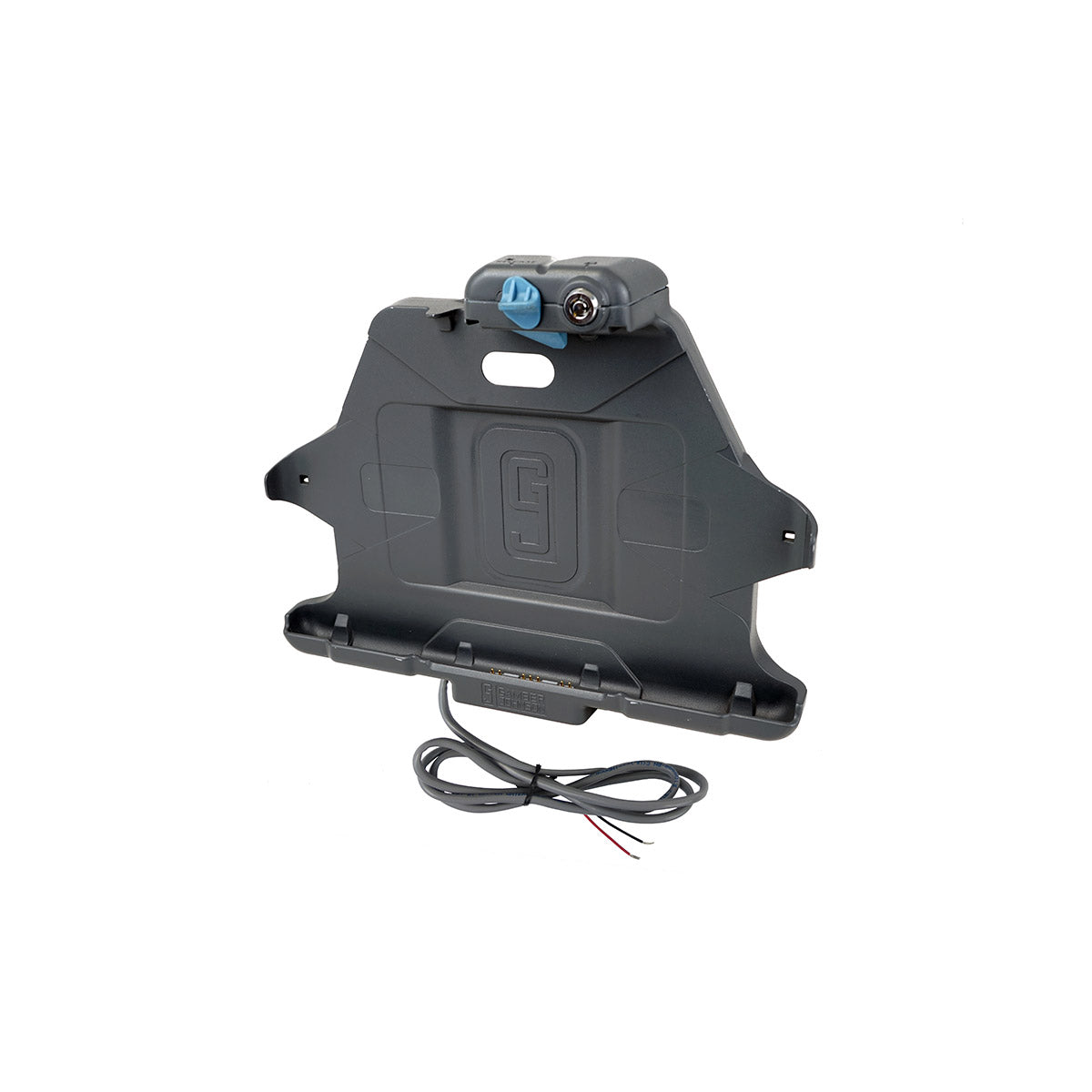

  • Approximately 66” (167.6 cm) power cable with bare wire end
  • Can be mounted on a flat vertical surface
  • Composite design for reduced overall weight

Tech Specs

  • Model Compatibility:
    • Samsung Galaxy Tab Active Pro
    • Samsung Galaxy Tab Active4 Pro
    • Samsung Galaxy Tab Active5 Pro
  • Device OEM: Samsung
  • Warranty:
    • 3-year Limited Lifetime Warranty
    • Extended Warranty/Gamber Guard Options Available
  • Port Replicators:
    • (2) USB 2.0 Ports – Each with 1.5A Power Output
  • Port Replication: Full
  • Antenna Pass-through: No RF
  • Device Type: Tablet
  • Industry Applications:
    • Logistics
    • Material Handling
    • Public Safety
    • Utility
  • Brand: Gamber-Johnson
  • Sub Type: Dock
  • Compatibility Notes:
    • Docking Stations Rev M and newer are compatible with the Tab Active5 Pro
    • Upgrade kit available for older docking stations – contact support for details
  • Compatible Accessories:
    • InfoCase FM-SNP-TABA5PRO Rugged Case
    • InfoCase FM-SNP-TABA4PRO Rugged Case
    • InfoCase FM-USHRN-KIT Harness Kit for Tab Active4 Pro

Package Contents

  • 1 x Gamber-Johnson Tab Active5 Pro Docking Station with Bare Wire Lead

Installation Guide

Extra Info

View full details

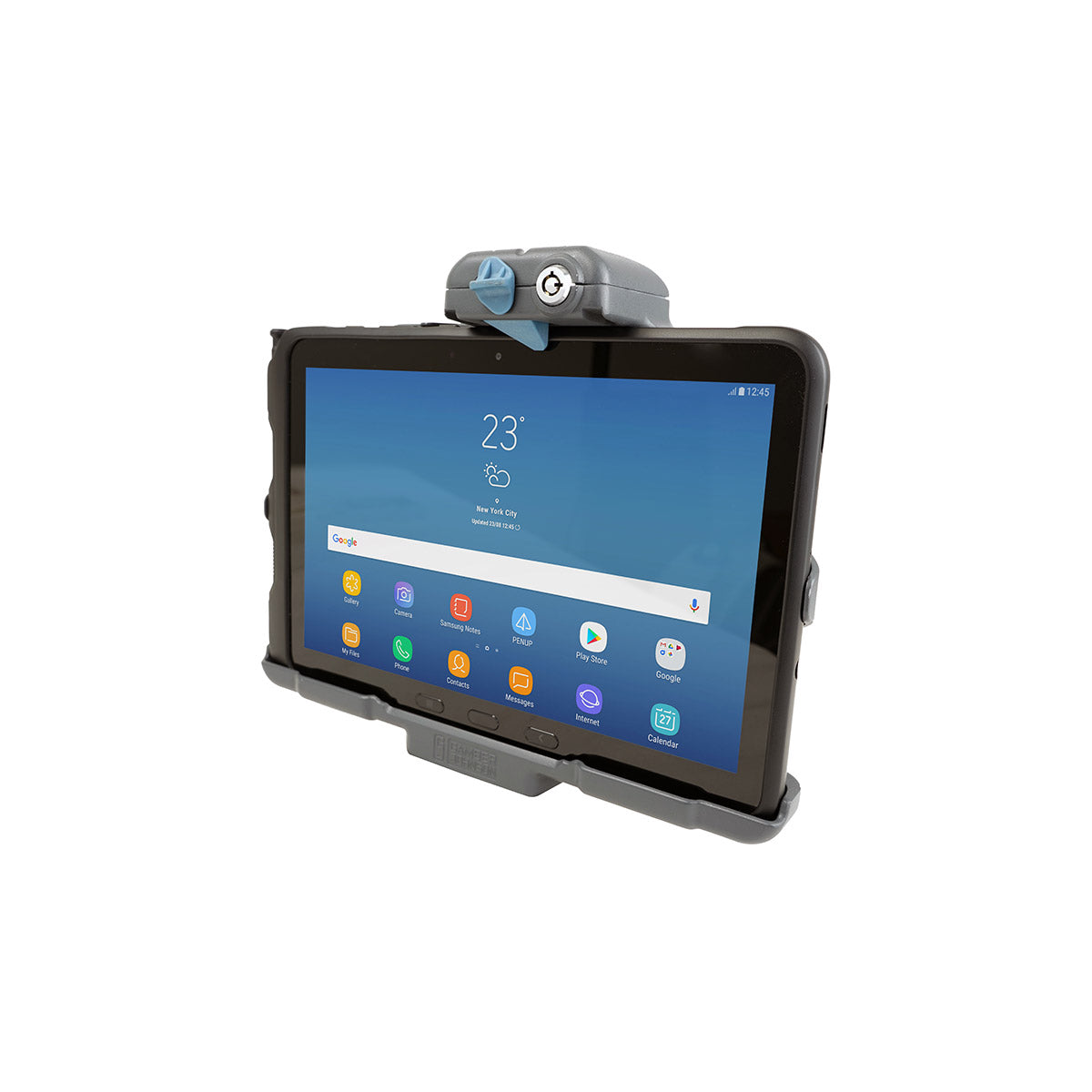

The Samsung Galaxy Tab Active5 Pro docking station features a POGO pin connection for data and charging capabilities. This dock accommodates the tablet with its OEM protective case. Includes bare wire lead for power input. The Samsung Galaxy Tab Active4 Pro/Active5 Pro docking station features dual powered USBs. Each USB port will deliver 1.5A of power with an integrated cable restraint system. The docking station is compact, has a keyed lock, and docking/release is a simple, one-handed operation.
