• GDS® 24-60VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V12U)

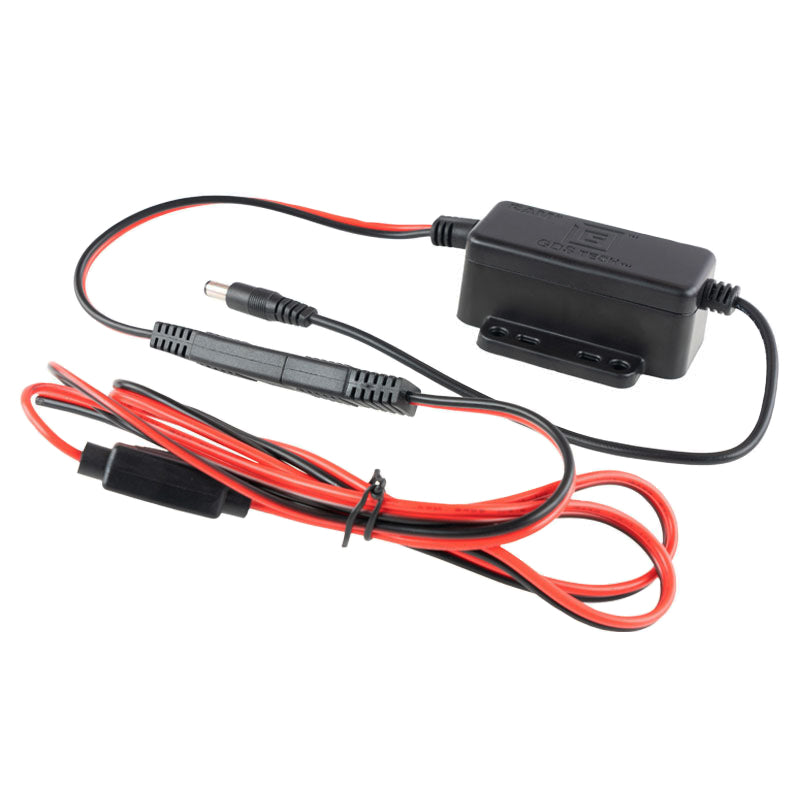

GDS® 24-60VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V12U)

GDS® 24-60VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V12U)

RAM-GDS-CHARGE-V12U

$66.00
$0.00 $66.00
Tax included.
Not what you need? See all RAM® Products here.

Features

  • Hardwire charger includes male 5.5mm barrel connector; 24V-60V DC input range, 19VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Tech Specs

  • Packaging Type: Poly Bag
  • Input Voltage: 24-60VDC
  • Output Voltage: 19V (+/- 300mV)
  • Output Current: 3.5A max
  • Input Connector: Male 5.5mm OD x 2.5mm ID Barrel Connector
  • Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
  • Output Cable Length: .2 Meters
  • Operating Temperature: -10 degree C to +70 degree C
  • Storage Temperature: -40 degree C to +70 degree C
  • Regulatory: Over Voltage Protection, Short Circuit Protection, Reverse Polarity Protection, RoHS Compliance, WEEE Compliance, SAE J-11 13-5 Load Dump (Transient Voltage), Moisture Resistant, FCC, CE, UKCA, IC, 3A Inline ATC Fuse 18AWG Copper Wire, IP66
  • Certifications: CE Certification, E-Mark Certification, RCM Certification
  • Warranty: 3 year warranty
  • Weight: 0.3 lb

Package Contents

  • 1 x GDS® 24-60VDC Input (19VDC Output) Hardwire Charger with Male DC 5.5mm (RAM-GDS-CHARGE-V12U)
View full details

The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 24-60VDC input, 19VDC output making it ideal for forklift mounts and material handling applications. Always Protected. Always Connected.®
